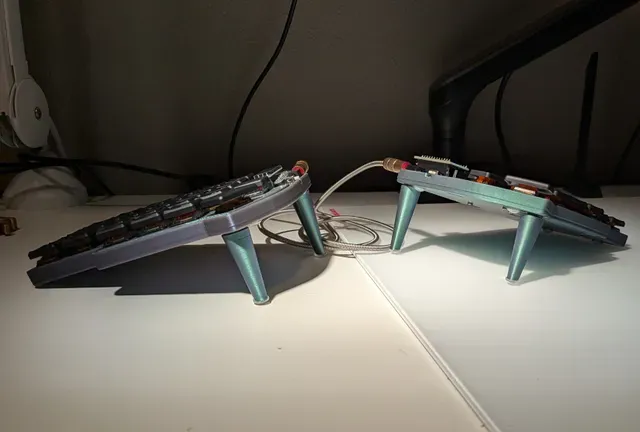

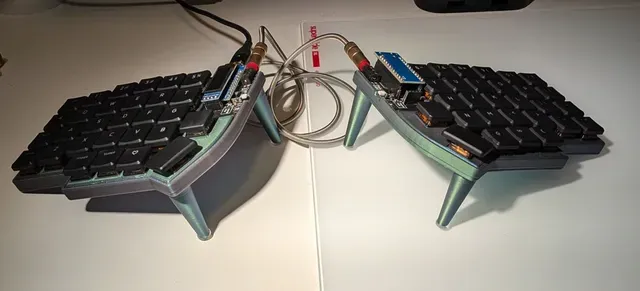

Lily58 Magnetic tenting for Gabbajoe's cases

Simple 15 degree tenting for the all of the cases for the Lily58 made by Gabbajoe .

These legs will work on all of the cases listed below. Low profile choc case splitkb Lily58 (The case i am using) Aurora Lily58 Choc low profile case (Fits both splitkb variant and some others) Aurora Lily58 MX Style switch case (MX version for of the case)

Printed without supports at .2 mm layer heigt and 10 % infill. Print 2 of each leg (4 in total) as there is a heigt difference to make the board stable.

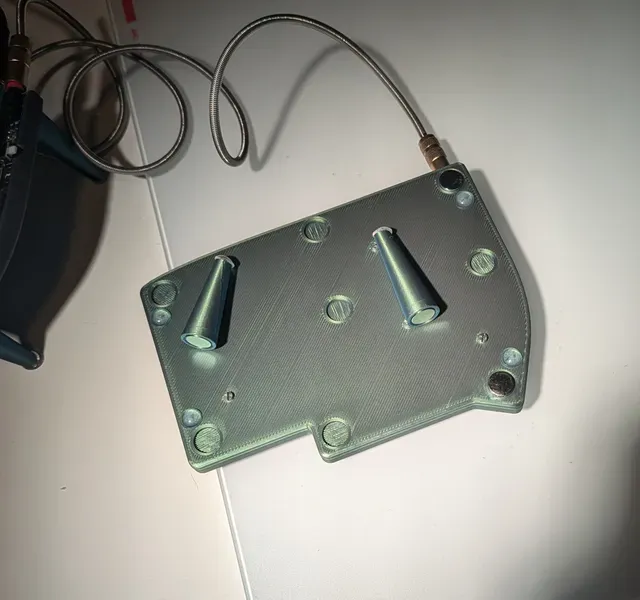

You will need 4 * 10x3mm magnets per half so 8 in total. I also added some rubber feet to the bottom, so the keyboard doesn't slip.

The magnets are pressfit on the tenting legs, for the ones that go in the case, I used a dab of superglue.
