Sovol SV08 Bambulab Hotend Support

I wanted to print my top hat in Carbon Fiber PETG so i needed a solution to be able to print PETG without being afraid to lose my nozzle and damage the printer and a hard nozzle to can print Carbon Fiber reinforced PETG

This is the design made by Stephi Dupont witch is great. i have just added heat set inserts because i didn't have square nuts.

I have used the thermistor and the heater that came with the bambu hot-end thanks to Adrian@3DPrintMasters that was kind enough to send the hot-end for testing

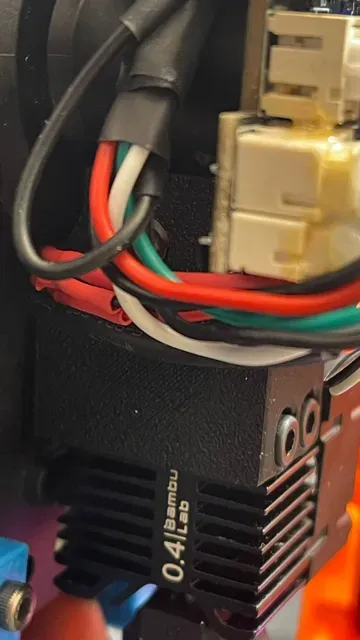

I had to increase the length of the thermistor and the heater wire. The thermistor uses 2 pin JST 1.25 connector and the heater uses 2 pin JST PH2.0 connector

I didn't need to modify the Z offset but it your case might vary so make a Z offset calibration after this mod.

Stephi said that you will need 27mm ptfe tube but i had to cat it shorter. didn't measure it after. but it was less than 12mm you need to see. i have used capricorn tube 1.9mm ID and 4mm OD
