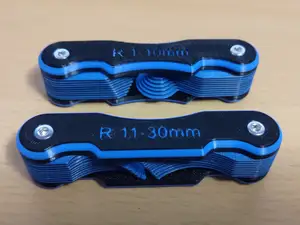

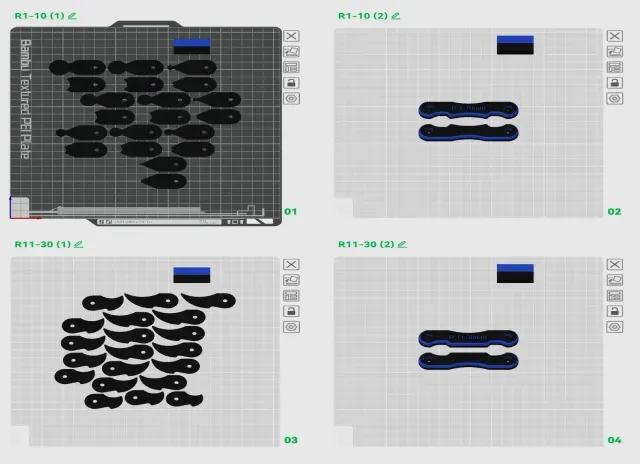

Radius gauges 1-10mm & 11-30mm (.3MF > .STL Conversion)

Original descriptions per Jaha :

[1mm-10mm]

Radius gauge for measuring inner and outer fillets from different parts.

Assembly:

For Metric:

- 2x M4x25 Countersunk screw - 2x M4 nut (Nyloc preferred) Lazy way:

- Key ring or string to hold everything together Printing:

- 0,2mm first layer - Rest 0.15mm - Use brim for the smallest, if the tip does not stick properly. Bigger one should be fine

[11mm-30mm]

Radius gauge for measuring inner and outer radius from objects.

Assembly:

For Metric:

- 2x M4x25 Flathead screw - 2x M4 nut (Nyloc preferred) Lazy way:

- Key ring or string to hold everything together Printing:

- 0,2mm first layer - Rest 0,15mm - Use brim, if problems, for me it was fine without
