Squash ball feet for 4040 Al extrusion (Ender 3 V2)

These files are for Personal Use Only . If you would like a Commercial License to sell prints made from these designs, please join me on Patreon : https://www.patreon.com/kazitoad

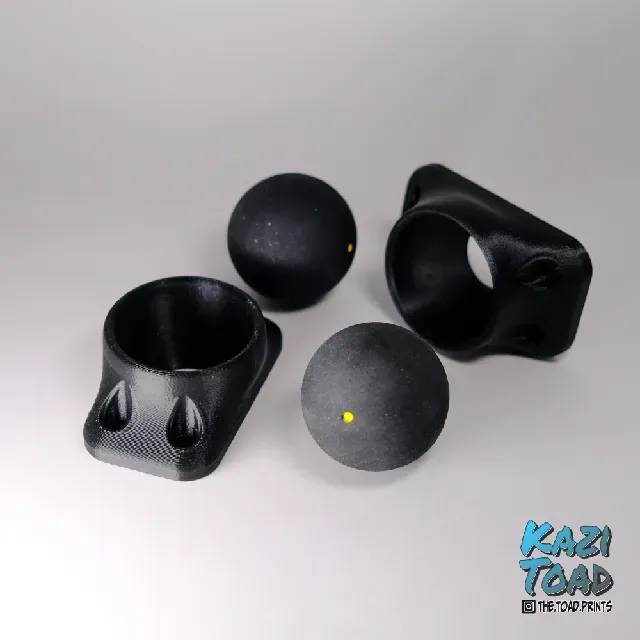

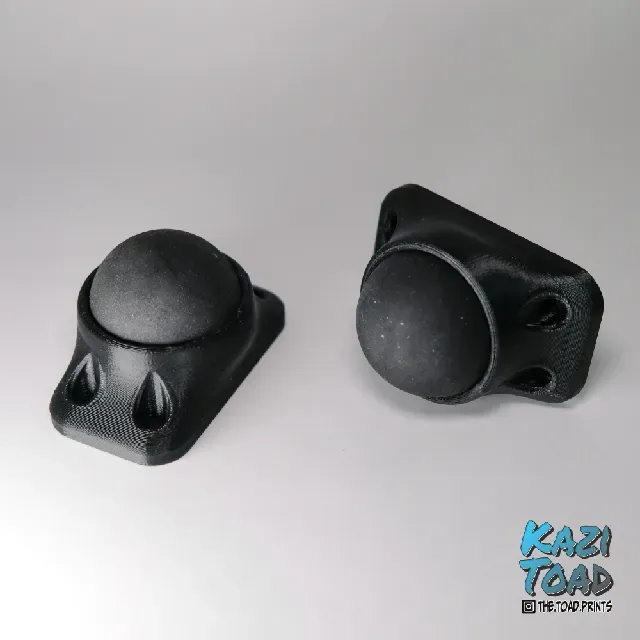

These mounts are designed to use standard yellow dot (or double yellow dot) squash balls to act as dampening feet for your 3d printer.

They can be used on any machine that uses a 4040 aluminum extrusion (such as the Ender series) . Each foot needs 4x M4 x 10mm bolts, 4x M4 anchors and 1x squash ball.

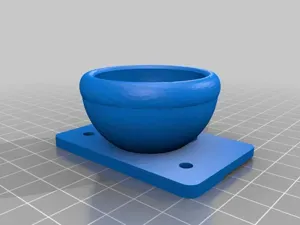

There are also two models ("back right" and "back left") that are specifically designed for the Ender 3 V2. These two account for the power supply flange and screw heads that would otherwise be in the way.

They should be printed flat side down, the regular feet should be printed without support but the modified ones need a bit.
