Neptune 3 Pro/Plus/Max BTT SFS 2.0/2.1 holder
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC0
- Общественное достояние: можно печатать, изменять и продавать без указания автора.
- Форматы
- STL
- 8 Лайки
- 28 Загрузки
- 0 Напечатали
- 1 Комментарии
- 353 Просмотры
Описание

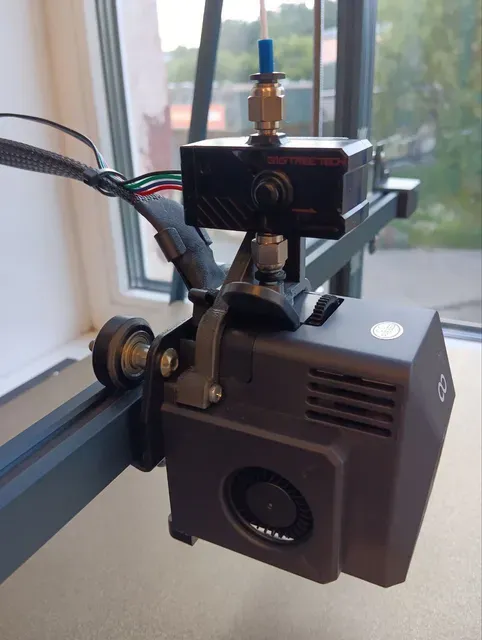

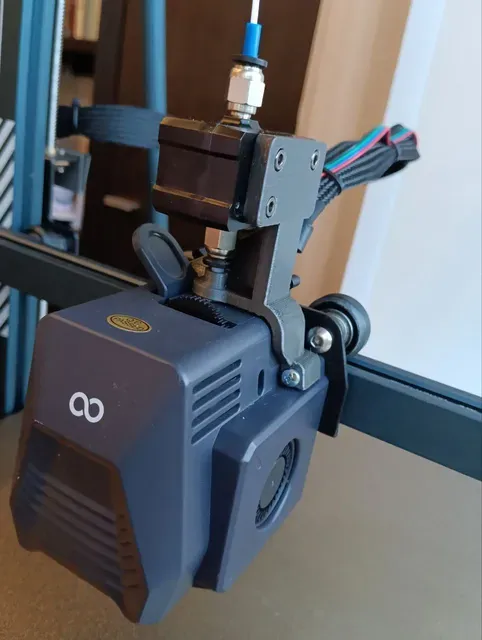

The printed part is secured with the original 2 screw mounting holes on the extruder housing. Required 2x longer screws M3x20.
Klipper host: Orange Pi 3 LTS. GPIO pins: PL02, PL08.
[mcu host] serial: /tmp/klipper_host_mcu
[filament_motion_sensor motion_sensor] switch_pin: host:gpiochip0/gpio2 detection_length: 5.76 extruder: extruder pause_on_runout: True runout_gcode: MOTION_SOUND {action_call_remote_method("notify", name="my_telegram", message="Motion sensor alarm!")}
[filament_switch_sensor switch_sensor] switch_pin: host:gpiochip0/gpio8 pause_on_runout: True runout_gcode: SWITCH_SOUND {action_call_remote_method("notify", name="my_telegram", message="Switch sensor alarm!")}
