Voron v0 Thicc Matchstick Diffuser for Siboor Daylight Disco On a Stick PCB

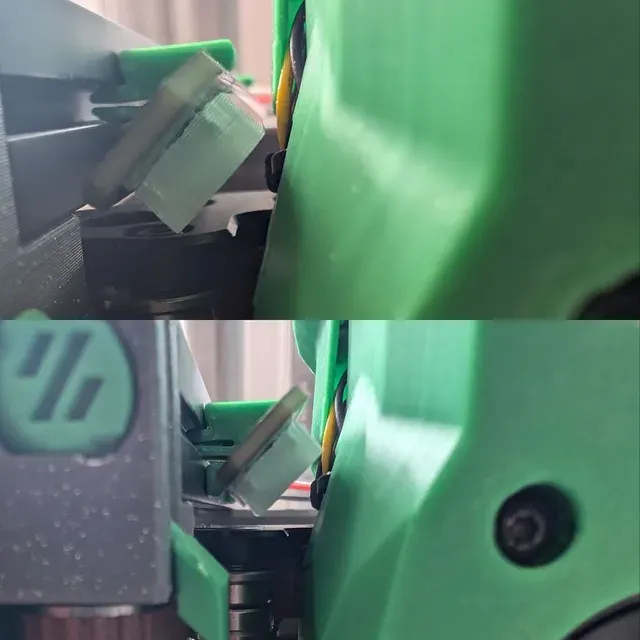

I got the same led bar from Siboor as the creator but I wanted an even stronger diffusion, total height is 4 mm, adding a photo with clearence on my printer, mileage may vary. If the diffuser doesn't sit flush on the pcb you need to snip off the connector pins end that stick out from the soldering holes. Printed in Overture “transparent” PETG.

I used this mount to install the lights on the printer but if you keep the XH connector you'll need to cut a bit of the connector's corner itself otherwise it hits the extrusion preventing the mount to snap in.

Can print two diffuser at the same time on a voron0 if positioned diagonally on the bed, if lazy just download the Thicc_Diffuser_X2 that's already oriented in the correct position. I'd suggest to use supports just to make the screw holes nicer
