Banana Pi BPI-R4 Rack Mount Module

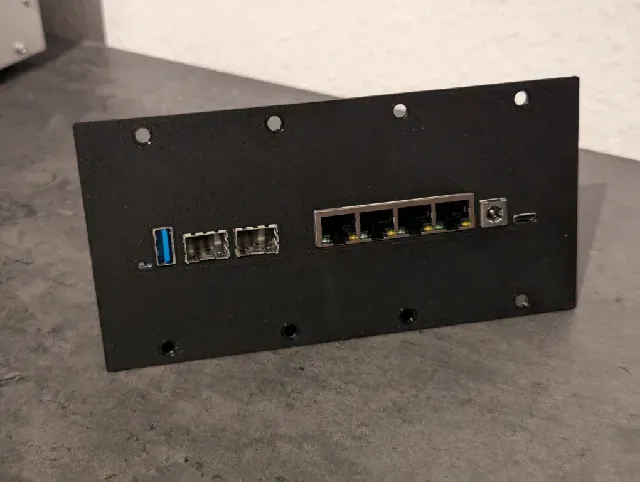

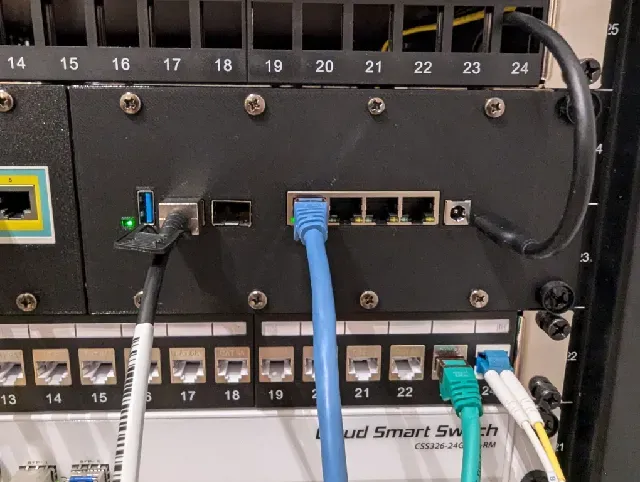

The Banana Pi BPI-R4 is an inexpensive, very powerfull 10G router. To mount it in my homelab server rack I designed this module for the DAP 2U Rack Mount Panel .

It has a small hole to the left of the SFP+ ports, so you can see the SFP status LEDs.

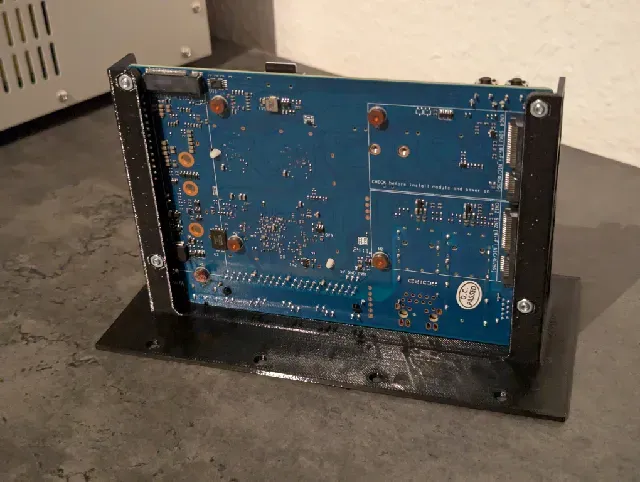

If you want to use a M.2 Key M module (e.g. a NVME SSD), you should install this before screwing the board to the printed module. Other than that, there shouldn't be many restrictions when using this module.

Printing instructions

I recommend printing this module in PETG or another filament with good layer adhesion. No supports required.

Non-printed parts

- 4x M3x10mm Screws - 4x M3 hex nuts
