SV08 + Beacon3D Rev H mount

Updates

Aug.13.2024: Fully working on stock hardware and even stock firmware! You'll need to hide some .py files to make the [probe] cfg errors go away. I followed this discord user's instructions successfully.

______________________________________________________________________________________ Summary

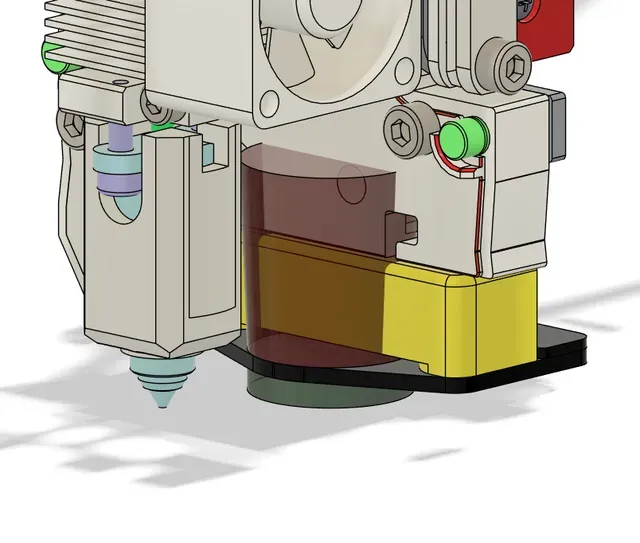

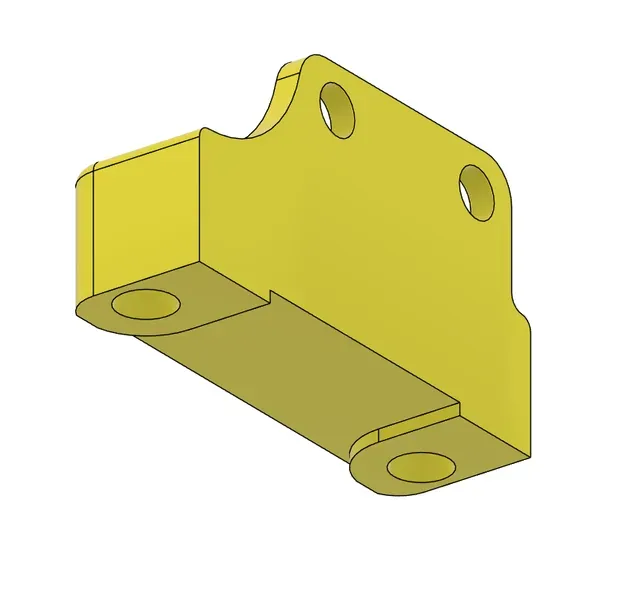

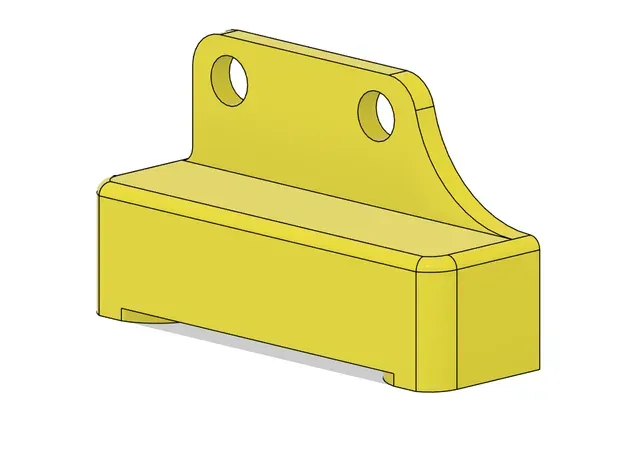

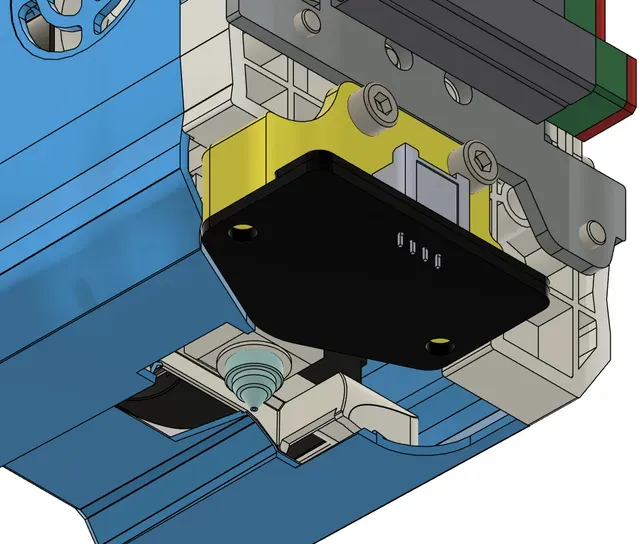

I want to use the Beacon3D Rev H sensor on my SV08 so I made this mount for it. This adapter will require the removal of the rear parts fan as well as some cutting of the toolhead cover . I am not responsible for any damage this causes and it is up to you to determine if this is a good idea. _______________________________________________________________________________________________

Hardware

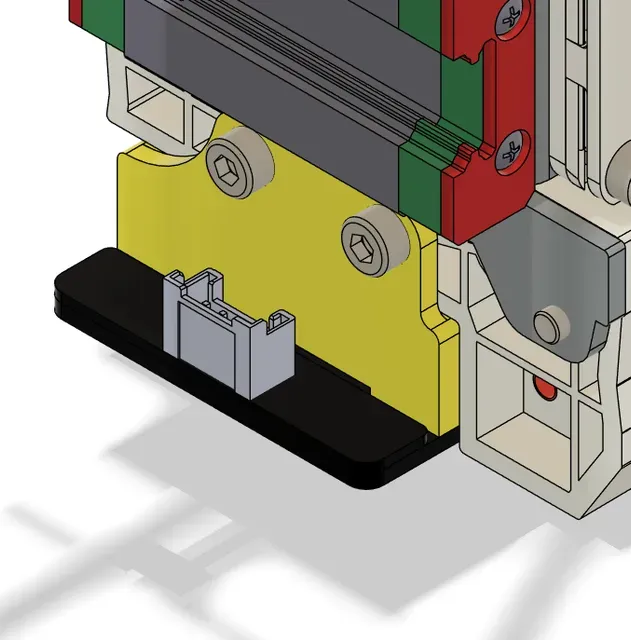

- Beacon3D Rev H (standard) - M3x8mm BHCS x 2 - M3 Heatset Insert (5mm OD) x 2 _______________________________________________________________________________________________

Print settings

I recommend printing this out of a heat resistant and rigid material. I chose ABS-CF. Use Voron parts settings for good strength. I am using 4 walls and 20% cubic infill.

_______________________________________________________________________________________________

Config changes

I'm pretty sure I covered everything below, but make sure to follow the official documentation closely and look at any errors you get to know what needs to be changed.

https://docs.beacon3d.com/quickstart/

This is what I currently have in my beacon.cfg . Basically just matches what I set for my V2.4:

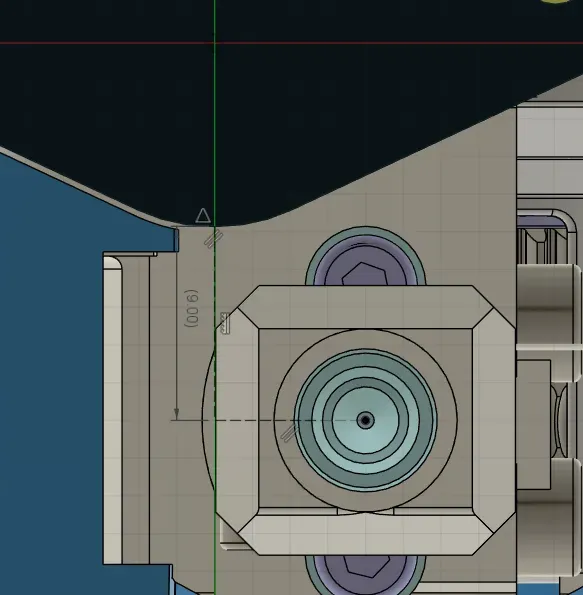

============================================ [beacon] serial: /dev/serial/by-id/usb-Beacon_Beacon_RevH_ [this will be unique to your device] -if00 x_offset: -7 y_offset: 19 mesh_main_direction: x mesh_runs: 2

[safe_z_home] home_xy_position: 175, 175 # update for your machine z_hop: 3

[bed_mesh] speed: 300 horizontal_move_z: 12 mesh_min: 40,44 mesh_max: 310,314 probe_count: 30,30 algorithm: bicubic bicubic_tension: 0.4 split_delta_z: 0.016 mesh_pps:4,4 adaptive_margin: 5 fade_start: 0 fade_end: 10 fade_target: 0 zero_reference_position: 180, 180 ============================================

In printer.cfg:

You must comment out the [probe] , [probe_pressure] , [homing_override] , and [bed_mesh] sections in your printer.cfg. Note: Only comment out [bed_mesh] if you put a new one in your beacon.cfg, otherwise just edit it.

============================================

[quad_gantry_level] gantry_corners: -60,-10 410,420 points: 50,29 50,279 300,279 300,29 speed: 300 horizontal_move_z: 12 retry_tolerance: 0.0075 retries: 7 max_adjust: 10 ============================================
