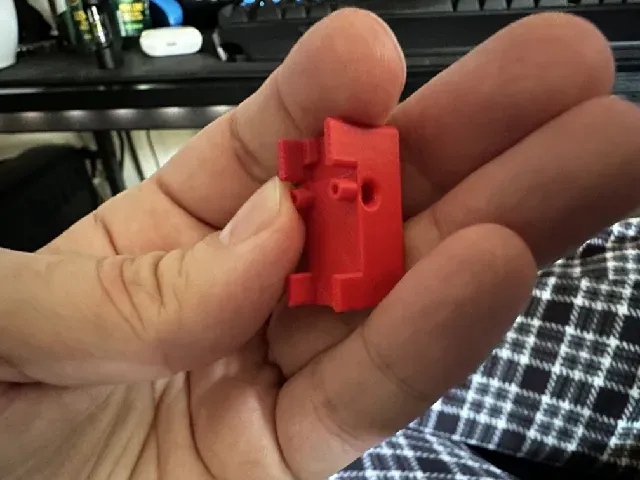

BTT Eddy SV08 Mount

UPDATE 8/30/24: I spent a lot of time with calipers, and a crooked neck, to measure out the probe offset values. What I came up with/found was: X = -16 Y = 10.5

Please do yourself a favor and perform some sanity checks to make sure your offsets match. I cannot guarentee your mount will mount the exact same way mine did. Your offset could be .5 off. So please check.

Thank you

ALL CREDIT GOES TO THE ORIGINAL CREATOR. THIS IS A COPY/PASTE OF THEIR PAGE:

"Huge bed with an inductive probe that's temperature sensitive?? No thanks!! BIGTREETECH's new EDDY sensor comes to the new Sovol SV08! Easy replacement for the original probe, but does require disassembly of the BTT Eddy probe to re-house the board; might be good to add a small heatsink onto the RP2040 chip as a result. CAD available here!

Recommended printed out of ABS/ASA for temperature resistance, print with the logo facing the bed, 3 walls, 0.1 layer height, with auto supports (for the lil dangly bit). You'll also need some teeny screws so [here's an affiliate link for a nice kit!] ( https://amzn.to/4aSc7Hz ). M1.7x4mm should work, and it's aways good to have more hardware on hand.

Update: added the STEP files of the case/PCB that I had to recreate in part for this model. Feel free to use em, CAD's in Onshape here: https://cad.onshape.com/documents/6cbf60e4103aaa5deed66867/w/2d6c64846d93a5045a62152f/e/048ed866265d810353a37313 "
