Filament spool holder for dry box

Update: Version 2

The dry boxes of my dealer ( Princore ) are sold out very often. So I decided to "remix" my own one.

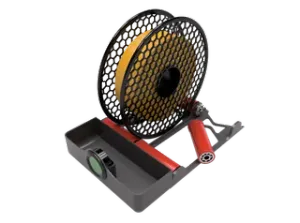

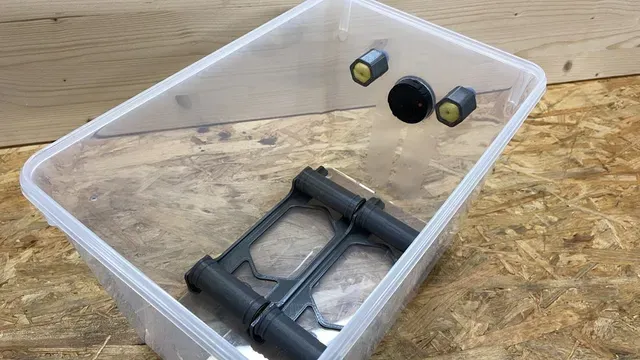

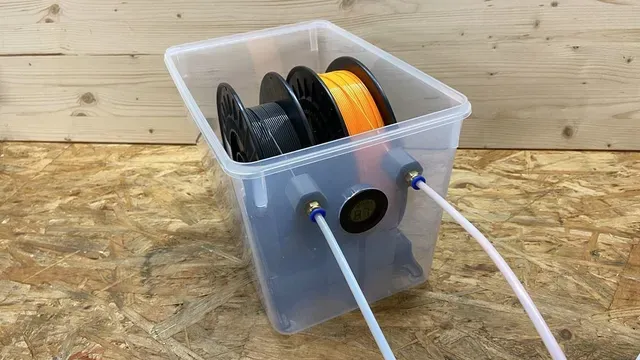

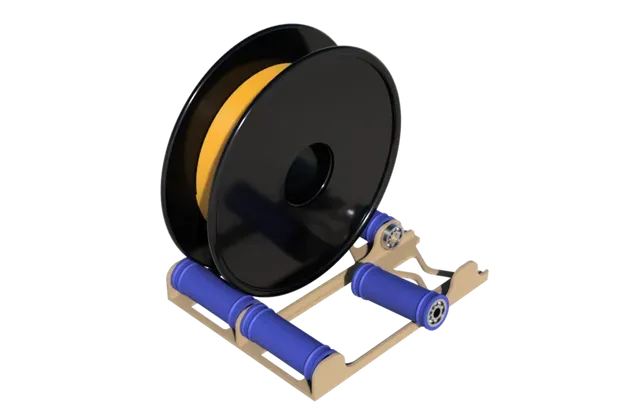

Therefor I designed a holder, a roll and a cleaner with a screw connection. The holder fits in a clip box (link below) or in the IKEA 365+ box (10.6 l). To control the huminity I built in a digital hygrometer.

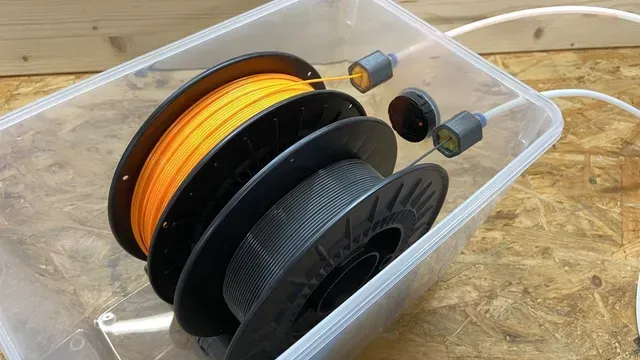

It's designed for two filament spools (diameter: max. 200 mm, width: max. 67 mm). The spools on the picture have a width of 54 mm (fits between the guides on the rolls).

Part list:

- Clipbox (Amazon) - Bearings 608 (Amazon) - PTFE Tube (Amazon) - Digital hygrometer (Amazon) - Push in fitting 6mm 1/8" PT (Amazon) for drying: - Organza bags (Amazon) - Silica Gel (Amazon) The STL of the holder is an optimized version. On the pictures you see the first version. Have fun with it or remix it. Of course you can also use it without the box. ;)

Costs (per box): approx. 34 €

If you want to save time, you also can buy the original ones
