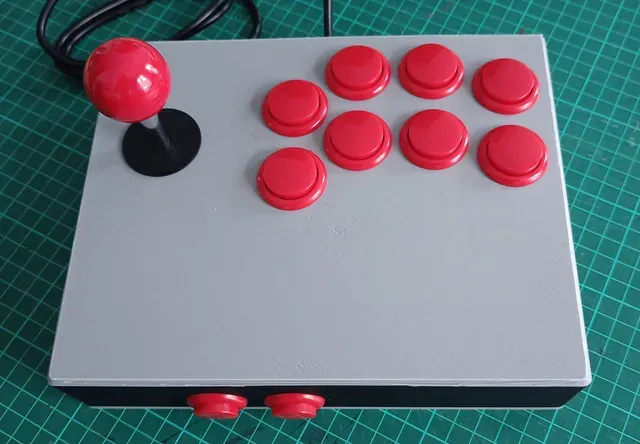

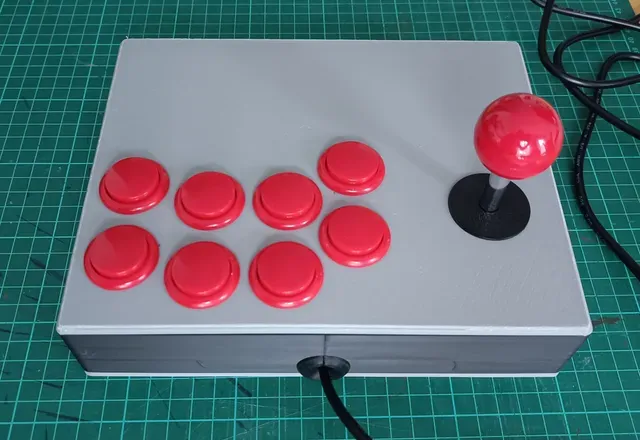

Arcade joystick

Arcade joystick with no visible screws.

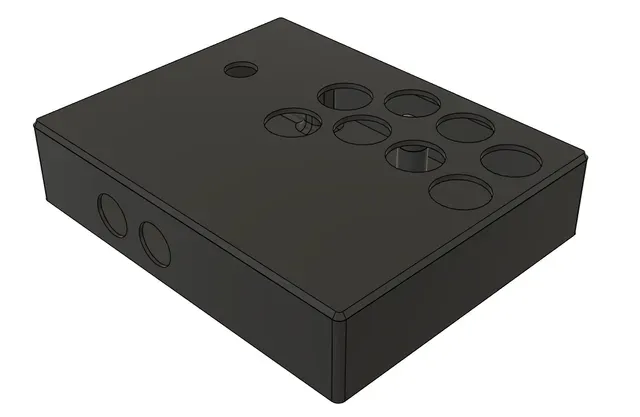

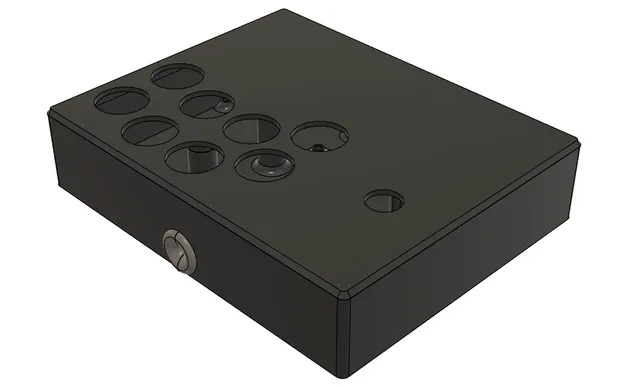

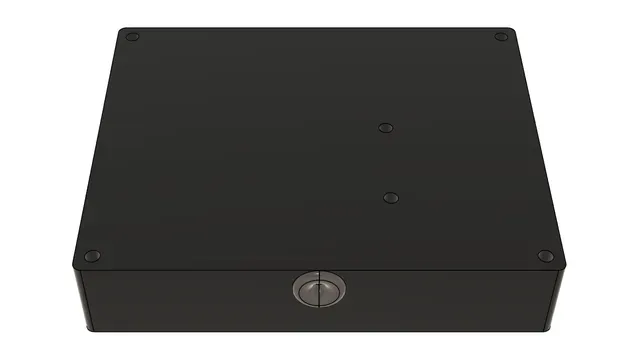

Created to have no visible screws, minimum assembly and additional materials and some and room to rest your hands when you use it.

Size : 225 x 180 x 49 mm

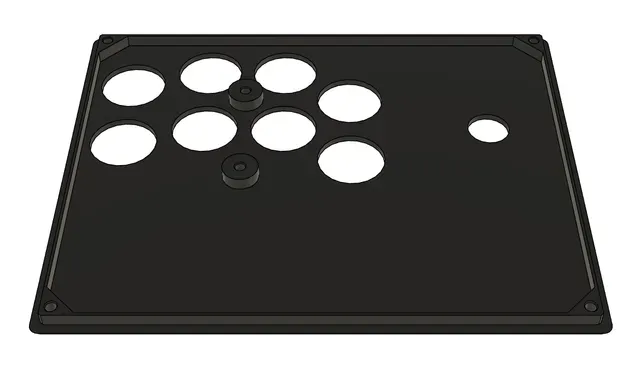

Buttons layout : Standard non-slanted Japanese arcade layout ( Slagcoin.com )

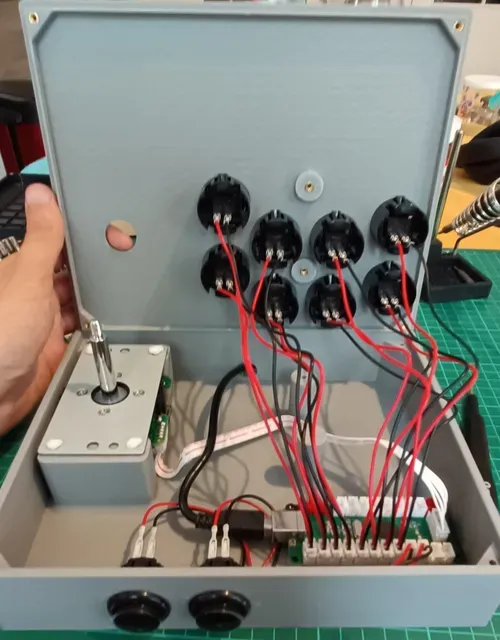

Work with an arcade joystick type Sanwa JLX-TP and 8x 30mm + 2x 24mm sanwa type buttons.

Bill of Materials

- 1x : joystick (type Sanwa JLX-TP) - 8x : 30mm buttons (type Sanwa OBSF-30) - 2x : 24mm buttons (type Sanwa OBSF-24) - (I use a kit lookalike/copy “sanwa” like this , mine have a USB type B socket on PCB, this one )

- M3 insert (minimum x7) - M3x14 screw (minimum 4x to assemble box+panel) - M3x6 screw (minimum x2 for the PCB/encoder) - M4 insert x4 - M4x6 screw x4

Printed with 0.4mm nozzle and 0.24mm layer height

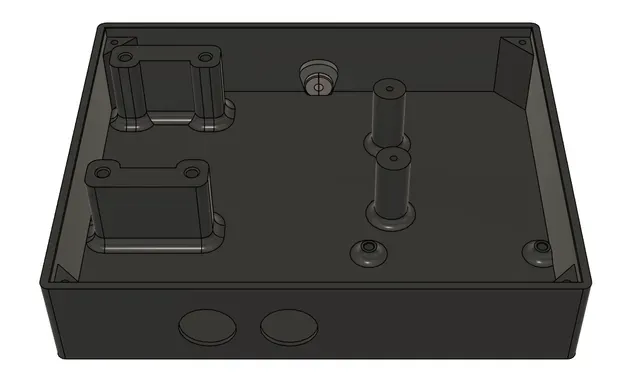

Box : Use organic supports for screws holes (easy remove by just push it out)

– STEP file added to adjust for your inserts/screws or buttons
