Leverless Controller - Sanwa buttons

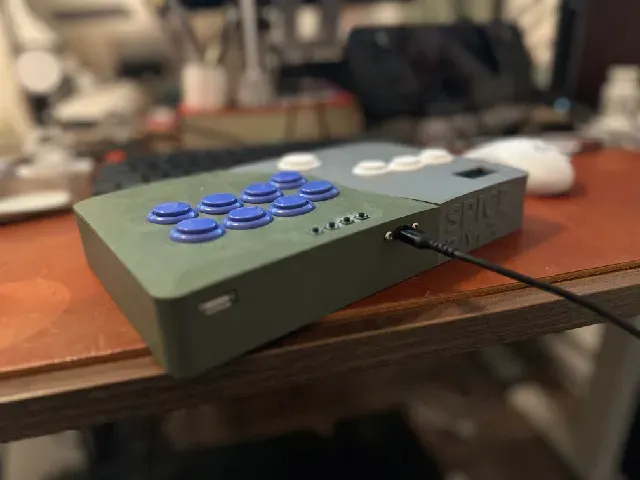

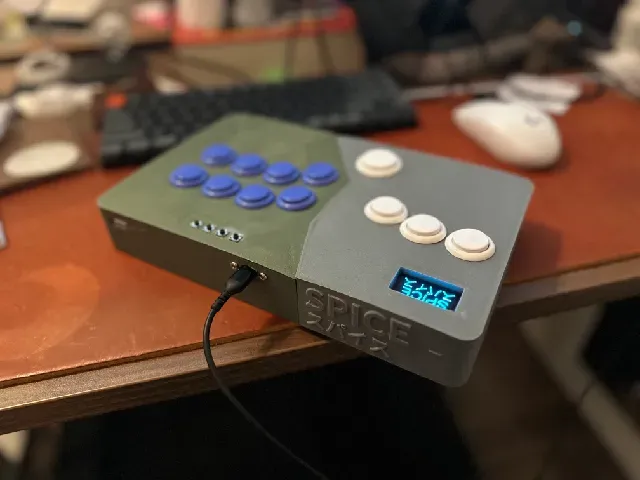

An RP2040-based, 12-button (w/ 4 push buttons) leverless pad w/ Sanwa arcade buttons + OLED screen and USB passthrough.

It was built with GP2040-CE in mind ( Github , Main site ), and designed to be printed on smaller beds with a max size of 157mm x 170mm x 40mm.

Parts used

Components

1x 1.3" OLED I2C screen: https://amzn.to/4dKr545

1x Sparkfun USB A passthrough (BOB-12700) : https://x2robotics.ca/sparkfun-usb-type-a-female-breakout

1x Raspberry Pi Pico: https://amzn.to/3yZbwq3

→ Could be swapped for a board with USB-C onboard (screw holes should match): https://amzn.to/4cScnqa

1x USB panel mount

→ If raspberry pi w/ micro USB: https://www.adafruit.com/product/4056

→ if RP2040 w/ USB C: https://amzn.to/3yZ8GBn

10x Sanwa OBSF-24mm buttons (clones may fit differently, your call)

1x Sanwa OBSF-30mm button (clones may fit differently, your call)

4x 6x6mm push buttons—like these: https://amzn.to/3XcTR68

Screws and magnets

6x M3x12mm + nuts (for part joins)

8x M3x4mm (for screen and USB passthrough

2x M2x4mm (for Pi/RP2040)

8x 10x5mm neodymium magnets

Notes

The photos of the wiring are an earlier version of the model that had a different features (magnet placement, join placements and no backing on the push buttons).

Print settings

Layer size: 0.1mm, first layer 0.09mm

Material: Regen PHA @ 210ºC first layer, 205ºC other layers

Bed temp: 20ºC

Speed: 40mm/s

Prints with minimal supports (mostly on the magnet holder on the top left/right parts) and the USB passthrough (depending on how good bridging is on your machine).

Inspiration

I was heavily inspired by other leverless controller options here, mostly this one and this one . But, I wanted a combination of the two, and a USB passthrough to work on PS4/5 and Xbox One/Series.
