Prusa MK4(S)/MK3.9(S) accelerometer holder

I have created this model for my MK4 accelerometer, so it can stay permanently connected and parked in some safe space.

The holder consists of two parts connected together and put on the xBuddy box (it fits right into the two holes and stays nicely in place). You can then easily slide the original accelerometer in and out from this holder.

I don't tested this, but should work also with MK4/S, MK3.9 and MK3.9/S.

This model is designed, to be used with this original accelerometer set: https://www.prusa3d.com/product/accelerometer-set/

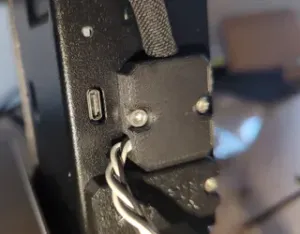

Recommended use with Accelerometer cable cover (for non-S printers)

For usage with non-S versions I recommend using this cable cover: https://www.printables.com/model/997610-prusa-mk4mk39-accelerometer-cable-cover

Installation

- Print the preferred version of the holder. There are two: - simple version - version with cable hook for use with 60° heatbed cable modifications

You need to print the selected version of HolderBase and also the Clip (which is universal). The Clip should be printed with support for the middle part, the rest is printed without supports. You can use prepared 3mf files for slicing.

- Slide the two pieces together:

- There's a little lock on the end, so don't be scared to push a little harder until it clicks. View from the other side:

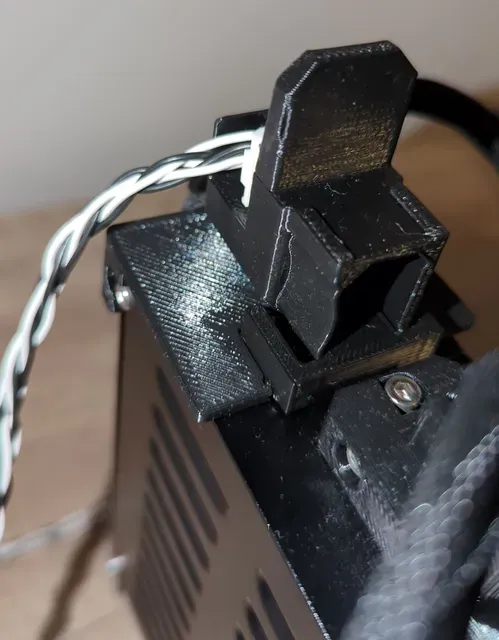

- Put the whole holder on the xBuddy box a push it into the two holes - it should be fixed in place:

- The installation is complete and you can slide the accelerometer into the holder:
