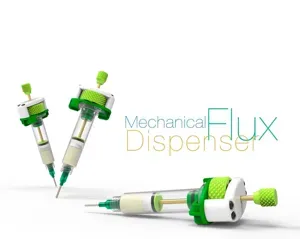

<h2>Mechanical Flux Dispenser</h2><div><font size="2">The <a href="https://go.like-it.link/gYNQo" target="_blank" rel="noopener noreferrer">previous version of the dispenser</a> turned out to be quite a popular tool, but in the process of work in recent years, claims to it have accumulated :) Or rather, to the work process. For example, solder paste needs to be stored in the refrigerator, and I also pack it mainly into small syringes. And you do not need a lot of solder paste when working with small soldering. Yes, and it is not possible to push through a large amount of paste from a large syringe normally. So this time I made a 5CC syringe dispenser.</font><br><br></div><div><font size="2">In principle, this model was not planned at all, since I am now working on an electric dispenser, but suddenly I realized that such a design also has a place to be. Moreover, it did not take much time. YOU will learn about the electric flux and paste dispenser in due time, when I finish working on it, and there is no battery yet, there is more on the way ...</font><br><br></div><div><img src="https://like-it.link/02234/mechanical-flux-dispenser-1.jpg"></div><div><font size="2">As you can already see that there are almost no printed parts, well, a bit at all, since I took a very reliable syringe adapter for a pneumatic dispenser as a basis. By the way, you can't work with a pneumatic dispenser for little things either, while pumping up the compressor, while adjusting the flow, etc. Well, in general, that one is for prototypes and small, very small works. But for the little works you need this ...</font><br><br></div><div><font size="2">Anyone can probably collect it, there is only a small note, and perhaps a very important one! The O-ring of the piston needs to be cut into a small groove for air passage when installing the syringe. That's all :) How and how to drill and cut - I'm sure you know :)</font><br><br></div><div><font size="2">Only a few photos from the materials that are being prepared for the next project on the specifics of preparing the adapter. This procedure is not much different, except for the depth of the bearing holes. (Drawing in the project archive). The material is perfectly processed, polished, drilled and carved is also excellent ... However, in the next publication there will be all the details, and this is just "a little distracted"...</font><br><br></div><div><img src="https://like-it.link/02234/mechanical-flux-dispenser-2.jpg"><br><br></div><div><img src="https://like-it.link/02234/mechanical-flux-dispenser-3.jpg"><br><br></div><div><img src="https://like-it.link/02234/mechanical-flux-dispenser-4.jpg"><br><br></div><div><img src="https://like-it.link/02234/mechanical-flux-dispenser-5.jpg"><br><br></div><div><img src="https://like-it.link/02234/mechanical-flux-dispenser-6.jpg"></div><div><br></div><div> <a href="https://go.like-it.link/oPVUY" target="_blank" rel="noopener noreferrer"><img src="https://like-it.link/02234/flux-dispenser-magnetic-cap-1.jpg"></a> </div><div><br></div><h5>See the video for details:</h5><div> <a href="https://youtu.be/mRpI5v2jNnY" target="_blank" rel="noopener noreferrer"><img src="https://like-it.link/02234/mechanical-flux-dispenser-youtube.jpg" class=""></a> </div><div><font size="2"><b><font color="#008000"><br>If you liked this thing - let me know by putting like!</font></b><br></font></div><div><br></div><h3>Parts links below:</h3><div><ul><li><font size="2"> <a href="https://go.like-it.link/9qVbl" target="_blank" rel="noopener noreferrer">Syringe Adapter 5cc</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/QWDD1" target="_blank" rel="noopener noreferrer">Industrial Syringe 5CC</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/GWwtV" target="_blank" rel="noopener noreferrer">Steel Dispensing Needles Tips</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/w993b" target="_blank" rel="noopener noreferrer">Threaded Rod Brass M3 </a> </font></li><li><font size="2"> <a href="https://go.like-it.link/PX0QF2" target="_blank" rel="noopener noreferrer">Bearing F693ZZ</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/UtR44" target="_blank" rel="noopener noreferrer">Axial Thrust Ball Bearing F3-8M</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/0ewXl" target="_blank" rel="noopener noreferrer">Button Head Screw iso7380 M2 or M2.5</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/MQeN3" target="_blank" rel="noopener noreferrer">Insert Knurled Nuts M2-M3</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/nXhko" target="_blank" rel="noopener noreferrer">Black O Ring Gasket CS 2mm OD 9mm</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/pSnCk" target="_blank" rel="noopener noreferrer">Silicone O-Ring Gasket CS 2mm OD 9mm</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/bN7FP" target="_blank" rel="noopener noreferrer">Luer Lock Adapter Coupler</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/p2111" target="_blank" rel="noopener noreferrer">Flux NC-559-ASM 100g</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/KrsFq" target="_blank" rel="noopener noreferrer">Soldering Flux AMTECH NC-559-ASM</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/8iF9t" target="_blank" rel="noopener noreferrer">XD-Z40 No-Clean Mechanic Solder Tin Paste</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/ENXk9" target="_blank" rel="noopener noreferrer">TopZeal Filament ABS</a> </font></li><li> <a href="https://go.like-it.link/3oJPt" target="_blank" rel="noopener noreferrer"><font size="2">TopZeal Filament TPU</font></a> </li></ul></div><h3>Links to used tools:</h3><div><ul><li><font size="2"> <a href="https://go.like-it.link/e1Nqo" target="_blank" rel="noopener noreferrer">Reamer Tool </a> </font></li><li><font size="2"> <a href="https://go.like-it.link/nT8YT" target="_blank" rel="noopener noreferrer">Drill Bit Set</a> </font></li><li><font size="2"> <a href="https://go.like-it.link/uH9VC" target="_blank" rel="noopener noreferrer">Thread Screw Tap</a> </font></li><li> <a href="https://go.like-it.link/h5jhx" target="_blank" rel="noopener noreferrer"><font size="2">NOGA deburring tool and Blades</font></a> </li></ul></div><h3 class="">Required files:</h3><font color="#ff" size="2"><ul><li class=""><img src="https://like-it.link/02mime/zip.png" width="24" height="24"> <a href="https://like-it.link/03234/project-files.zip" target="_blank">project-files.zip</a> </li><li class=""><img src="https://like-it.link/02mime/zip.png" width="24" height="24"> <a href="https://like-it.link/03234/syringe-adapter-mechanical-printable-stl.zip" target="_blank">syringe-adapter-mechanical-printable-stl.zip</a> </li></ul></font>
