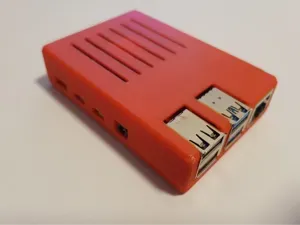

Raspberry Pi 4B Parametric OpenSCAD Case

# Raspberry Pi 4B Parametric OpenSCAD Case

* OpenSCAD * Customisable * No fastenings

## Customising the Case

This OpenSCAD model allows a large degree of customisation. Including:

* Ventilation holes - base, top, sides. * Fan - None, 30mm or 40mm, internal or external. * Space inside the case for "add on boards" and other modules - above, below, to the side. * Press fit, or screw mounted board (to support Pi Hats). * Tolerances and clearances all adjustable.

There is also a model of the Pi itself within the case to help model space for custom Hats and other daughter-boards.

Sadly the model is too complex for the Thingiverse customiser - you will need to download the SCAD.

## Fans

With the default settings a 7mm will fit internally. If you use the 10mm fan you can increase the space inside, or mount it externally.

If you want to fit it internally you can either use screws or flush fitting pins (provided).

- https://thepihut.com/products/miniature-5v-cooling-fan-for-raspberry-pi-and-other-computers - https://www.amazon.co.uk/gp/product/B07FVQG926 (I've tested these internally with pins)
