# HC-SR501 PIR Sensor Case

# Summary

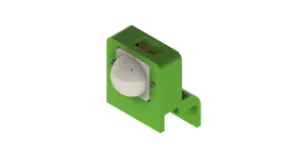

This thing is a simple bolt-on case for the HC-SR501 PIR Sensor, the case is designed so that it can slide onto my Panasonic TV and face the rest of my room. The case was designed using an open-source step file for the HC-SR501 along with Fusion 360 for the cad modelling.

# Equipment List

- 2 x M2x16mm bolts - 2 x M2 nuts

#Useful Links - [Node-Red Presence Detector Repository](https://github.com/ScottGibb/HC-SR501-Node-Red-Presence-Detector) - [HC-SR501 PIR Sensor Step File Link](https://grabcad.com/library/pir-hc-sr-501-sensor-1) - [HC-SR501](https://www.aliexpress.com/item/32731348914.html?spm=a2g0o.productlist.0.0.3c32616a5UqB3N&algo_pvid=0469c825-c11f-40ca-be00-55412b3a9f68&algo_exp_id=0469c825-c11f-40ca-be00-55412b3a9f68-0&pdp_ext_f=%7B%22sku_id%22%3A%2265768515094%22%7D&pdp_npi=2%40dis%21GBP%21%210.67%21%21%210.68%21%21%400b0a187916581730393106175eb48e%2165768515094%21sea) - [Assorted nuts and bolts](https://www.amazon.co.uk/1080pcs-Stainless-Assortment-Washers-Wrenches%EF%BC%88Silver%EF%BC%89/dp/B098QB7LXD/ref=sr_1_4?crid=35NVVCX8CG68I&keywords=M2%2FM3&qid=1690475293&s=industrial&sprefix=m2%2Fm3%2Cindustrial%2C101&sr=1-4)
