Case for AC-DC 5V precision buck converter AC 220v to 5v DC step down transformer power supply module
Сведения о модели
- Площадка
Thingiverse
- Цена
- Бесплатно
- Лицензия
- CC-BY
- Можно печатать, изменять и использовать в коммерции — с указанием автора.
- 11 Лайки
- 218 Загрузки
- 0 Напечатали
- 5 В подборках
- 0 Комментарии
- 1 178 Просмотры
Описание
Case for "AC-DC 3.3V/5V/12V Precision Buck Converter AC 220v to 5v DC step down Transformer power supply module 1A 12W", something like that was in the name of aliexpress, see on screenshots what exactly power supply I used. Pretty simple case, without showing off, has some minor shortcomings, but for me, it doesn't matter much, but if you have ideas how to improve it or to make your own modification - you can find source files for solidworks here.
Maybe later I'll improve it somehow, but not I have no plans about it, I like it as is.
To lock case, use M3x8mm screws or shorter. I used 10mm, but I have some doubts about it. Also, holes can be a little bit smaller, so I can recommend you to initially heat screw by solder iron and when it will dive a little deeper - screw the rest with a screwdriver. That's the all nuances I had.
Похожие модели
5V 700mA AC DC Converter Step-Down Module
DD0503MA Ultra Mini DC 3.7V 4.5V 5V to 3.3V DC DC Step Down Converter Buck Module
DC-DC 5V-12V To 3.3V Step Down Voltage Regulator Power Module Board

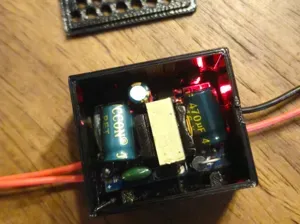

220V AC to 12V DC (0.4A) Power Supply Enclosure
DD4012SA 6.5-40V to 3.3V 5V DC-DC Step-Down Buck Converter, 1A
DC-DC Buck Converter 8V-60V to 5V (Waterproof Module - 63x32x18mm)
Tiny AC/DC 5V 3W

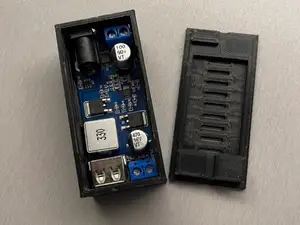

USB-Power Stepdown DC-DC 5V Buck
