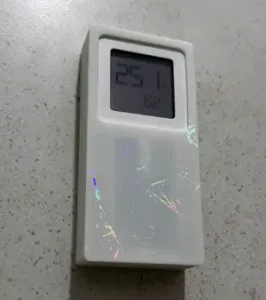

Mi Temperature and Humidity Monitor 2 - AAA battery mod box

This is box for Mi Temperature and Humidity Monitor 2 for using 2xAAA batteries. Box fully integrate sensor, so you can use it to change color of your sensor. Box include wall holder (hook).

**Assembly:** - remove original back cover from sensor - use dummy CR2032 to connect battery box to sensor or solder it directly to pins - insert sensor to box, its quite tight so it stay in place by itself - **be aware of orientation of sensor in box, please check attached picture ** - glue battery box to sensor box - install lid and secure it with 3x16 selftapping wood screws - for installing sensor to wall, use "hook" in print files and screw



**Additional components:** -2x 3x16mm wood selftapping screws with conical head (for lid) -1x 3mm diameter screw with conical head for secure hook to wall (optional) -1x AAA battery box -1x dummy CR2032 (optional, I solder it directly to sensor)
