Customizable Hose Adapter

Сведения о модели

Площадка
Thingiverse
Цена
Бесплатно
Лицензия
CC-BY-SA
Можно печатать, изменять и продавать с указанием автора; переделки — под той же лицензией.
  • 35 Лайки
  • 405 Загрузки
  • 1 Напечатали
  • 11 В подборках
  • 2 Комментарии
  • 1 791 Просмотры

Автор:julvr

Опубликована

Описание

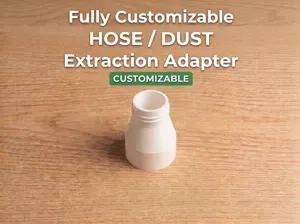

This is an adapter for any two hoses or pipes. It was designed to be complete -- you can specify the hose diameters, whether they are male or female, you can override the length of each side, and taper the ends if you want tighter fits. You can also adjust the wall thickness for stronger or faster printing parts.

A couple of quick notes: * The end diameters should be the actual diameter of the hose/pipe you are connecting to. You can add some wiggle room by adjusting the tolerance field. * For tapered ends, you do not need to adjust the diameters -- for female ends, the top of the hole will be slightly wider than the specified diameters, and the bottom slightly narrower. The reverse is true for male ends. If taper is set to 0 (default setting), there is no taper.

This uses OpenSCAD. If you're not familiar with OpenSCAD, you can follow these instructions:

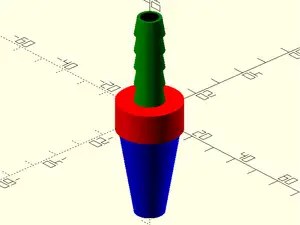

1. [download OpenSCAD](https://openscad.org/downloads.html) (note: it's free, and simple to install. I recommend downloading the latest development version as opposed to the latest release) 2. Open the PipeAdapter.scad file 3. Make sure that under the View menu, that "Hide Customizer" is _not_ selected. A customizer panel will appear to the right 4. Tweak the settings in the customizer panel -- note: all measurements are in mm. 5. Press F5 to preview, F6 to render, and F7 to export an STL file
