Harbor Freight Tool Organizers - Gridfinity

I designed and printed some Gridfinity organizers for my Harbor Freight 1/2" tools. All trays are designed specifically for the tools listed, unless otherwise specified. For example, the extension tray is for the chrome 1/2" quick release extensions, but may or may not fit the other 1/2" extensions.

[NAME] [GRIDFINITY SIZE] - [DESCRIPTION] [LINK]

Extension Tray 2x7 - holds the smaller 3 extension from the set 61968. https://www.harborfreight.com/12-in-drive-quick-release-extension-bar-set-4-piece-61968.html

Universal Impact Joint 1x1 - holds the 1/2" Universal Impact Joint from the 3-piece set. I may model a 1x2 bin that holds all 3 if there is any interest. https://www.harborfreight.com/universal-impact-joint-set-3-piece-67986.html

Torx or "Star" Bits 1x5 - holds all 7 of the 1/2" drive Torx (or "star" as they're referred to by HF) bits. All sockets have the same base size so they can go left-to-right or right-to-left. https://www.harborfreight.com/12-in-drive-star-bit-socket-set-9-piece-67887.html

Metric Impact Sockets (deep) 3x4 - holds the deep-well Metric Impact socket set for 1/2" drive in a nice S-pattern. The largest sits at the back-left and curves through 3 rows, ending with the smallest in the front-right. It is mirrored from the Standard/SAE set in the original orientation. THE STANDARD/SAE SOCKETS DO NOT FIT IN THESE HOLES. https://www.harborfreight.com/12-in-drive-impact-deep-socket-set-13-piece-69561.html

Standard/SAE Impact Sockets (deep) 3x4 - holds the deep-well Standard/SAE Impact socket set for 1/2" drive in a nice S-pattern. The largest sits at the back-right and curves through 3 rows, ending with the smallest in the front-left. It is mirrored from the Metric set in the original orientation. THE METRIC SOCKETS DO NOT FIT IN THESE HOLES. https://www.harborfreight.com/12-in-drive-impact-deep-socket-set-13-piece-69560.html

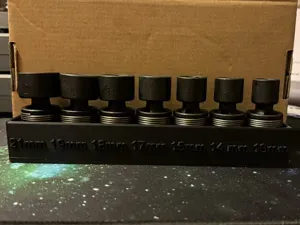

Impact Swivel Sockets 2x4 - this tray fits both the Metric AND the Standard/SAE swivel sockets (obviously not both full sets at the same time) in a zig-zag pattern. All sockets have the same base size so they can go left-to-right or right-to-left. METRIC: https://www.harborfreight.com/12-in-drive-metric-impact-swivel-socket-set-7-piece-67911.html STANDARD: https://www.harborfreight.com/12-in-drive-sae-impact-swivel-socket-set-7-piece-67913.html

All parts printed in regular PLA, 0.2mm layer height, 10% infill on a Creality CR-10 S4.
