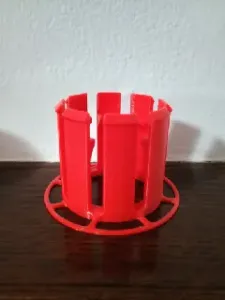

Elegoo Centauri Carbon AD5X adapter Spool Holder

This adapter allows you to use the spool holders from the Flashforge AD5X printer for your Centauri Carbon (1). They are approx. $15 and allows your spool to have a nice snug fit and also keeps constant tension on the spool. This adapter simply replaces your original spool holder. Put in the adapter and slide on the ad5x spool holder. This will also help eliminate rubbing on the side of your printer housing.

Note: It is very important when ordering the FlashForge Ad5x spool holder that you choose either the 1 or 2 position holder if you want it to feed from the top of the spool. They are rotationally proprietary. (Ad5x spool holder 1 & 2 freely spin clockwise, position 3 & 4 freely spin counter clockwise).

Printed off the Elegoo Carbon Filament: PETG Supports: Yes- Tree/organic Threshold Angle: 30* Top & Bottom interface spacing: 0.5 Top Z distance: 0.16 Bottom Z distance: 0.2 Support object XY Distance: 0.28 support object first layer gap: 0.2
