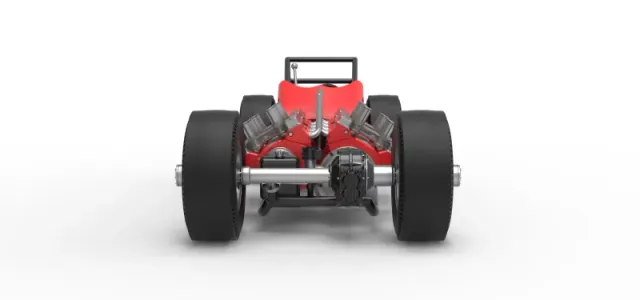

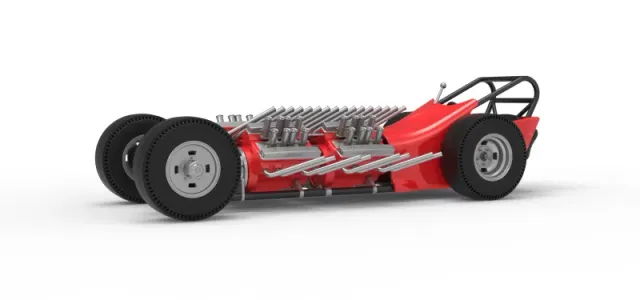

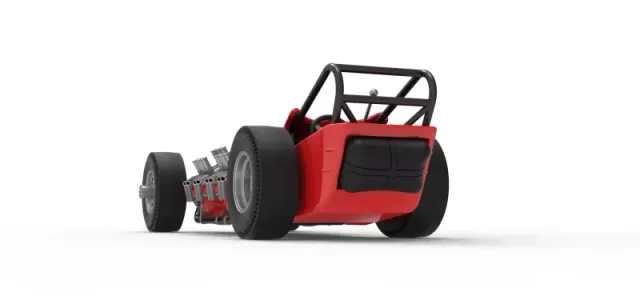

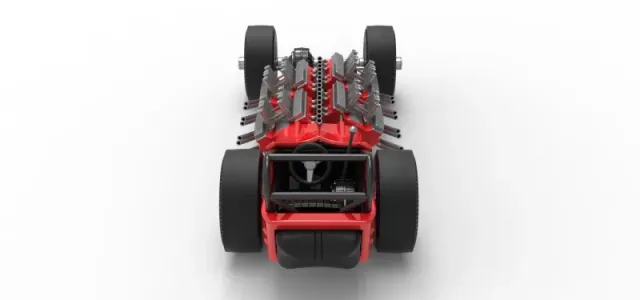

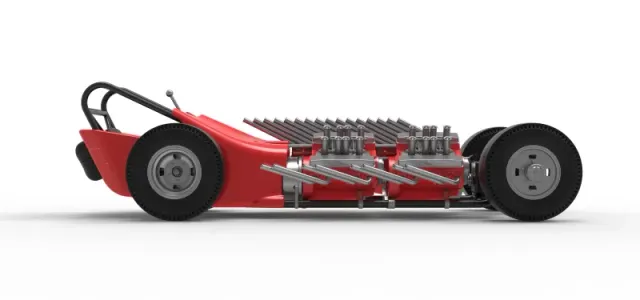

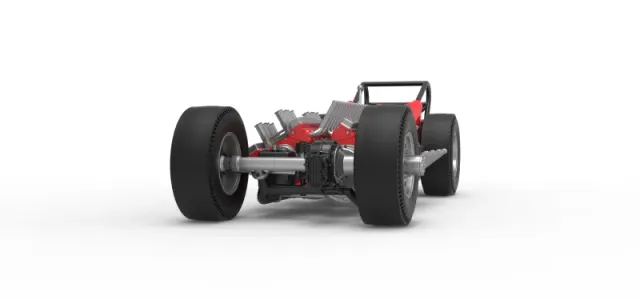

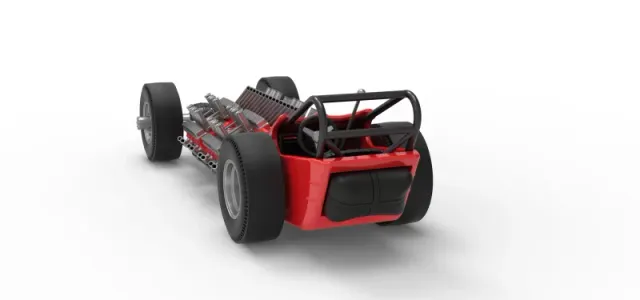

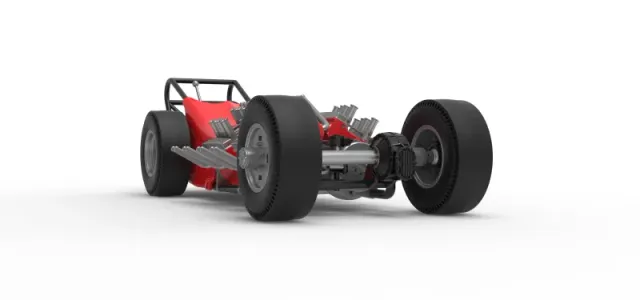

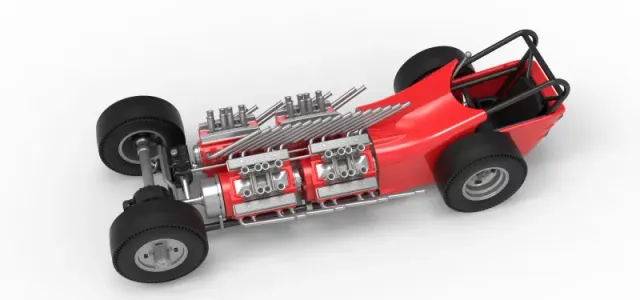

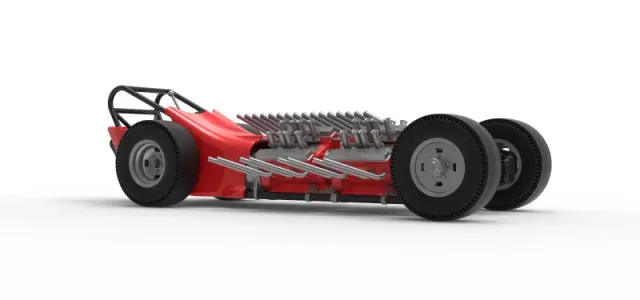

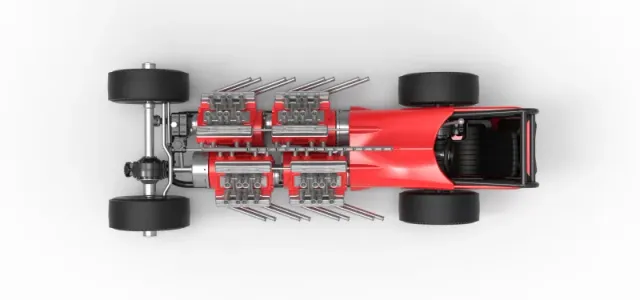

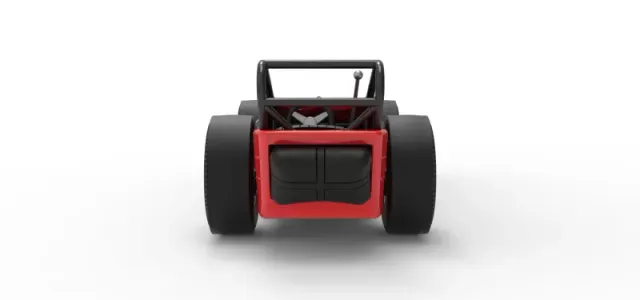

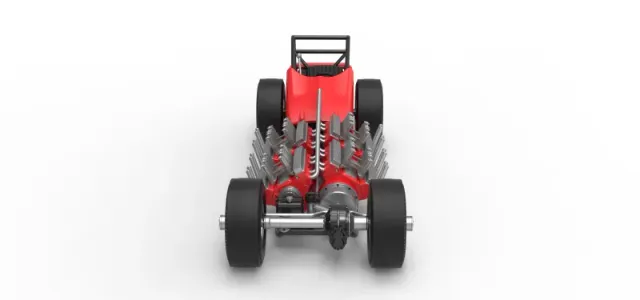

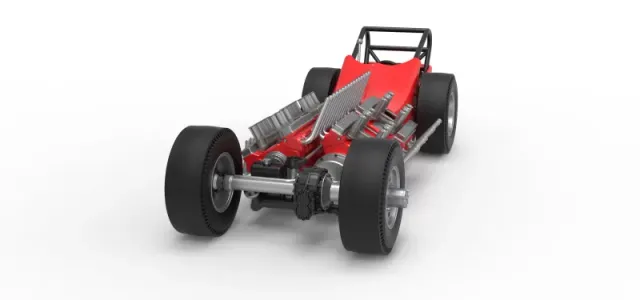

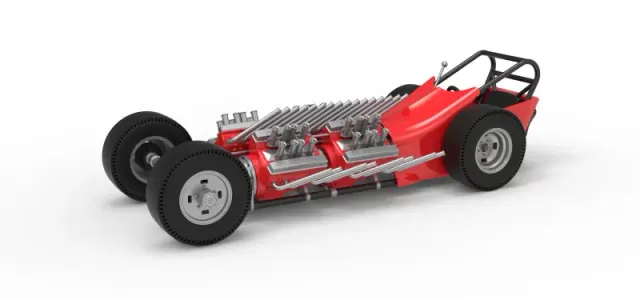

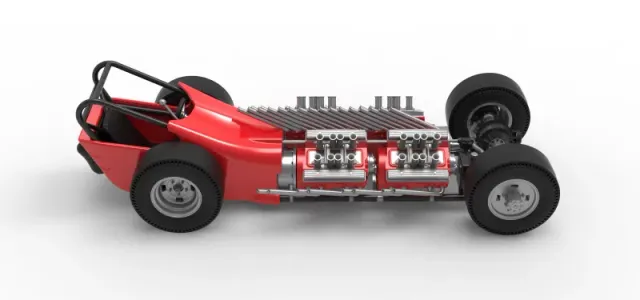

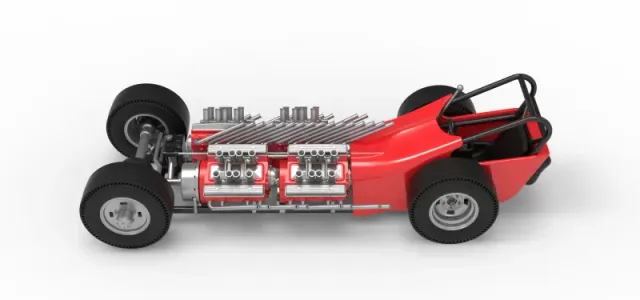

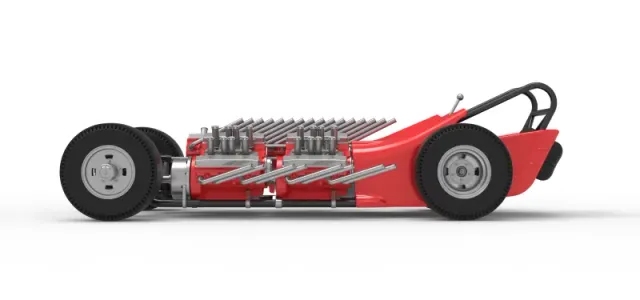

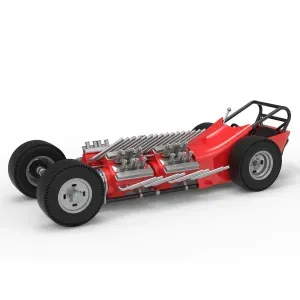

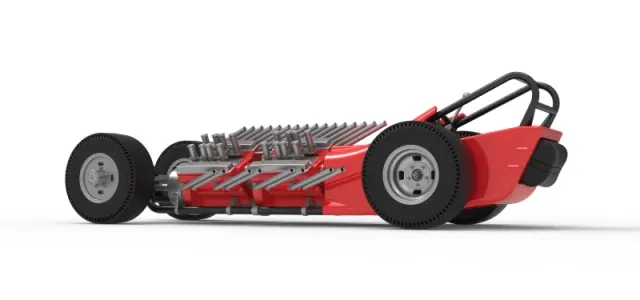

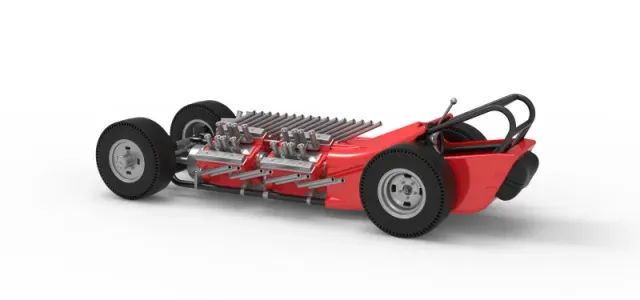

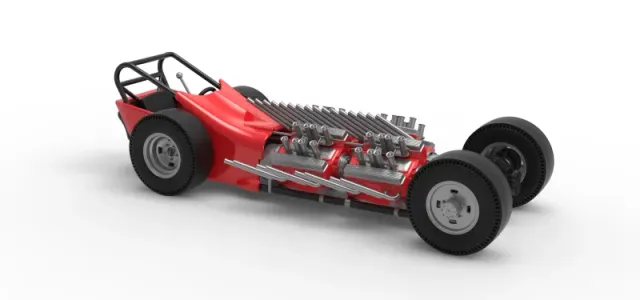

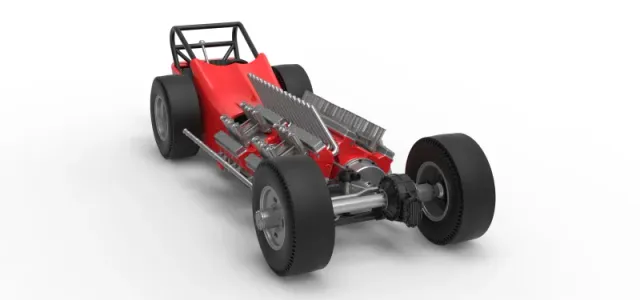

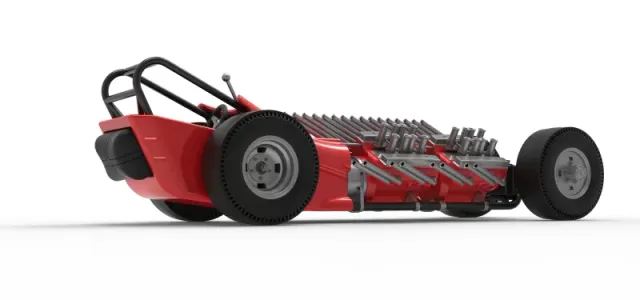

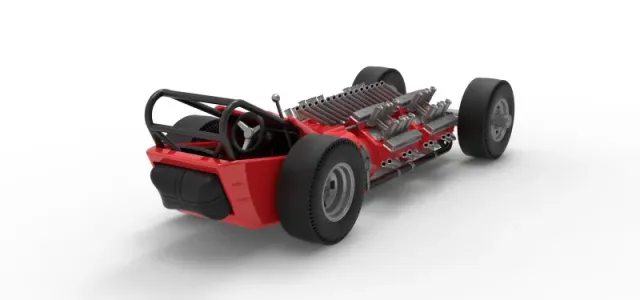

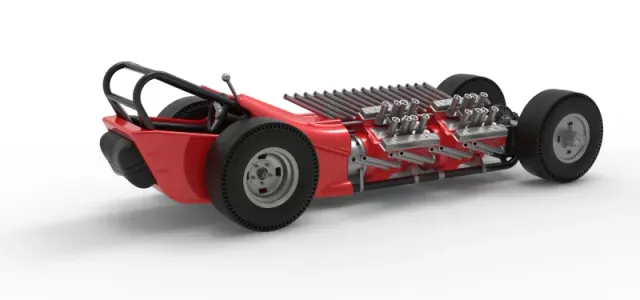

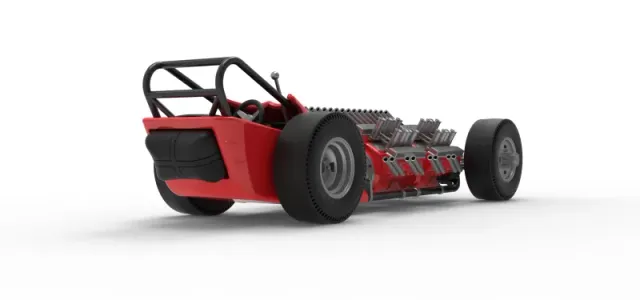

Vintage AWD Dragster Version 2 Scale 1:25

Model dimensions: - length - 163.2 mm - width - 67.2 mm - height - 44.8 mm - length of the longest part - 154 mm

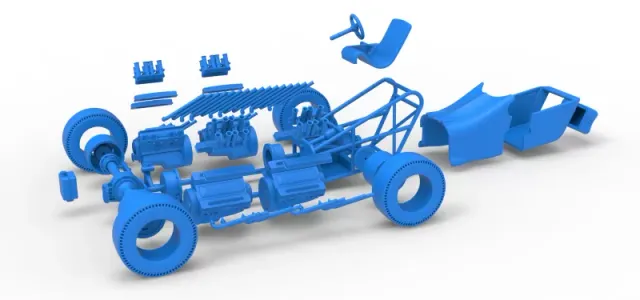

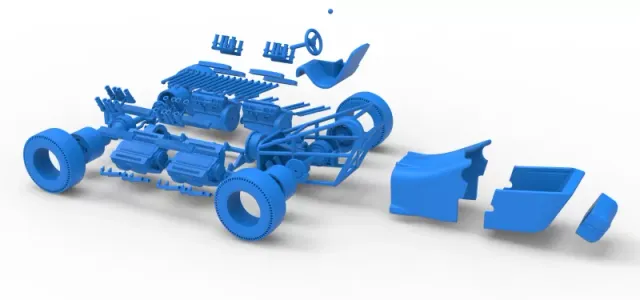

The model consists of parts: Air intakes, Central exhaust pipes, Frame, Front rims, Head covers, Left engines, Left exhaust pipes, Parachute bag, Rear rims, Right engines, Right exhaust pipes, Seat, Shell part 1,2, Shifter ball, Steering wheel, Tank, Tires.

The Shifter should be assembled from the detail “Shifter ball” and metal rod with diameter 1 mm and length 29 mm.

The Steering rod should be made from metal rod with diameter 1 mm and length 74.5 mm.

Right and left engines should be coupled before mounting in the frame: - in the center of the crankshaft - with metal rods with diameter 1 mm and length 55 mm. - through the head - with metal rod with diameter 1 mm and length 67 mm for the right engines and 60 mm for the left engines.

Central exhaust pipes should be placed between engines after the Shell mounting.

During assembling use metal pins with diameter 1 mm.
