Mold for diecast rear tire for Dune Buggy

Mold dimensions: - diameter – 124 mm - height – 44 mm

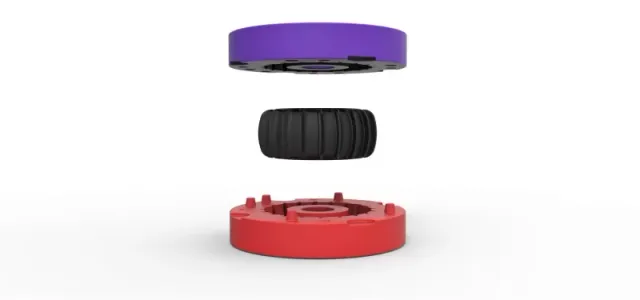

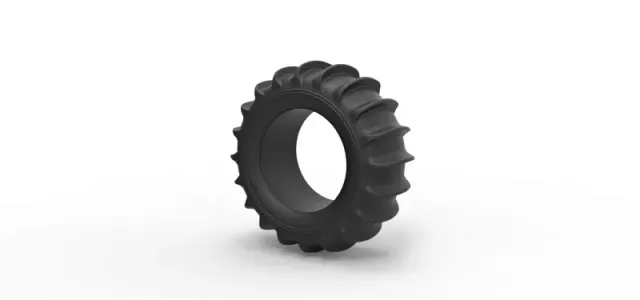

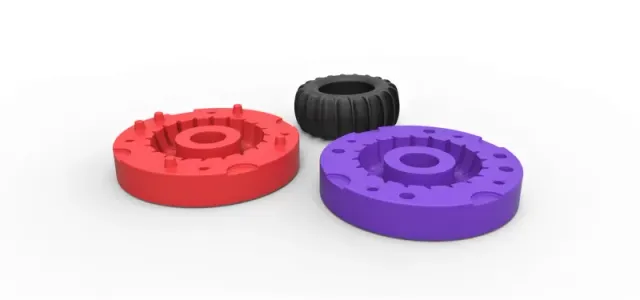

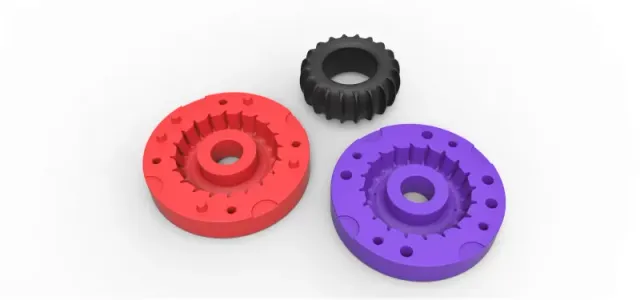

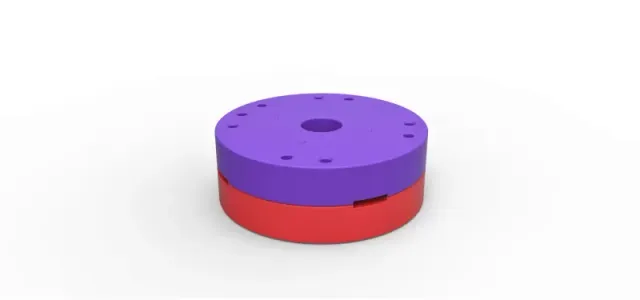

Tire dimensions: - outer diameter – 84 mm - overall width – 34 mm - inner diameter – 44 mm The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports. Mold dimensions: - diameter – 124 mm - height – 44 mm Tire dimensions:

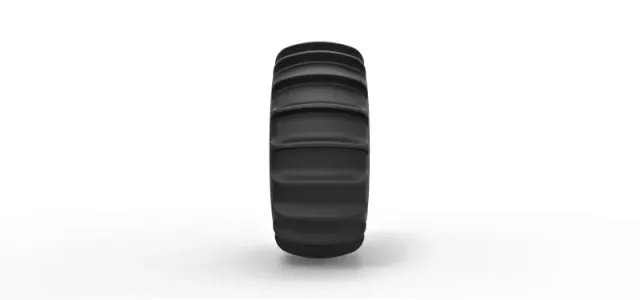

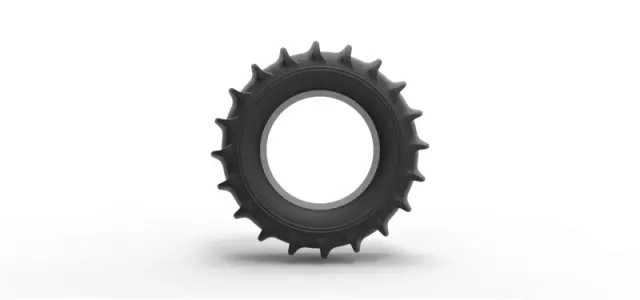

outer diameter – 84 mm overall width – 34 mm inner diameter – 44 mm

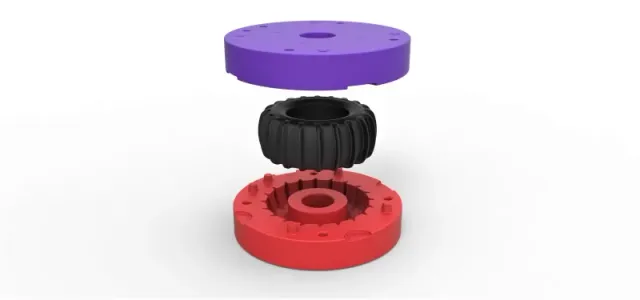

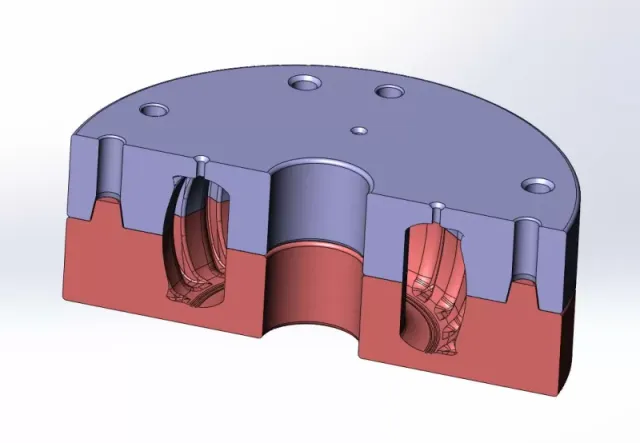

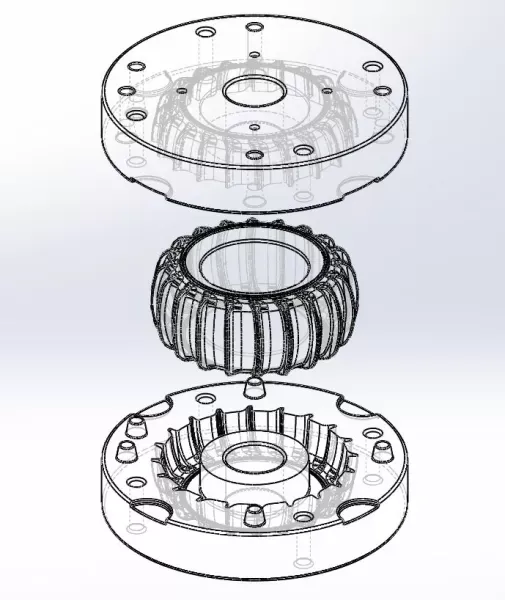

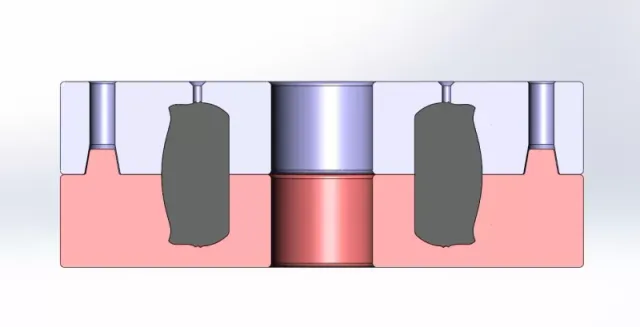

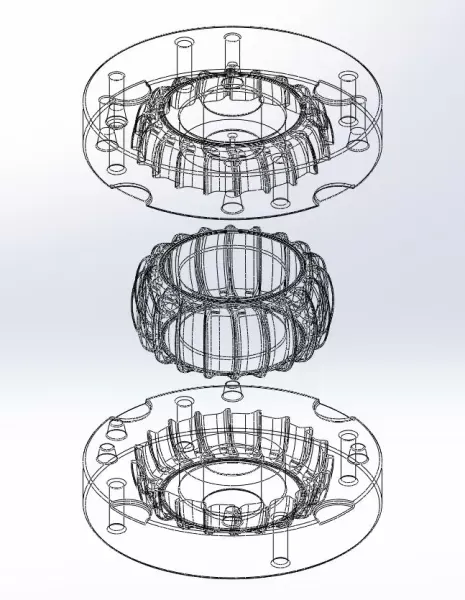

If you want a different wheel size, simply scale the mold. The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument. In the Top mold part are 4 small holes for material injection. Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.
