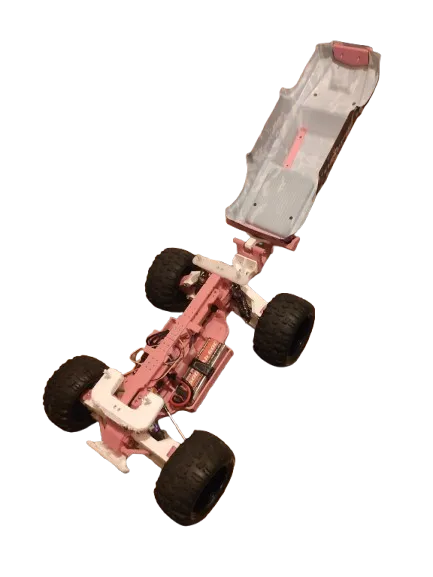

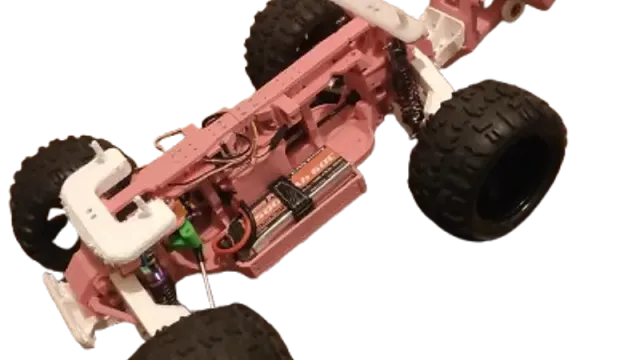

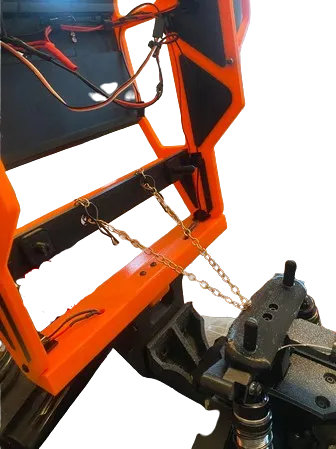

PIRATES ZD RACING TRUGGY 1:7 4WS 4WD RC CAR

PIRATES ZD RACING TRUGGY 1:7 4WS 4WD RC CAR

RC CAR PRINTED PIRATES ZD RACING TRUGGY 1:7 4WS 4WD

(4 WHEEL STEERING X CENTRAL DIFF)

Ultra-high-performance 1/7 scale RC car, 3D printable, using standard ARRMA or HSP central diff and ZD PIRATES drive shaft.

ZDRACING better big diff parts.

and many CVD 1/7 (ZD EX07-DBX07, ZD MX07, ARRMA KRATON 6S CVD)

The design is improved, and much more durable than the original. Easy Fix, Strong, Modulable, Big battery place, Speed 100Km/h in 4S.

4WD And 4WS

- Ender 3 compatible

- STL Pré-oriented (ready to print), - Full Metal transmission, - 4 arms = 1 arm (Lowers and Uppers), - Modulable, - Only M3 Screws / Washers / Nuts (kit mod  M4 for premium) - 17mm Wheel Hub

Recommended Electronic hardware :

- D3660 3150KV 5mm (or more)

- 4S 4500mah 60C (or more)

- ESC 10BL120 (or more)

- Servo DS3218 PRO 180deg

Recommended Mechanical hardware : (with REF code for search Aliexpress)

- M1 Steel Pinions Gears 14T - 20T

- Rolling ABEC 7 (for CVD ARRMA and MX07 : cf tuto / for CVD EX07-DBX07 : cf tuto)

- (X2) Front Gear for Diff (REF:  cf tuto)

- ARRMA or HSP MOTOR MOUNT (REF: cf tuto)

- CENTRAL DIFF (REF: cf tuto)

- TRANSMISSION DOGBONES (ZD PIRATES drive shaft)

- (X2) DIFFERENTIALS (ZD EX07-DBX07 or ZD MX07)

- CVD (many possibility cf tuto)

BUILD GUIDE :

https://docs.google.com/presentation/d/1nwy2iyDhuuIbpARU2I8VpaZp18YCURLjfIpktTrSLTU/edit?usp=sharing

BUY LIST :

https://docs.google.com/spreadsheets/d/1WPbJcaeoD3fyFrxVDfbY1MNssH4pjws30lIqk-6vRL8/edit?usp=sharing

BUILDING VIDEO LINK :

https://youtu.be/ltlX8YH-RXE

DRIVE TEST :

https://youtu.be/R_dJ-n3_QSA

Drive test 3 :

https://youtu.be/SvWld79_sfc?si=IxgxMczxTGTEKQea

Drive test 2 :

https://youtu.be/yqldffKXP6s?si=-j6Je2f98ZwKowQO

Drive test 1 :

https://youtu.be/OAT00DGrQRY?si=kfoROmn45r2Mdgoa

PREMIUM VERSION GOT :

– Bumpers
