Rotary Camera Mechanisms: STL Models for 3D Printing

This collection gathers STL files for camera rotation hardware: tilt-and-pan heads, tripod adapters, cam-driven indexers and shutter linkages. It helps when you want to rebuild or extend a mount rather than buy a finished head. Most parts are small enough for a desktop 3D printer, though part counts vary. Polyzon does not confirm whether models are free, their price, license, official status, affiliation, safety or fitness. Check the current terms at the source.

A Polyzon collection · 47 models from 6 platforms

How this collection is put together

Polyzon assembles this collection from search results on the connected platforms. Repeats and models without a preview are removed, weak matches go to the end, and the rest keeps the search order. Models belong to their authors — check the terms on each model's page.

Selection rules: the Polyzon editorial team · Text updated 2026-10-11

View the collection Show all: 50560 models →
Collection

Start here

All models in this collection

Show all: 50560 models
About the category

«Rotary Camera Mechanisms: STL Models for 3D Printing»

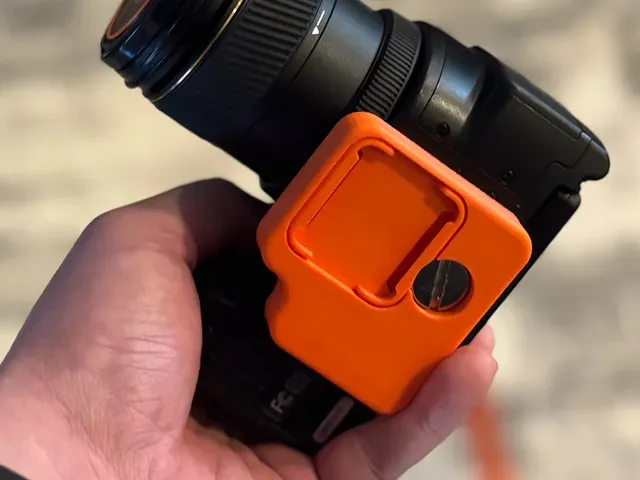

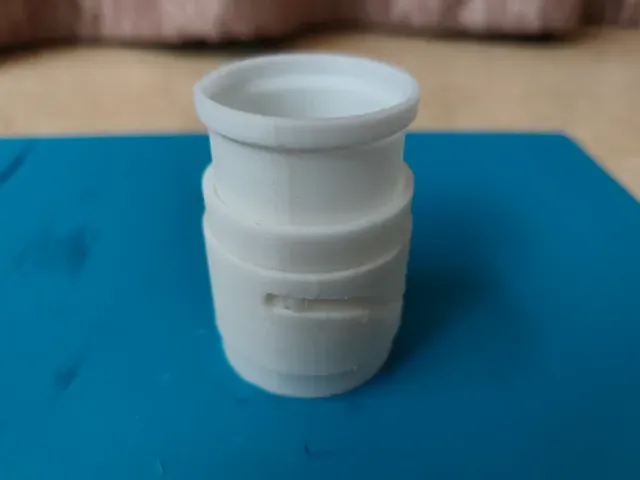

The set splits into a few families. Tilt-and-pan heads and swivel mounts turn a camera body around one or two axes, while tripod adapters and holders only attach a camera to an existing thread or plate. Cam-driven indexers and Geneva-style wheels convert continuous motion into steps, and shutter or lens barrel linkages handle small internal movements. Interval trigger units sit between a mount and a mechanism.

When you open a model page, check the geometry before printing: overall size and scale, the number of separate parts, and whether the build needs screws, bearings or shafts you have to source yourself. Look at whether supports are required and how the author oriented the pieces on the plate. The material and settings listed by the author, along with photos of real prints, tell you more than a render.

Search terms matter here, because the same idea is described in different words. Try swivel mount, pan head, tilt bracket, rotary joint, index mechanism, camera slider, lens linkage or intervalometer trigger. Related topics such as gimbal parts, tripod plates, robotics joints and model aircraft camera mounts often lead to parts that do the same job.

FAQ

Frequently asked questions

What does a rotary mechanism do on a camera rig?
It turns the camera or a single part of it around an axis: panning across a scene, tilting up and down, stepping a lens barrel, or tripping a shutter at set intervals. Some designs are hand-driven, others take a motor or a spring.
What should I check on a model page before printing?
Part count, shaft and bore dimensions, thread sizes, and whether supports are needed. The author's material notes and photos of printed parts help you judge how the assembly behaves.
Which filament works for moving parts?
Model pages usually name the filament and layer height the author used. Stiff filaments hold bores and shafts well; tougher blends are often chosen where a part flexes or takes load.
How do I find a mechanism for a specific camera?
Search by mount type or thread rather than by camera name, then compare the plate shape and hole spacing with your body. Many files include several variants or an editable source file.
