All-in-One Sup CUP (NC edition)

🛑 BEFORE YOU PRINT🤚 There's a better version of the SUP CUP Available here:

https://bit.ly/supcuppro

SUP CUP Pro Improvements

- Supports Cryopod Insulated Can Holders (Freezable)

- Twist-lock base ensures it'll stay on the board - even when you don't

- Bigger opening - because your emotional support tumblers deserve a seat too

- Smaller can/bottle adapter system - now flat-packable within the phone holder for easy transportation

- Built tougher, with less filament

You're still welcome to print this version of course!

⭐Note: You can access the parametrized design files, request custom dimensions, and obtain a commercial license for all my models by subscribing to my Patreon

https://www.patreon.com/c/AdequateLabs

What is it?

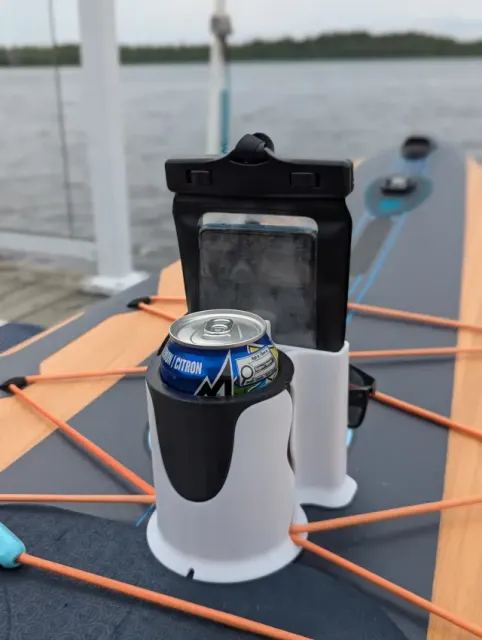

A stand-up paddleboard accessory that can hold your drink, phone, and sunglasses, all at once.

How is it different?

1. Compatible with cans, bottles, and coozies

Use the 'Can Insert' for standard and tallboy beverage cans

Use the 'Bottle insert' for standard longneck bottles and 'sleek' cans (e.g. 12oz Whiteclaws)

Remove the insert for beverage coozies such as the YETI Rambler, High Sierra can cooler, and Brumate Hopsulator Trio

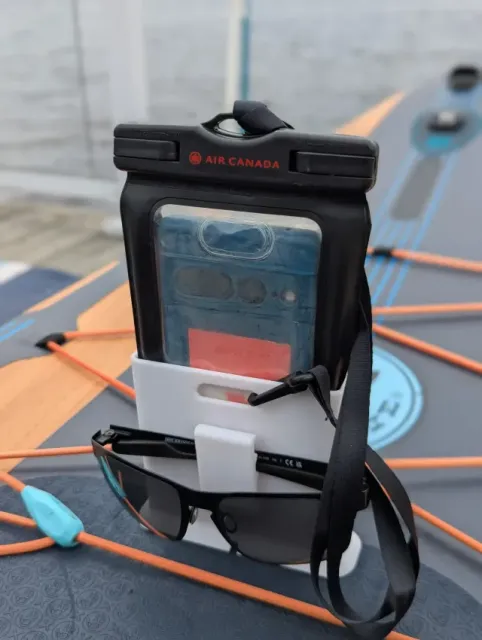

2. Secure Phone holder

Unlike other SUP Cup designs, this one allows you to secure the phone in place with an elastic band or hair elastic.

For extra security, the phone holder is wide enough to support a waterproof phone sleeve as well.

Fits *most* phones and cases (105mm x 15mm)

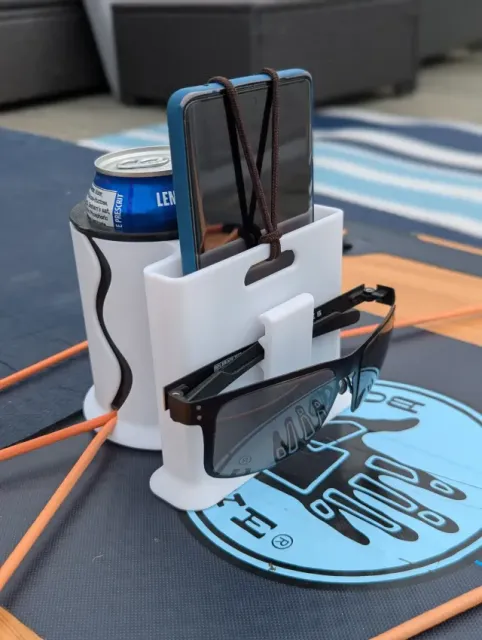

3. Sunglasses clip

Sunglasses/glasses clip included - secure your shades and dive in!😎

Printing Guidelines

PETG recommended temperature & UV resistance.

SUP CUP

Supports: Tree - auto

Layer Height: 0.20mm+

Infill: 10%, or higher for more strength

Be careful when removing the supports from the elastic band tie-down hook

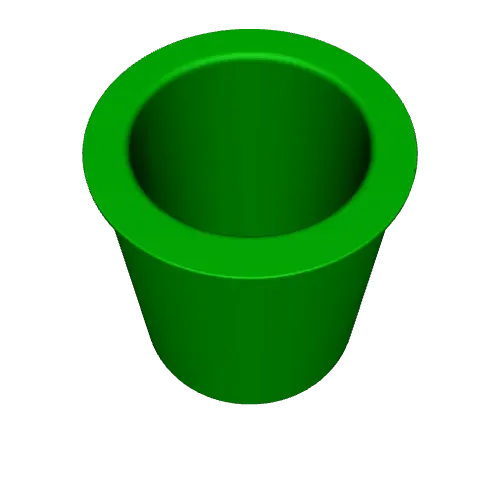

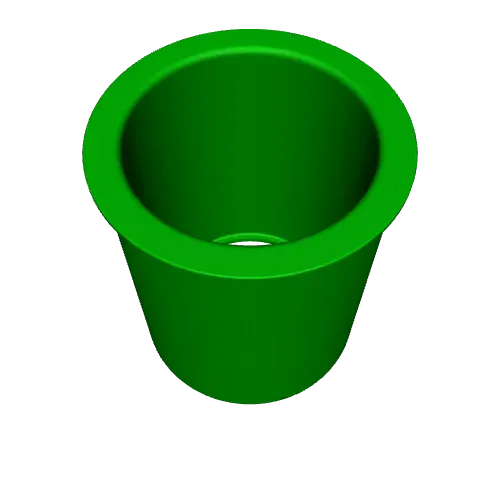

Inserts

Supports: None

Layer Height: 0.22mm+

Infill: 5%, or higher for more strength/insulation

Print with the base of the insert on the build plate

Improvements

Reduced filament usage by 20%

Widened phone holder to support waterproof phone sleeves

Widened tie-down bridge to support lanyards
