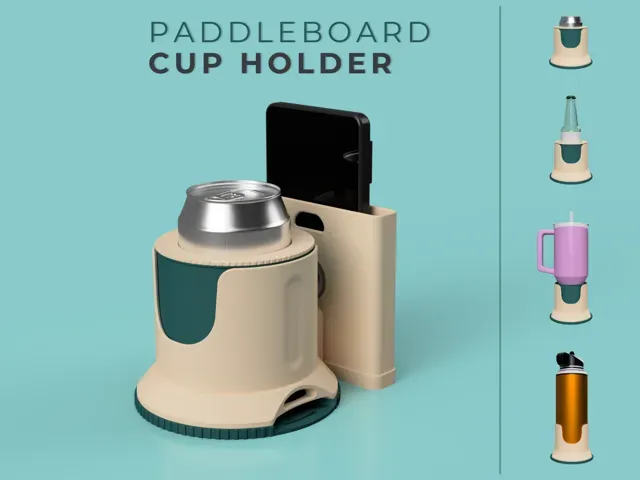

SUP CUP Pro: Secure Paddleboard Cup Holder System

A drink, phone, and sunglasses holder for stand-up paddleboards and kayaks.

Key Features

- 🔒 Twist-lock base - for unplanned swims - 🧊 Compatible with insulated can holders (Optional Add-on) - 📱 Phone module to keep your phone and sunglasses secure - 🥤 The Insert system supports many popular tumblers and cans - 🧲🆕 Magnetic Base (Optional Add-on, see print profiles) - ⚙️ Get the perfect fit: Use the ' Customize ' button to generate custom insert sizes (max 76mm) - 🔗 CupConnector module allows several SUP CUPs to be connected together - 🧩 SUPSnap:  An open-source accessory mount system so you can design your own accesories  \

Boost Me Like this design? Boost, follow, or post a pic of your print, it genuinely helps 🖤

How it works

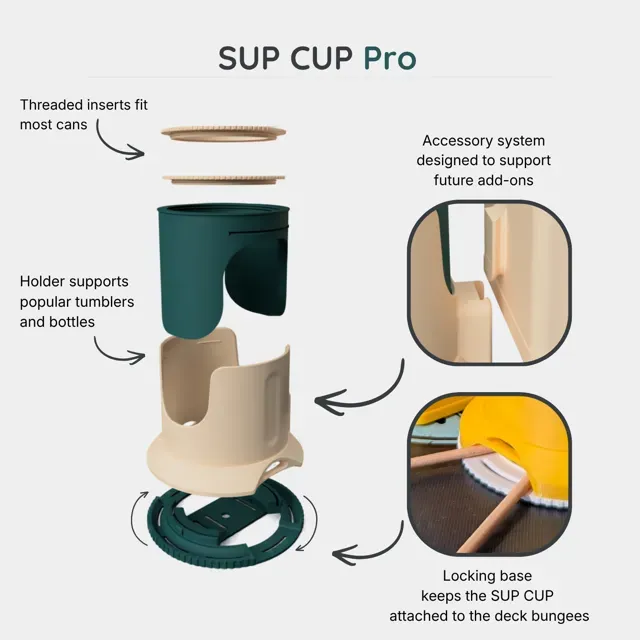

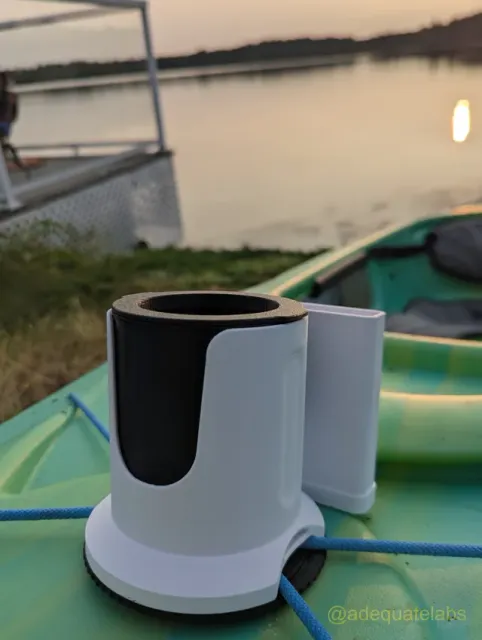

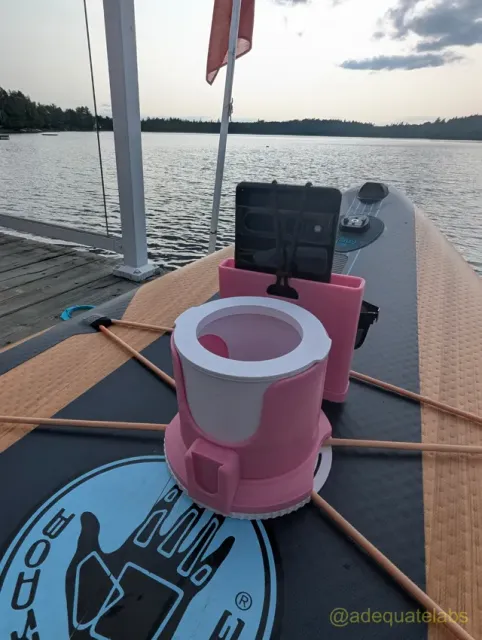

- Slide the base under the bungee cords on your paddle board or kayak. - Twist the cup onto the base . The bungees drop into the channels in the base, and the twist-lock traps them, so the SUP CUP can't lift off - even upside down. - Drop in your drink . Use an insert if your can or bottle is narrower than the cup. - Optional: clip on the phone mount and hold your phone and shades in place with a hair elastic

Which one do I print?

Pick one profile from the table below.

Not sure? Print classic. It fits the most containers.

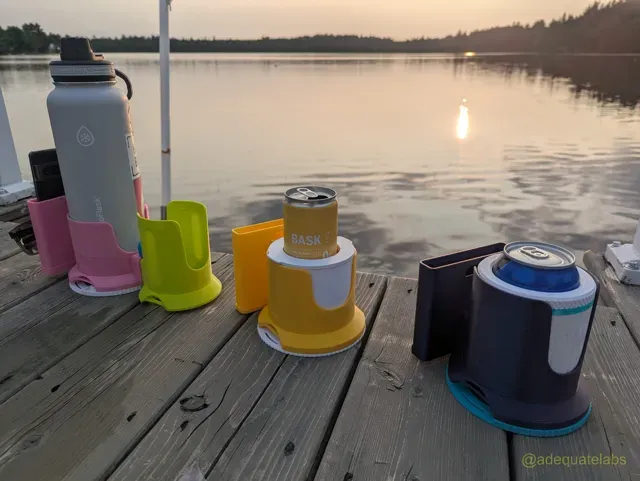

Profile Description Works with CryoPod can holder 🧊 SUP CUP opening SUP CUP height

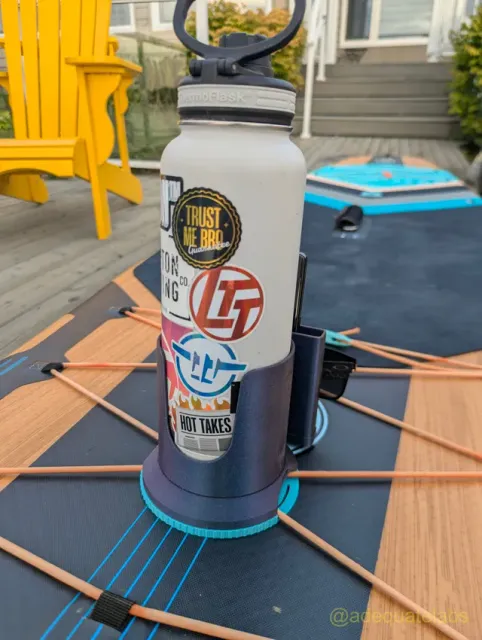

Classic Fits most tumblers and water bottles.  ✅ Yes 91.5 mm 84 mm

Duo Same size as classic , but with a second mount on the front - so you can link two SUP CUPs together and still use the phone mount. ✅ Yes 91.5 mm 84 mm

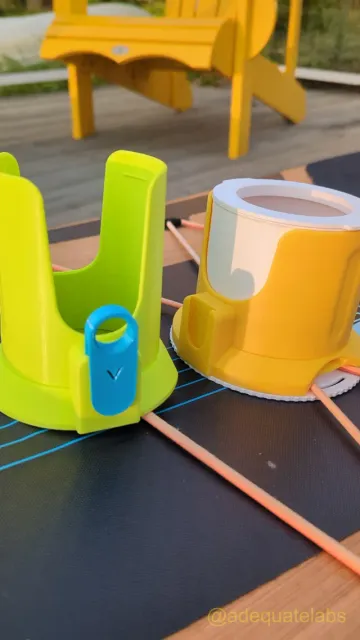

Lite Lighter and simpler - for kids' bottles and smaller tumblers. Links to a full SUP CUP via CupConnector. Doesn't support inserts or the CryoPod - just a cup that holds a drink ❌ No 75mm 84 mm

Max A giant cup holder for 1 gallon jugs. Doesn't support inserts or the CryoPod. ❌ No 165.1mm 150 mm

Still have questions?

See the Documentation section for additional guidance

- Container compatibility list → Find out if your bottle fits - Assembly instructions → How everything fits together - Print settings → Settings for those who can't use the print profiles

Feature overview

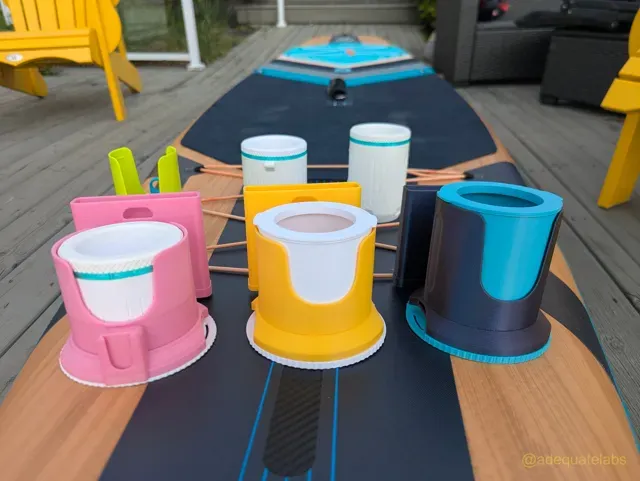

Insert System

- Inserts reduce the opening so narrow drinks don't tip inside the cup. - The “Main insert” snaps into the SUP CUP, and the Can/Bottle inserts screw into the main insert. - Store your inserts inside the phone holder for easy transportation Insert Holds Opening

Main Insert Smaller tumblers and coozies   ~80 mm

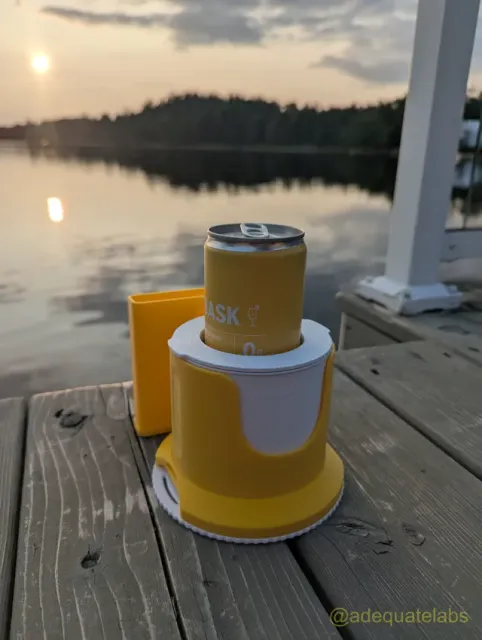

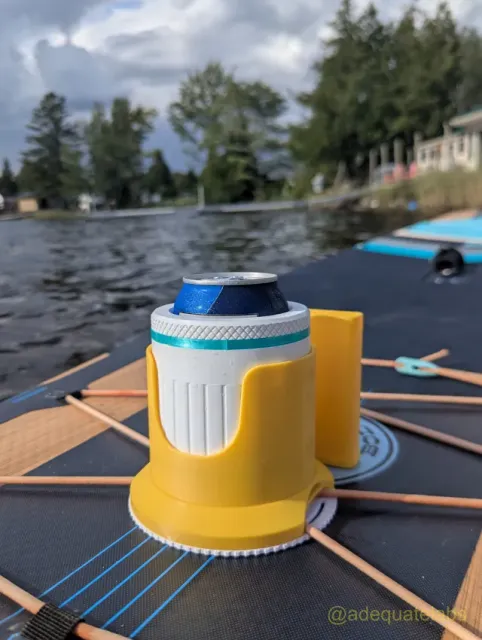

Can Insert Standard 12 oz / 355 ml cans, 16 oz tallboys, 50 cl EU cans, and slim cans ~66 mm

Bottle Insert Sleek & Slim cans (Whiteclaw, Monster slim, Red Bull, Truly, High Noon, hard ciders)

12oz North American beer bottles

~61.5 mm

📝 Note: The images and videos do not show the new screw-on insert style - I made this improvement after recording and editing.

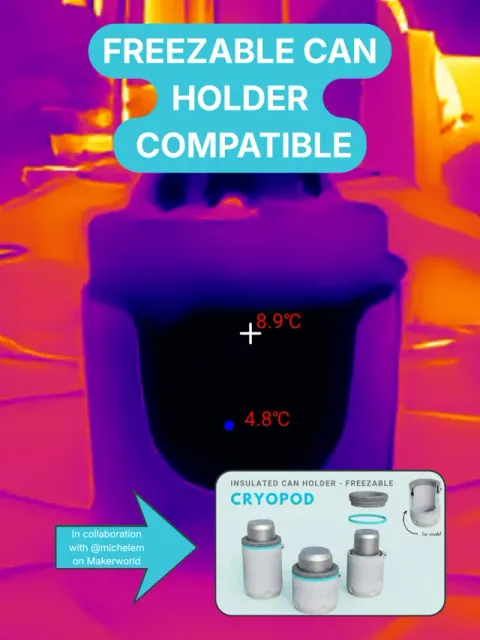

Add-on: CryoPod Freezable Can Holder🧊

The CryoPod Insulated Can Holder is a freezable, parametric, can holder that doesn't just insulate your drink, it actively cools it 🧊.

After posting my previous SUP CUP design, I received many requests to create an insulated or freezable version of the insert system. There were already several great insulated can holder designs on Makerworld, so I decided that it would be better to partner with another designer in the community to integrate with their design, rather than reinventing the wheel. I reached out to Michele , the designer of the CryoPod Insulated Can Holder, and they were more than willing to team up.

CryoPod Instructions

- Print the “Classic” or “Duo” SUP CUP profile - Head over to the CryoPod page and print their “Classic Pod” profile. - Follow their instructions to properly freeze your CryoPod, then drop it in the SUP CUP and enjoy! 💬 Comment on this model if you'd like me to make any custom SUP CUP sizes that fit Michele's other CryoPod options (sleek, slim, etc.).

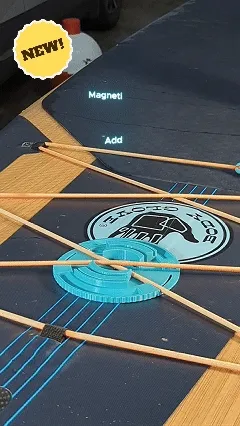

Add-on: Magnetic Base 🆕🧲

This base replaces the twist-lock with magnets. I removed the slots from the magnetic base so you can optionally add double-sided adhesive and make it a permenant mount.

- Print the Classic or Duo print profile (optionally, remove the original base if you dont want it) - Print the magnetic base print profile - Purchase the 10x3 magnets linked in the Parts section of this page (8 magnets needed total, 1x 20 pack will do) - See the attached Assembly Instructions for guidance on installing the magnets

🙏Shoutout to u /PonyThug on Reddit for this amazing idea!

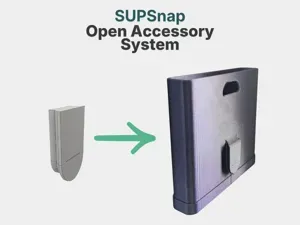

SUPSnap : Open Source Module System ⚡

The side of every SUP CUP has an easy-to-use accessory interface. Modules slide on and off.

SUPSnap Model Page

Two accessories are included with the print profiles today:

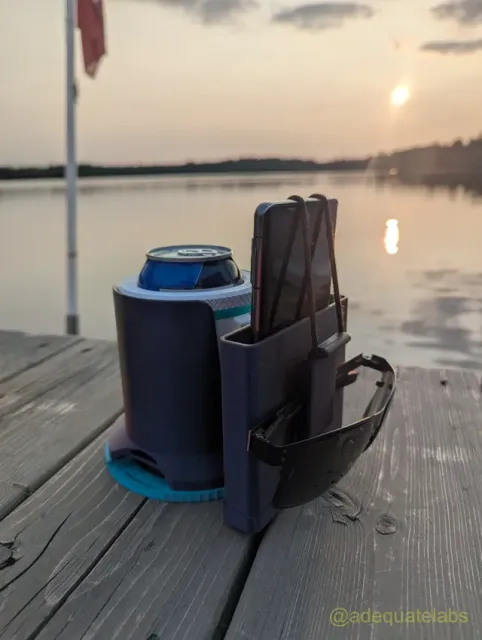

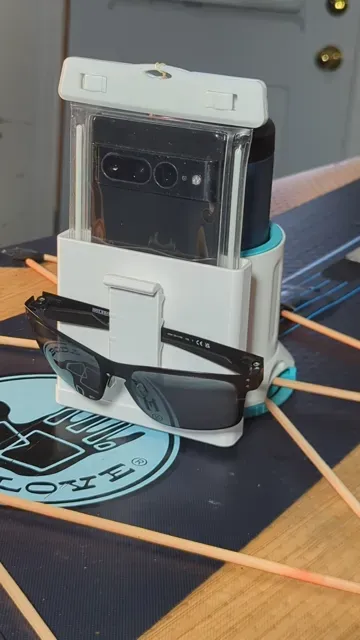

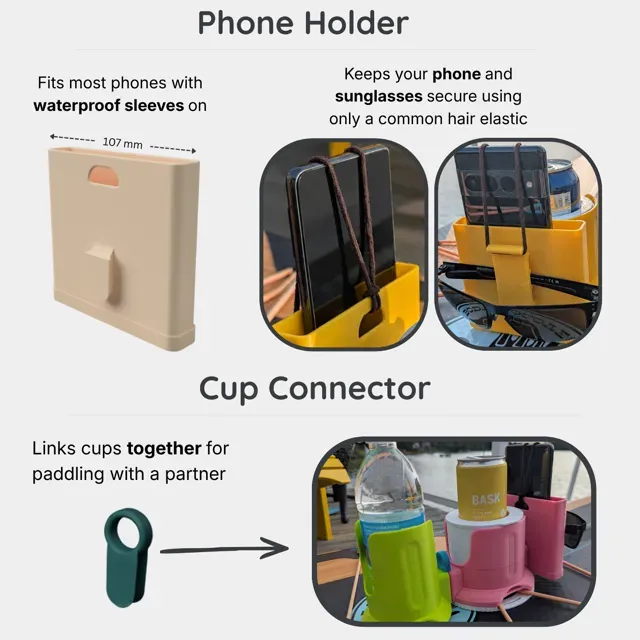

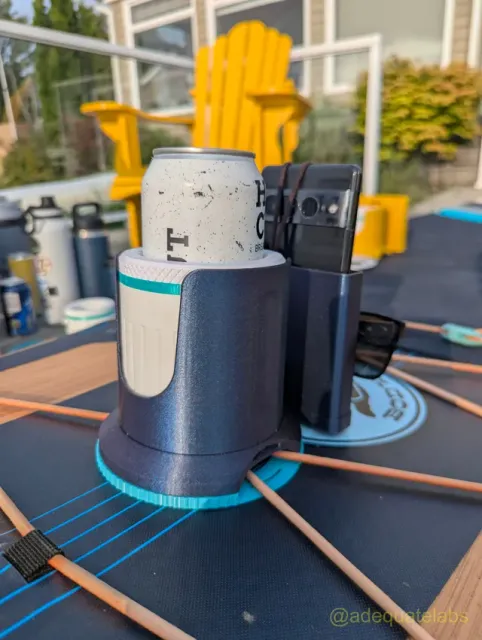

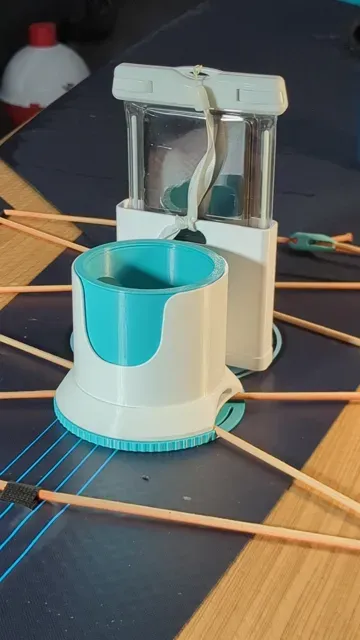

- 📱 Phone module: Clips onto the side of the cup. Fits nearly all flagship phones and waterproof phone sleeves. Loop a common hair elastic through the top to hold the phone and your sunglasses in place.
