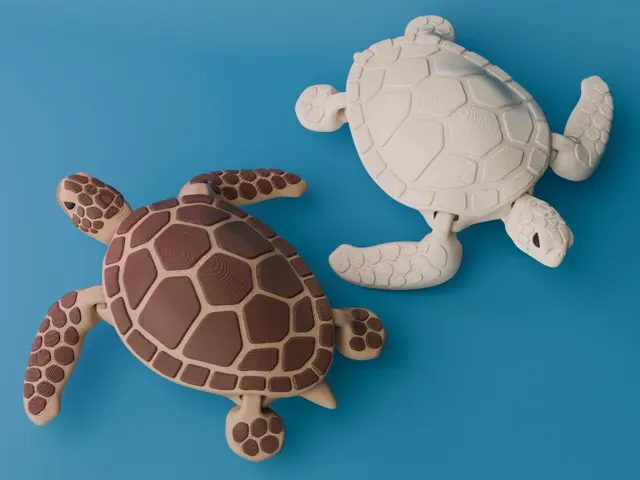

Articulated Sea Turtle (singlecolor & multicolor)

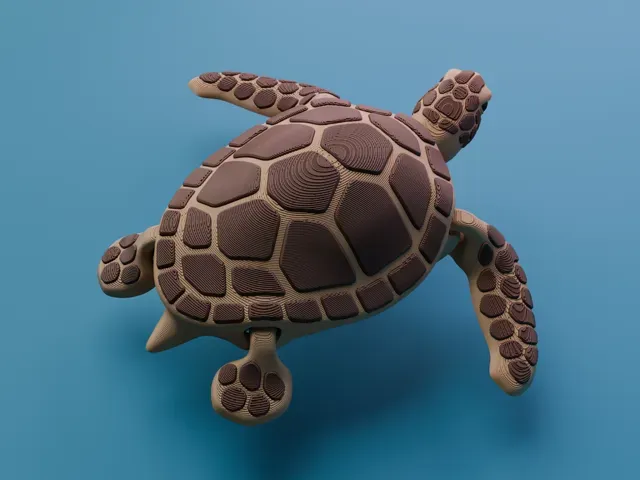

Articulated Sea Turtle (singlecolor & multicolor) — Image 2 of 4

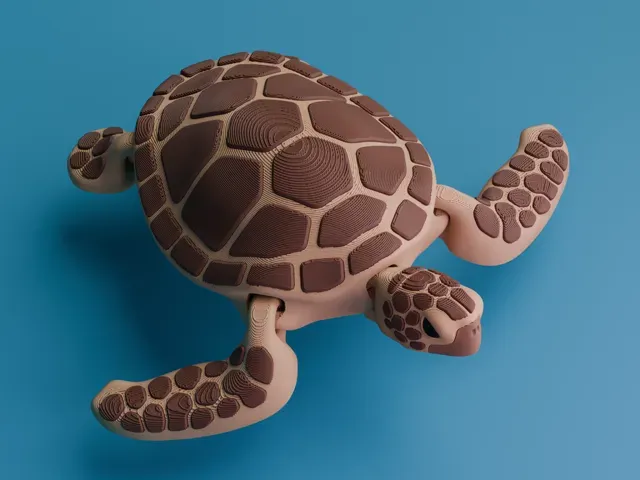

Articulated Sea Turtle (singlecolor & multicolor) — Image 3 of 4
Articulated Sea Turtle (singlecolor & multicolor) — Image 4 of 4
3D model · MakerWorld

Articulated Sea Turtle (singlecolor & multicolor)

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 10 528 Likes
  • 38 073 Downloads
  • 30 542 Makes
  • 23 547 Collected
  • 2 413 Boosts
  • 4 469 Comments
  • 0 Views

Author:Jopek Design

Published

Download on MakerWorld

Description

Dimensions (LxWxH)

132 x 150 x 32mm (100% scale)

Basic information

The design was inspired by the Green Sea Turtle, which is undoubtedly one of the most iconic sea animals.

The model is is split into 6 movable parts: a shell, which serves as a centerpiece, a head, and 4 fins. It prints in place, and no additional assembly is required.

The base model is slightly oversized, so that all the fine details come out nicely, namely if you're printing in multicolor. If you're printing it in a single color only, and aren't bothered with loss of definition too much, feel free to downscale it to your liking. The model has been thoroughly tested, and should print fine up to 60% of the original size in single color, if you have a well calibrated, and reasonably accurate setup.

Included files

I have included 5 files: All of them are in the .stl format, and sorted into 2 folders. The folders are labeled Single color and Multicolor , the single color folder contains 1 file, which is a plain, 1 piece version of the model, intended for single color printing. The Multicolor folder contains 3 files for multicolor printing, each file is named after the color, which was used on the example model in the image gallery. Import them all at once into your slicer as one file with multiple parts, and it should automatically align the parts, and assign an individual color to each of them.

Material

PLA

Layer height

0,2 mm

Infill

>15%

Support

None. The model doesn't require any support material.

Scaling

The model should come out perfectly functional even at lower scales. Tested up to 60% of the original scale. Results may vary depending on the accuracy of your setup and quality of the materials used.

Orientation

Default, laid flat on the belly

Adhesion aid

Not necessary, the contact area with the buildplate should be sufficient. However if your print surface suffers from poor adhesion, consider using an adhesive spray, or some other kind of adhesion booster. Using a brim is possible, but not recommended, as it would be too difficult, and inconvenient to remove afterwards.

All resolved past issues with the model files and detailed information about their fixes will be listed in this section. If you're having any problems which aren't on this list, please visit the Known issues section below. If you don't see your problem mentioned there as well, please leave us a message with more details, so that we're able to address it as soon as possible.

12/22/2024

- Updated the image gallery - Added new official .3mf project files compatible with Bambu Studio - Minor changes to the model description There currently aren't any known issues/work in progress. If you run into any, please contact me via dm.

My work is free for personal, non commercial use. If you want to sell, or monetize my models in any other way, please visit my Patreon for more licensing options.

Guides and print profiles

Print profiles and steps

Single color 70% 0.2mm layer, 3 walls, 15% infill

Full scale multicolor for AMS Multicolor for AMS, 4 colors

0.2 mm layer height

15% Gyroid infill

70% Scale multicolor for AMS Scaled down multicolor version

Saves time and material without sacrificing too much quality

0.2 mm layer height

15% Gyroid infill

2 Colors - 60% Scale - Quality (0.16 layer, 3 walls, 10% infill) - 2-Colors: Lower Body (green), Eyes (black) - Length: 8cm / 3.15" (60% scale)

- 0.16mm layer height - 3 walls, no visible infill - slower outer walls for beautiful finish - slower first layer for good bed adhesion

- some other minor tweaks

Multicolor_0.16mm layer, 3 walls, 10% infill

***31Minutes*** Fine detail 0.16mm layer, 2 walls, 5% infill (50% scale)

100% scale

0.16mm layer, 2 walls, 15% infill 0.16mm

0.4 nozzle

120% [max A1mini size], adaptive layer, 0.28mm layer, 2 walls, 10% infill

0.2mm layer, 3 walls, 15% infill 3 walls, 15% gyroid, .2 layer height

A slow 100% 0.16mm layer, 3 walls, 15% infill 0.16 layer height with a few modified settings just to get a smoother print.

Not a fast print by any means, I focused on quality & a reliable print over speed.

Also scaled it to 100%

100% scale multi-color, sturdy. 0.2mm layer, 4 walls, 30% infill Full size (150mm / 5.9") in multicolor ready for AMS printing (4 colors). Made sturdy with 4 walls/perimiters and 30% infill, I think this should hold up pretty well as a functional toy.

0.2mm layer, 2 walls, 15% infill

ColoredTail, 60% size x4, 0.16mm layer, 3 walls, 50% infill I colored the tail as the limbs to make it more reasonable. It's a good decoration for the aquarium! I tried 50% infill, but it still floats. You may try to fill more or insert some weight.

Swapping filament takes most of the time. The unit time cost goes down if you print multiples.

0.12mm layer, 2 walls, 40% infill Extra fine settings that came out really well. 0.12mm High Quality, 40% infill to make it more durable, and more fun to play with. iron type: Top surface

60% scale, MD Colors, 0.12mm layer (High Quality) Prints without supports, and quickly. Colors can be changed under print settings.

135% scaled for A1 Mini - 0.16mm layer, 3 walls, 10% infill Rotated diagonally on my A1 Mini bed to get maximum size possible to fit. This is a three color AM print.

I used PETG and generic PETG filament profile and this 3 color design took 19.5 hrs on my A1 Mini.

You may change to any filament type you like. This is awesome and it's worth the wait and filament in my opinion.

7 colors, Patterns on scales, custom profile and 100% Painted with objects and custon in Bambu.

7 Colors (color number 3 is not used)

1 day printing

Printed on X1C with 0.4 nozzle

MAX P1S scale 0.2mm layer, 2 walls, 15% infill …

4x Sea Turtles, 3-color, 0.2mm, 3 walls, 15% infill (TFT)

6x 3-color H2D 0.2mm layer, 3 walls, 15% infill (TFT)

4x Sea Turtles, 1 Color, 0.2mm, 3 walls, 15% infill (TFT)
