Sliding Lock | Locking Latch

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 1 852 Likes
  • 2 679 Downloads
  • 1 734 Makes
  • 5 923 Collected
  • 15 Boosts
  • 86 Comments
  • 0 Views

Author:Matthew Ghost

Published

Download on MakerWorld

Description

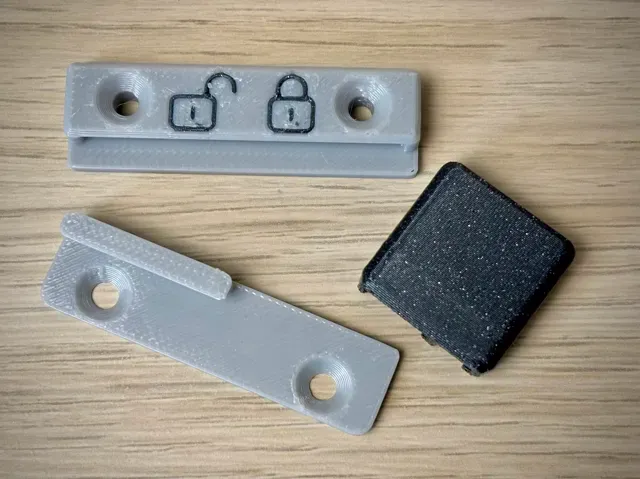

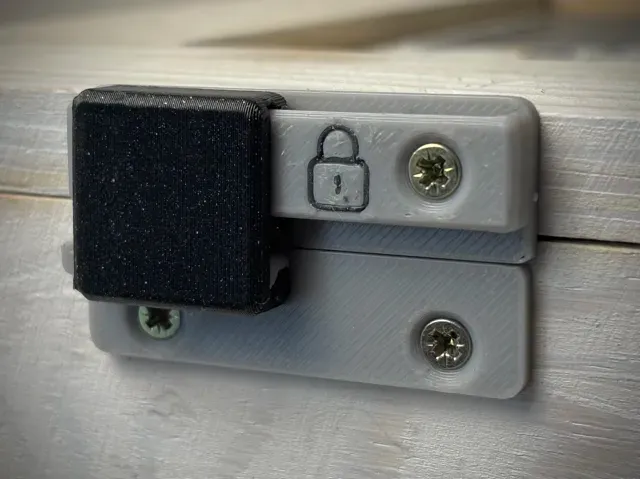

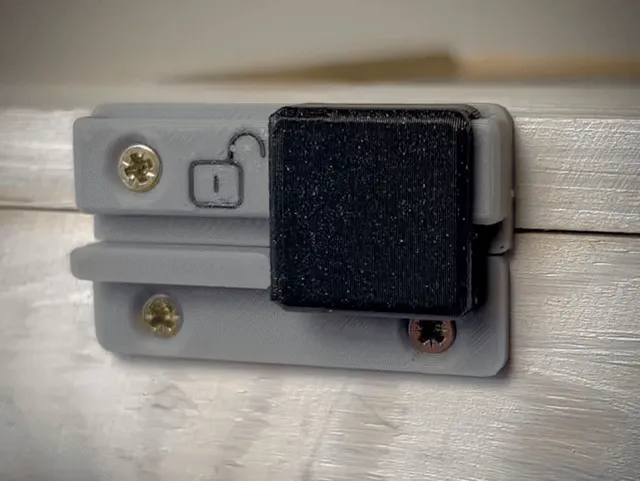

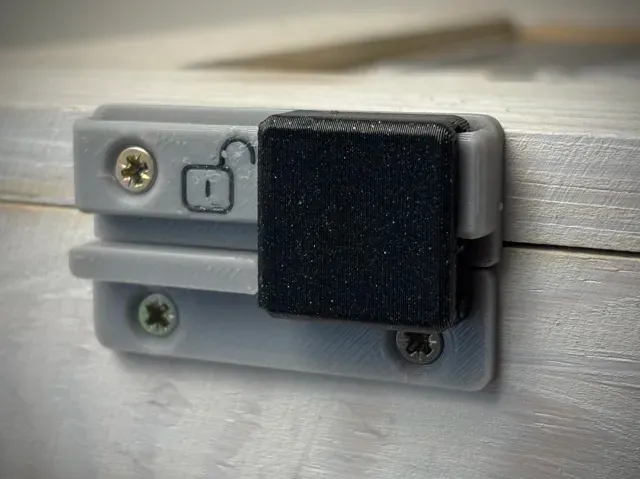

The Sliding Lock | Locking Latch is a small, universal locking mechanism that can be easily mounted anywhere with screws. It provides a simple and reliable way to lock or unlock by sliding the latch left or right 🔒

- Easy screw mounting ( Ø3.5 mm hole ) 🪛 - Smooth sliding action with locking positions - Compact size: 45×26×8.6 mm

Guides and print profiles

Print profiles and steps

Without AMS (0.2mm layer, 2 walls, 15% infill)

AMS (0.2mm layer, 2 walls, 15% infill)
