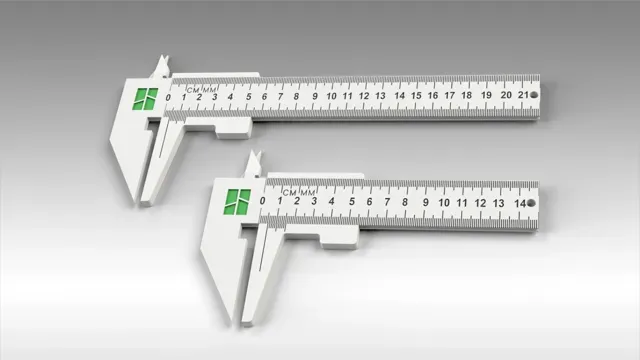

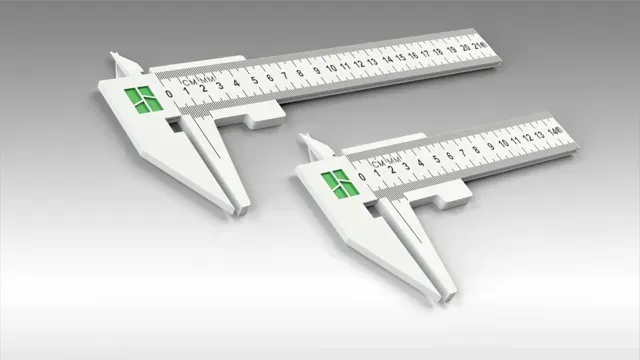

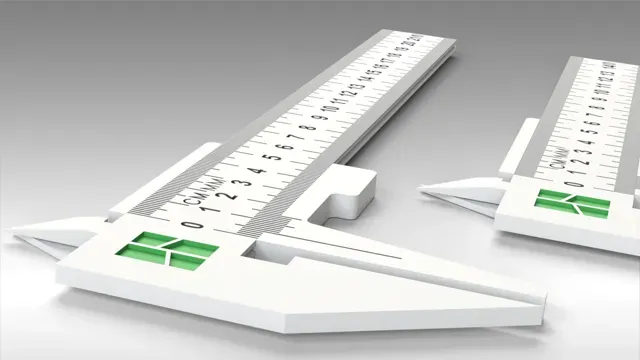

Vernier Caliper Ruler - Two Lengths

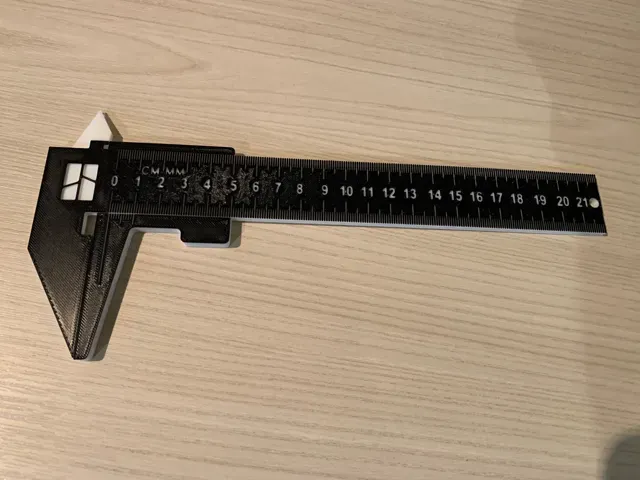

COLOR - 220mm LONG - 0.2mm layer, 2 walls, 15% infill COLOR - 220mm LONG

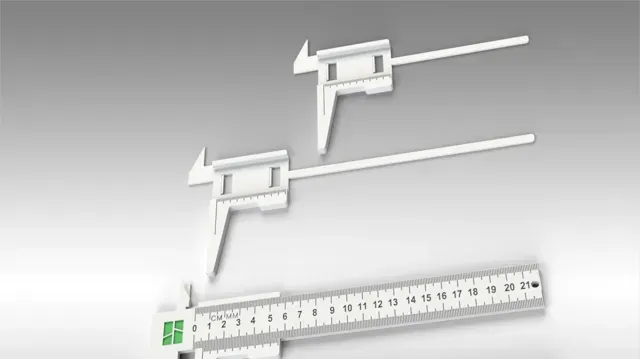

DEPTH GAUGE for Vernier Caliper Ruler 220mm Optional DEPTH GAUGE for Vernier Caliper Ruler 220mm COLOR

COLOR, 150mm LONG - 0.2mm layer, 2 walls, 15% infill COLOR, 150mm LONG suited for A1 Mini or larger print bed.

NO COLOR, 150mm LONG - .0.2mm layer, 2 walls, 15% infill NO COLOR, 150mm LONG suited for A1 Mini or larger print bed.

NO COLOR - 220mm LONG - 0.2mm layer, 2 walls, 15% infill NO COLOR - 220mm LONG

DEPTH GAUGE for Vernier Caliper Ruler 150mm Optional DEPTH GAUGE for Vernier Caliper Ruler 150mm COLOR

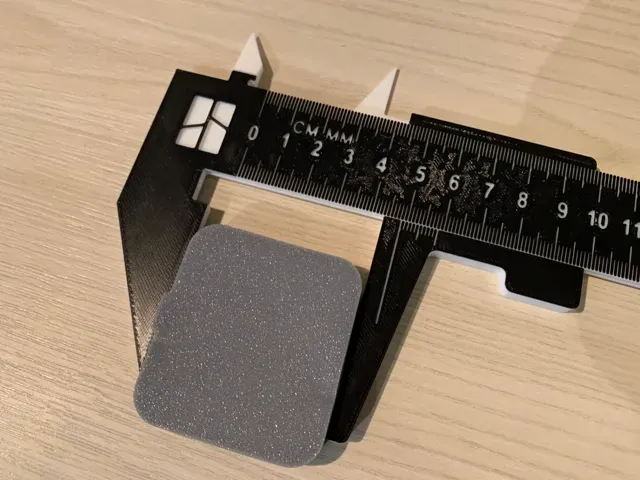

Caliper with depth gauge, No color, single color, 150mm Vernier caliper ruler 150mm with depth gauge on a single plate for the A1 mini (or bigger) 0.2mm layer 2 walls

15% infill

PETG 0.2mm layer, 2 walls, 15% infill 0.2 mm layer height

15% infill

0.2mm layer, 2 walls, 8% gyroid infill 0.2mm layer, 2 walls, 8% gyroid infill

Cauion:Never choose white as your base color, as it can easily show through.Please apply grease to the slide rail before assembly

Skala 0-10 Numbered 220mm Color 0.2mm layer

修改模型Modify the model 自然冷却再取模型Free cooling and then take the model

(TPU)_Stopper for the calipers Tested with TPU on the P1S.

A stopper for the calipers. Protects the depth gauge.

0.2mm layer, 2 walls, 15% infill.

Fuzzy Skin 0.1 & 0.1mm.

No supports, no brim.

Tested with TPU on the P1S.

22cm , PETG , 2 color

stoper only 0.16mm layer, 4 walls, 15% infill Just an end clip for the calipers to prevent it from disasembling and to hold the depth gauge. I lowered the outer wall width so the edges that hold the gauge can be printed more precisely.

I had no calipers to measure my calipers so it's not perfect but it does the job ;)

caliper

depth

gauge

0.2mm layer, 2 walls, 15% infill

Raised Lettering, Non AMS Compatible Raised the lettering portion by 2mm to increase contrast as my filaments were coming out translucent for the top.

Added a non-ams/manual colour change version, with a pause in the print for a manual colour change.

Also added the two halfs to be printed seperately if you want to reduce filament changes/waste - each part needs only 1 change per side but if printed together, there is a portion around 3-5mm where the colour has to be repeated changed back and forth.

It may be possible to get by with just 1mm but for those, you would need to download this print profile and tweek it yourself. I have left the sliced lettering portions on the outside of the plates.

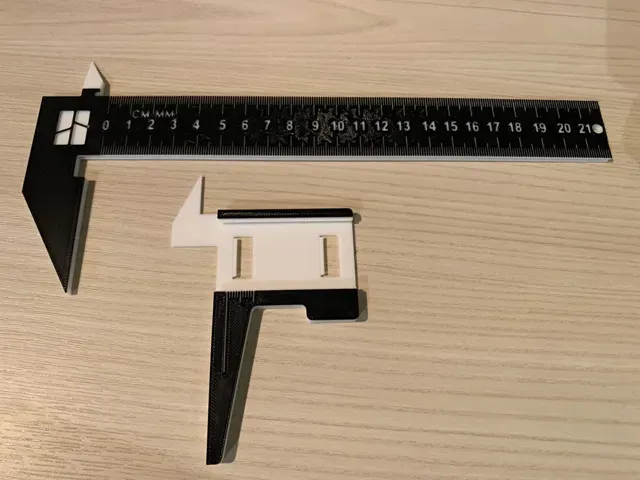

NO AMS - 3 Pauses for colour change This is an unedited design from the original No Color model NO COLOR - 220mm LONG - 0.2mm layer, 2 walls, 15% infill

I have added 3 Pauses for Colour change which makes reading the measurements much easier.

I went with Black on White but use whatever colours best work for your eyes.

Pause at layer 17 - Change to second colour

- This is where the mm lines begin to draw

Pause at layer 21 - Change back to original colour

- This is the layer after the main ruler lines are finished and gives the smaller part the original colour as a base so it matches

Pause at layer 26 - Change back to second colour

- This is where the mm lines on the smaller part are drawn
