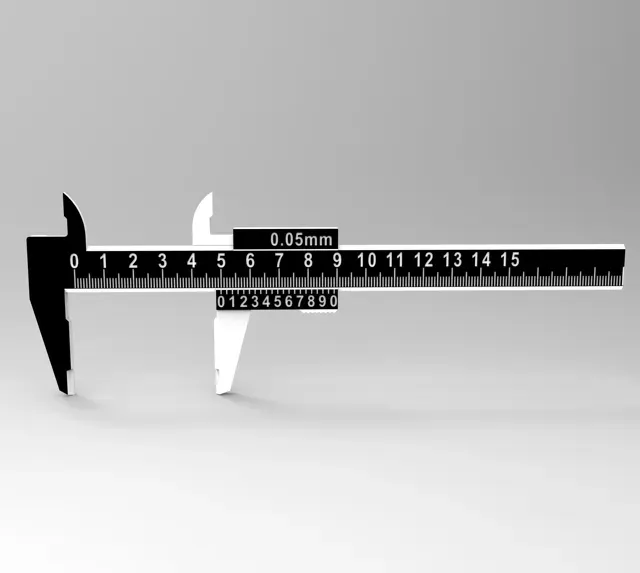

Vernier Caliper — Image 2 of 9

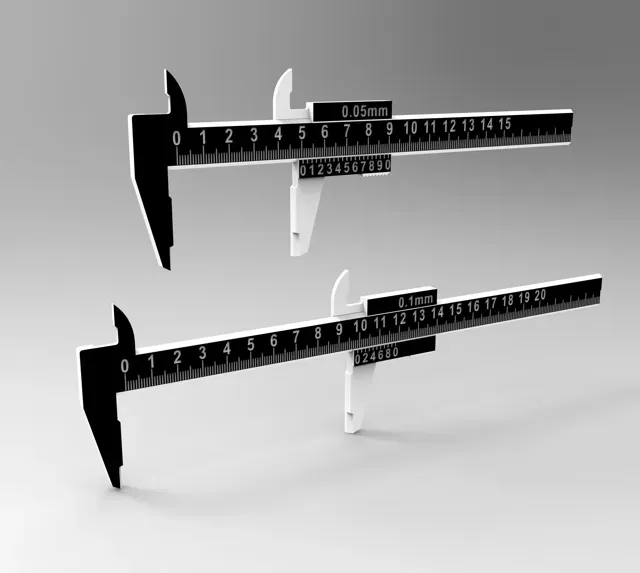

Vernier Caliper — Image 3 of 9
Vernier Caliper — Image 4 of 9

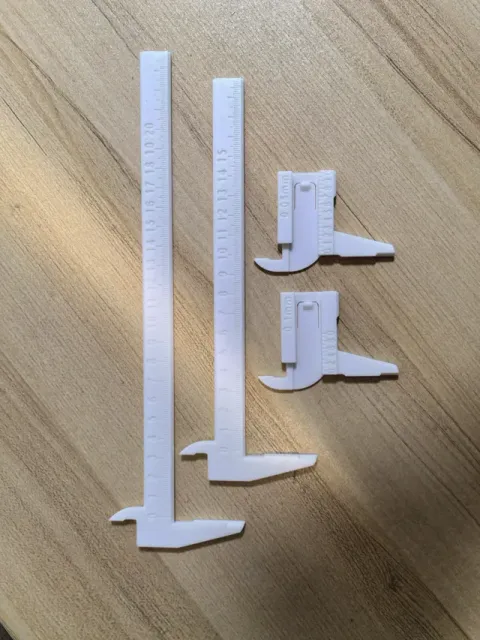

Vernier Caliper — Image 5 of 9

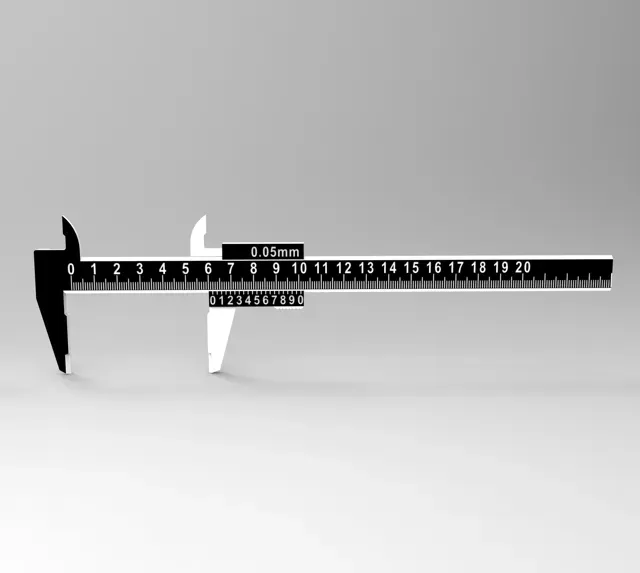

Vernier Caliper — Image 6 of 9

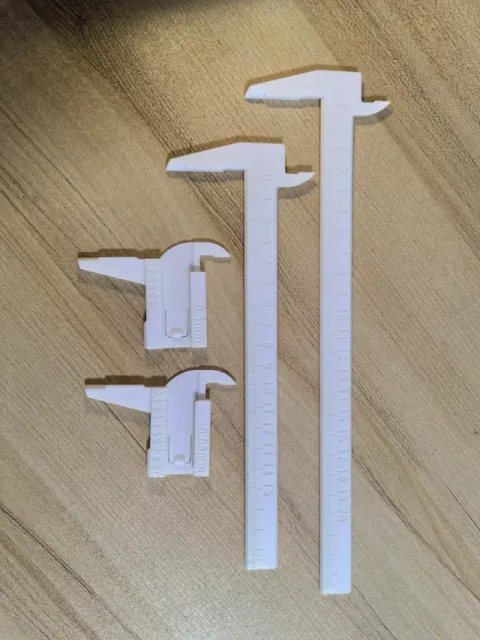

Vernier Caliper — Image 7 of 9
Vernier Caliper — Image 8 of 9
Vernier Caliper — Image 9 of 9
3D model · MakerWorld

Vernier Caliper

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 2 120 Likes
  • 13 754 Downloads
  • 10 527 Makes
  • 6 321 Collected
  • 207 Boosts
  • 918 Comments
  • 0 Views

Author:Su_sun

Published

Download on MakerWorld

Description

The caliper is easily printable and allows color changes during printing to highlight the text.

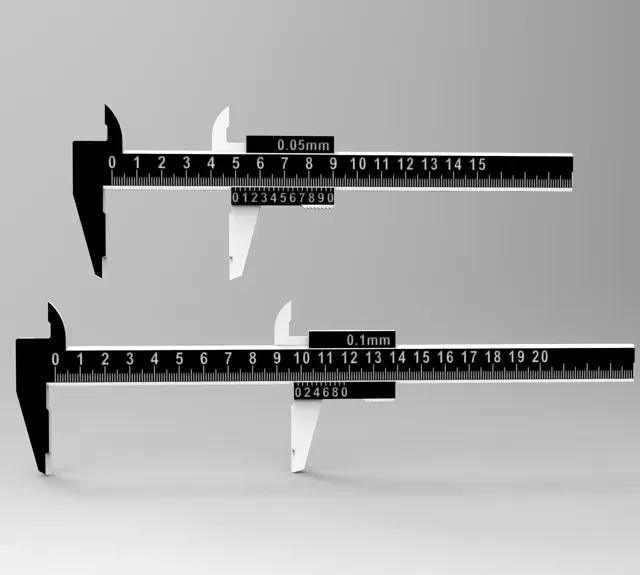

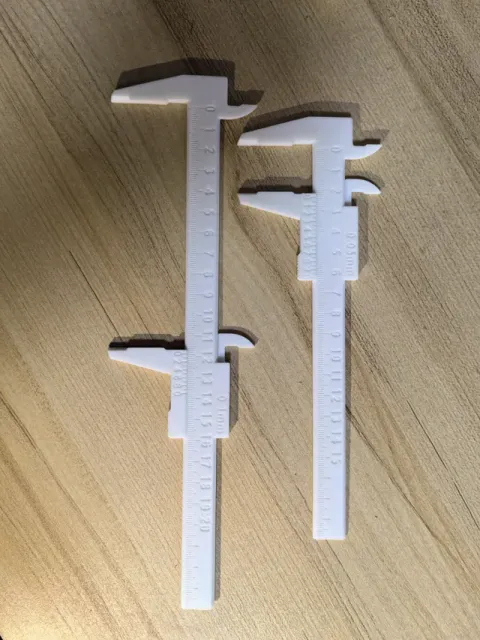

Two lengths to choose from, 150mm suited for A1 Mini or 200mm for larger print beds.

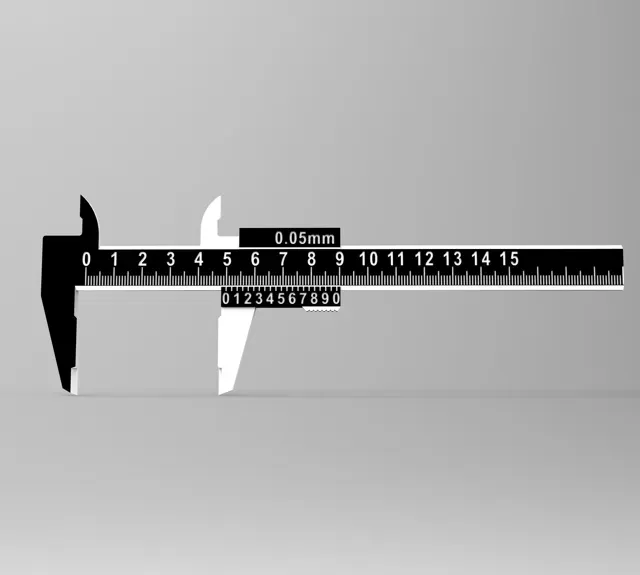

The resolution is available in 0.05mm and 0.1mm, and it can be mounted on both 150mm and 200mm rulers.

Any vernier and ruler body are interchangeable.

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill

0.2mm layer, 2 walls, 15% infill

0.15mm layer, 2 walls, 15% infill printed in a1 mini, textured plate Pretty accurate!

Print with pauses to switch color without AMS Print this on a smooth plate as textured will make the numbers hard to read.

Added a pause at start of layer 2 for the long of the long parts (name?).

- Start with dark color and swap to light color at pause

Added a pause at start of last layer for the small part with the 0.05 indents.

- Start with light color and swap to dark color at pause
