Description

Remix of : Good-TFT 5" + Pi 4B enclosure and mounting by TeachingTech | Download free STL model | Printables.com

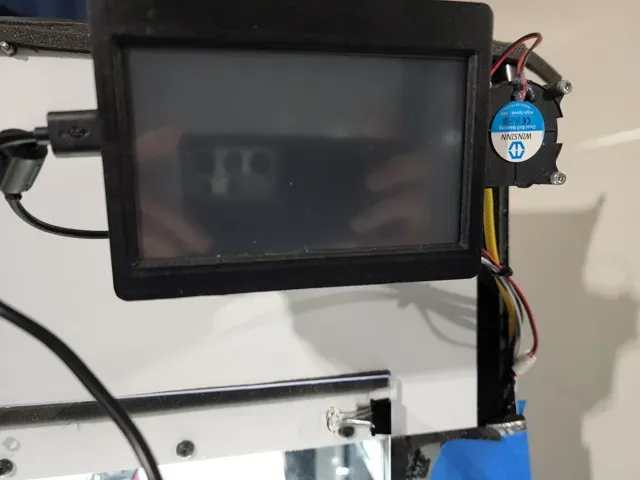

Modified it so you can add a 4020 fan to cool the pi as it gets quite hot..

you can set up a temperature fan and controll it with the Pi's temperature in klipper

For example here is my klipper config in the fans and heaters section:

[temperature_fan Pi] pin: PD14 kick_start_time: 0.8 shutdown_speed: 0 off_below: 0.1 max_power: 1.0 #fan_speed: 0.6 sensor_type: temperature_host control: pid min_temp: -40 max_temp: 85 #max_delta: 5.0 pid_kp: 1.0 pid_ki: 0.5 pid_kd: 2.0 min_speed: 0.1 max_speed: 0.6 target_temp: 38

Tags

screenraspberrypicasetftklipperseckit4020fanklipperscreensktank
