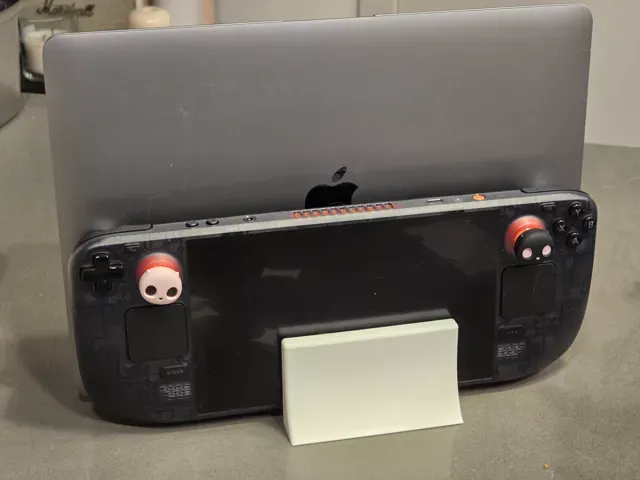

Modular Laptop Tablet Phone Vertical Stand/Holder — Image 7 of 7
3D model · MakerWorld

Modular Laptop Tablet Phone Vertical Stand/Holder

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 2 049 Likes
  • 9 096 Downloads
  • 7 252 Makes
  • 7 147 Collected
  • 543 Boosts
  • 657 Comments
  • 0 Views

Author:Alca

Published

Download on MakerWorld

Description

Modular vertical stand for all your standing needs!

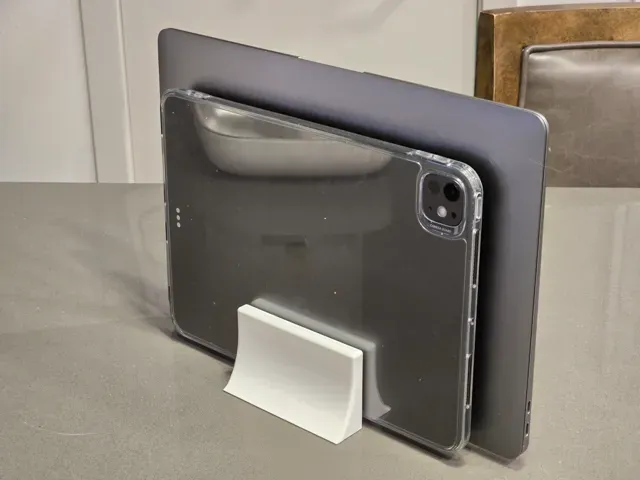

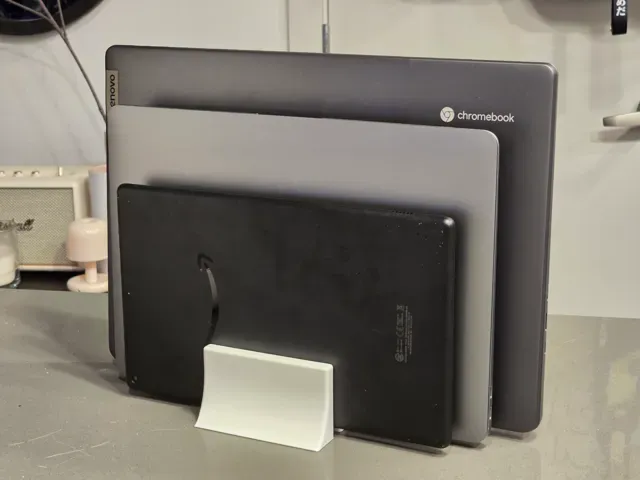

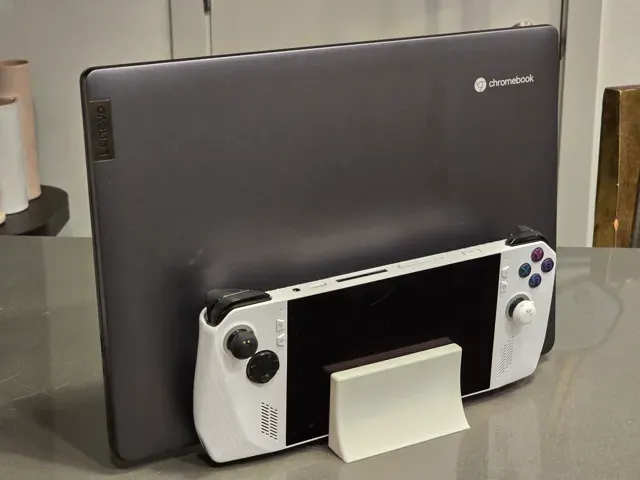

Including tablets, laptops, phones, gaming handhelds, anything that's slab shaped and can be fit into a rectangular space, you can stand it up! Another episode of “I didn't find exactly what I needed so I made my own” series, enjoy!

Edit Nov 24 2024: Added clips of thickness of 26, 28, 30, 32.5, 35, 37.5 and 40mm. Rearranged the clips so the print profile doesn't have a ton of print plates. Edit Oct 17 2024: I've updated the print plate to include all thicknesses ranging from 10mm to 24mm in a 2mm increment for your convenience.

Main features:

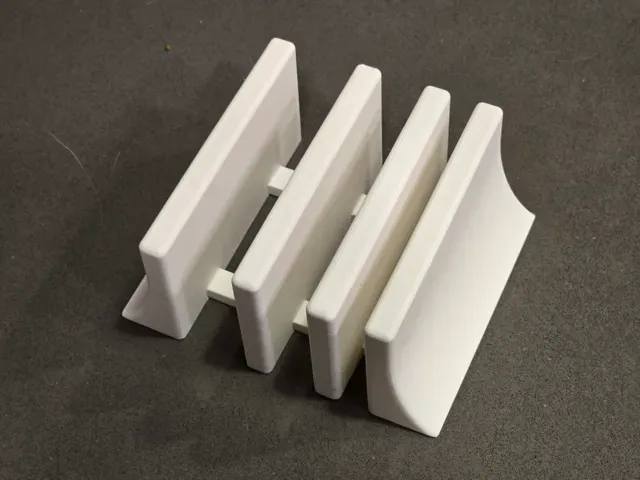

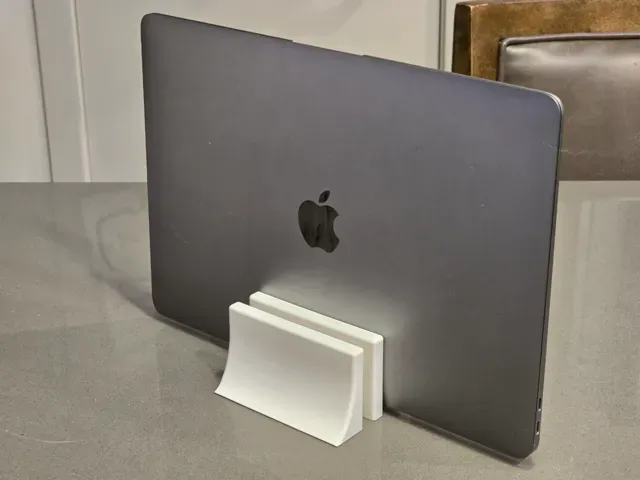

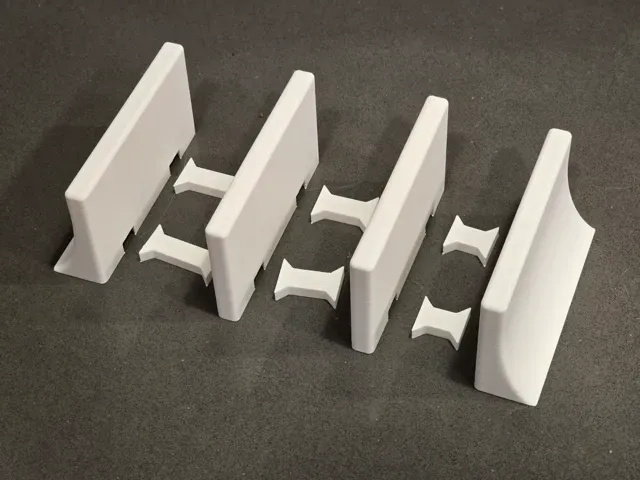

- Modular! Fit however many things, however thick of a thing, in whatever order you like . - Minimalist symmetrical streamlined look and sturdy enough holding things stationary. - Easy and fast to print, no support needed and does not consume a ton of filament . The sample print plate profile includes two middle pieces, two side pieces, and two 12mm (eg: Samsung S24U w/ case) and 16mm (eg: MacBook Air M1) clips respectively. - Easy to put together and take apart. If you want to add another device, just print an extra middle piece and two extra clips. - Easy to modify for a specific thickness. This stand works the best if the thickness is within +-2mm of tolerance. I've already provided thicknesses ranging from 10mm to 30mm in a 2mm increment and 32.5mm-40mm in a 2.5mm increment. You can - Download the .stl file yourself - Slice the model in half - Add/remove the extra thickness you want - Splice the two parts back together - You get a clip that can fit however thick of a thing you want! Boost Me Boosting is free and you get points too! Click the 'Boost Me' button if you like my model!

Guides and print profiles

Print profiles and steps

0.28mm layer, 2 walls, 15% infill Using support is NOT required and NOT recommended. The tolerance has already been accounted for.

Clip sizes from 10-30mm with a 2mm increment and 32.5-40 with a 2.5mm increment have all been included.

I find 0.28mm + variable layer height and 2 walls to be quite satisfying already.

0.28mm layer, 2 walls, 15% infill

A1 mini profile with various sizes included Same as main profile of designer but with possibility to print from A1 mini with all different sizes clips.

I find that sometimes to fit pieces you may need to adjust clips to scale by 95-99%

IMPROVED V2 - Strnger+texture 0.2mm layr, 2 wall, 15% infl UPDATED VERSION 2: TLDR: Redesign adds numbers on the clips and improves part strength/appearance.

Improvements: MAJOR: - Added texture (fuzzy skin) to hide the 3d print lines in the curve and improve appearance. Old version has very noticeable layer lines. (newer feature) - Added numbers to all clips. Reduces the number of times you need to use a calipers to adjust. - Single build plate can now print 3 slot holder sent directly from the app. Common clips are all on the plate and can be skipped to customize. Additional build plate for rare larger sizes.

Minor: - Increased parts height by 20% to improve stability and strengthen the clips. - Added alternating layer-lock to significantly increase strength in the clips without adding weight. (newer feature) - Decreased layer height to .20 to improve surface appearance without adding weights. Additionally increases strength by 52% (going to .16 would further improve by another 15% if needed) - Added ironing to the topmost layer to clean it up.

Cons: Slightly longer print time. Increased material by 8%. increases standoff from surface by 1mm.
