Heavy Duty Spool Wall Mount (for 20 mm Rod)

Tired of flimsy spool holders that can't handle the weight? This robust 3D-printable spool holder system is designed specifically for heavy-duty applications , providing exceptional stability and smooth rotation even under significant loads.

While originally conceived for 3D printer filament spools, its true strength shines when repurposed for industrial or hobbyist storage. I personally use empty filament spools to organize and store my electrical cables . When nearly full, these spools can quickly reach several kilograms (multiple pounds, 25m of H07V-K 16 mm² => 4,25 kg) , and standard holders simply don't cut it.

This design is engineered around readily available 20mm aluminum round rods (or similar stiff materials like steel or carbon fiber tubes) for maximum rigidity. It includes thoughtful features to ensure your valuable materials remain neatly organized, secure, and easily accessible.

Key Features:

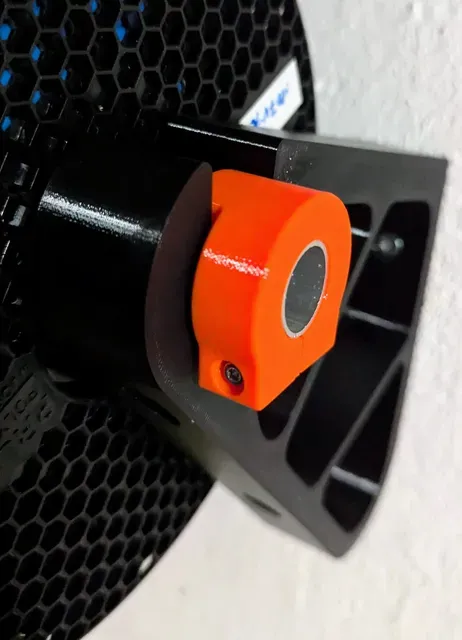

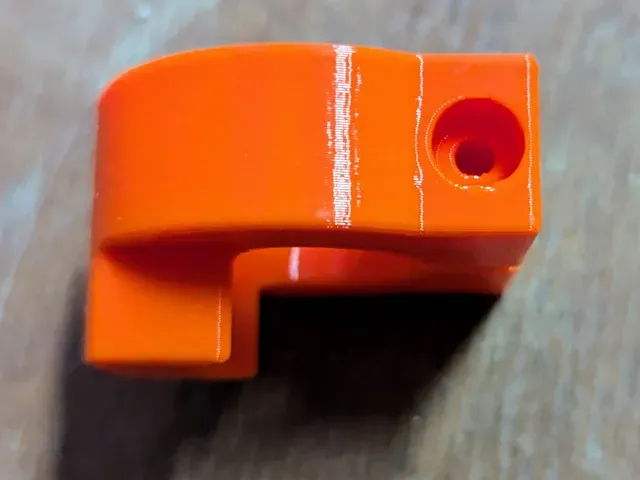

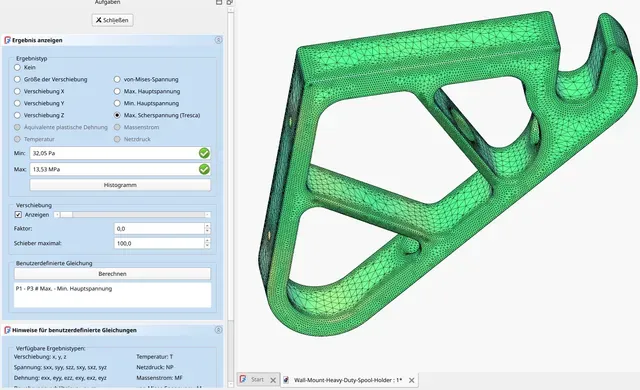

- Exceptional Stability: Wide base prevents tipping, even with heavy, unbalanced spools. I have rods on my wall with 6 spools of electric wire, weighting around 25 kg in total. - Designed for 20mm Rods: Perfectly optimized for common 20mm aluminum round stock, providing superior strength and rigidity for heavy loads. - Robust Construction: Engineered to withstand significant axial and radial loads from weighted spools. - Smooth Operation: Low-friction design (or space for optional bearings) ensures easy unspooling of cables or filament. - Versatile End Clamps Included: - Version A (with Pin): Features an integrated pin designed to engage with the slot on the holder side, effectively preventing the entire rod and all spools from rotating when unspooling. Ideal for managing multiple spools side by side. - Version B (Ring-Type): A simple ring clamp without the pin, perfect for general spool retention when rotation is desired or to simply add a stop on the rod. - Enhanced Clamping Force: The end clamps are intelligently designed to accommodate an M3 heat-set insert (for a 4.2mm pilot hole in the printed part) instead of a regular nut. This allows for significantly higher and more reliable clamping force on the 20mm rod, ensuring the clamps stay firmly in place under tension and vibration. - Versatile Use: Ideal for large filament spools, and perfectly suited for repurposing empty spools for heavy wire, rope, or other bulk material storage. - Easy to Print: Designed with 3D printing in mind, minimizing the need for supports (I need none). - Mounting: Use 4.5 or 5mm Screws and 6 mm dowel (I used TRI 6x51 dowels and 4.5x70 Chipboard Screw, Countersunk Head, Torx TX25 Drive) - Slot-Insert for the rod : Since the holder has a slot instead of a simple hole, even really heavy rods with many heavy spools on it can be simple slided in, even with the pinned version of the end clamps. - Mechanical Simlation: I also executed some FEM simulations to see the load distribution and how the hinge will bend down under load (see images attached) Print Settings Recommendations:

- Material: PETG or ABS recommended for strength, rigidity, and creep resistance under sustained load. PLA might work for lighter loads but could deform under heavy weight over time. - Infill: 20-30% or higher for critical structural parts (e.g., clamp bodies, base). I used 3D Honeycomb in PrusaSlicer. - Perimeters/Wall thickness: 3-4 walls for maximum durability. - Nozzle size: 0.4mm or 0.6mm (larger nozzle for faster print and stronger parts). - Heat-set Insert Installation: Ensure your printer maintains dimensional accuracy for the 4.2mm holes to allow for easy and secure heat-set insert installation.
