Hot Wheels Track Clamp

This design was originally modified from the official Prusament PETG clamp for a creative different use case.

I couldn't find a good Hot Wheels track clamp so made some modifications of Ruan Boer's design. I wanted a clamp that could also serve as a good starting point for the track which means it also needs an angled connector.

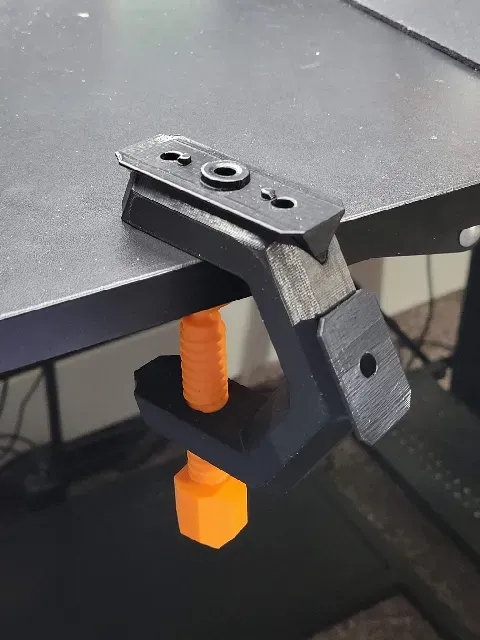

This design can connect 2 tracks and serve as the starting point with the angle starting piece. It uses the original Prusament Screw.

Summary of changes to Ruan Boer's design: - Added an angled 2nd track connector piece. - Slightly decreased the threaded screw hole diameters to 2.75mm. The screws self tap into the clamp as you tighten them. I made the hole slightly smaller to allow more threading and a tighter fit. - Increased the screw through-hole diameter of the connector piece because it was a little tight for me. Now the screw freely fits through those holes.

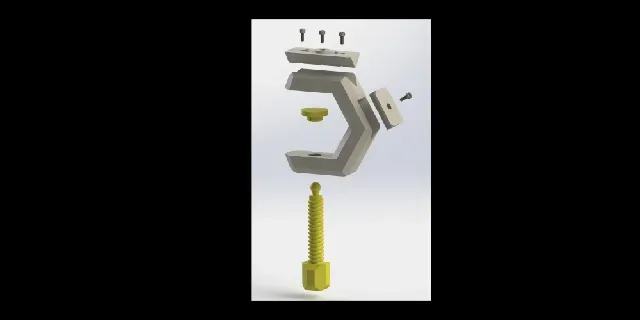

Part List: 1X Clamp 1X Long Connector 1X Prusamentpet_jaw 1X Prusamentpet_screw 4X M3 x 8mm Socket Cap Screws (M3x6mm would also work)

A quick overview of some of the modification history: @Toneykey_213886 - first modification of the Prusament clamp and added the track connector made by @mwoonkey.

@RuanBoer_2293574 - upgraded this design to make the track design a separate piece which is useful since this is the part most likely to break. You can then print a new connector and screw that in.

Happy racing!
