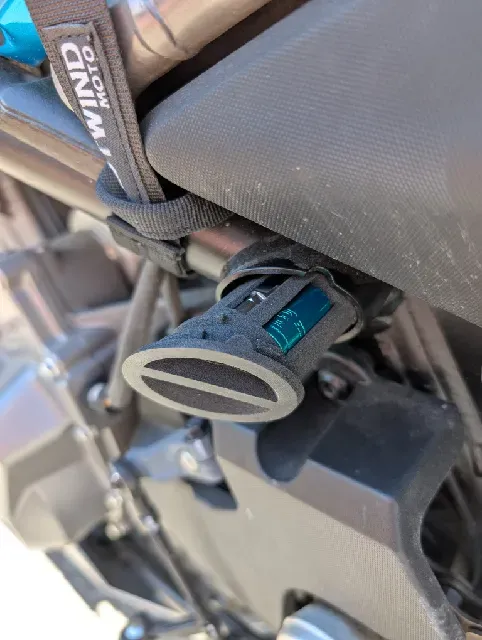

CFMoto Ibex 450MT Tool Tube

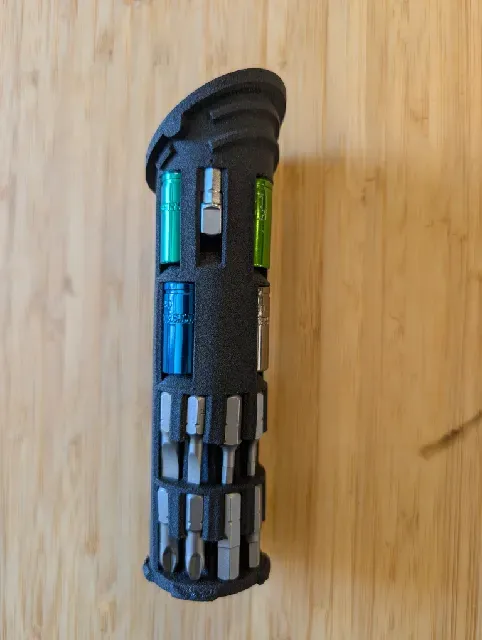

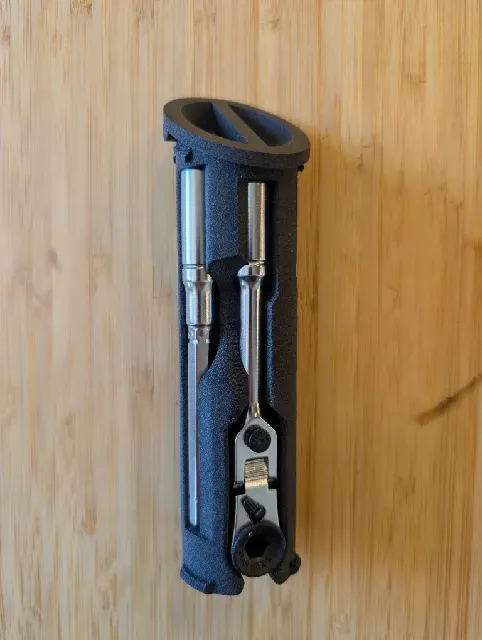

This is a tool tube for the CFMoto (Ibex) 450MT. It has been customized to store the Icon mini ratchet & extension, Harbor Freight 1/4" 8/10/12/13mm sockets, and up to 10 hex bits. Inspiration came from the design on Uncle Wang's Shop.

Fusion file is included in case you want a starting point to make a tube of your own. I've put the initial tube generation into the first grouping, so you can just roll back to there and have at it. This model leaves about 80mm to work with on the other side.

This should only be printed in flexible filaments (I used foaming TPU). Use auto alignment or specify to print on the plug face, forcing it to print at an angle. Printing using .16mm layer heights makes supports unnecessary. Supports were avoided because foaming TPU is nasty when moving between objects. Having supports wasn't a big deal with traditional TPU while I was prototyping. There is a parameter "gripAmount" in the fusion file, which may need to be relaxed if printing in TPU harder than 75A.
