Good-TFT 5" + Pi 4B enclosure and mounting

This is an enclosure for a Raspberry Pi 4B attached to a Good-tft 5" touch screen. Suitable for Octoprint, Klipper Screen or similar. I designed it to fit on both my Seckit SK-Tank and Rat Rig V-core 3.

Source CAD if you want to remix: https://cad.onshape.com/documents/57448dcb08c03a7e1b07ec93/w/5364edd7985b8c3581def649/e/ad0b281c616f329ca868c8fd?renderMode=0&uiState=6232b61ae68bd936fad0d6c3

Modelled with help of this model: Raspberry Pi 4 model: https://grabcad.com/library/raspberry-pi-4-model-b-1

I purchased the TFT from here (Pi 4B version): https://littlebirdelectronics.com.au/products/5-inch-lcd-hdmi-touch-screen-display-for-raspberry-pi-4

Instructions to setup TFT on Pi: http://www.lcdwiki.com/5inch_HDMI_Display#How_to_use_with_Raspbian.2FUbuntu_Mate.2FWin10_IoT_Core_System

Klipperscreen is covered in this video:

This specific version covered in this video:

All parts print without support. PLA is fine unless your Pi is running very hot.

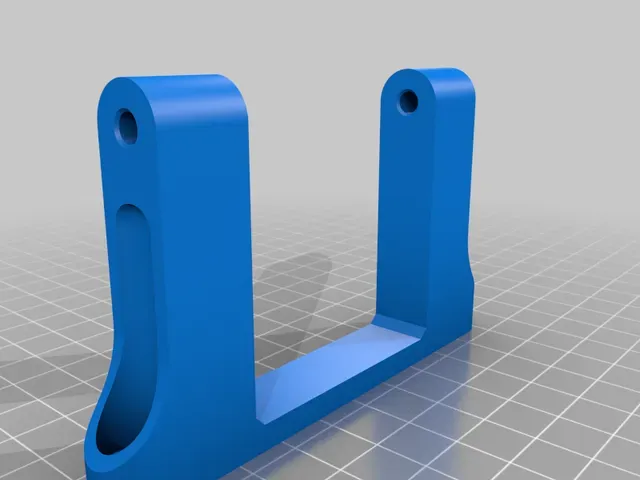

- The Raspberry Pi slides into the front housing. - The inner brace then clamps the Pi in place. Two M3 x 8 counter sunk bolts secure the brace. - Slide anchors in from the rear through the rear lid. M3 x 18 mm bolts for each anchor. The standard rear lid is to suit four anchors. The alternative version is to only suit three, and creates a passage way and space to run a dedicated power cable which can be soldered onto the SMD header of the TFT. - Rear lid attaches to front housing/internal brace with three M3 x 12 mm countersunk bolts. - Mounting foot attaches to anchors with two M5 x 30 mm bolts. - Attach mounting foot to printer. Spacing is 90 mm to suit Seckit SK-Tank but this will also bolt to V slot extrusion too. Category: 3D Printer Parts
