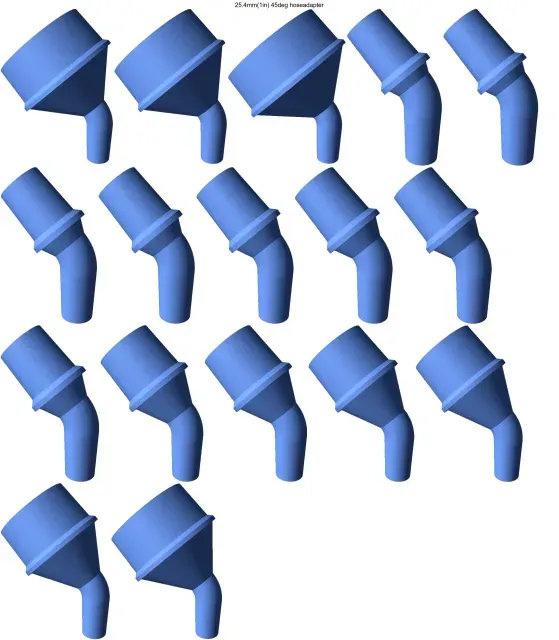

45° elbow vacuum hose adapters for all common sizes — Image 3 of 20
45° elbow vacuum hose adapters for all common sizes — Image 4 of 20

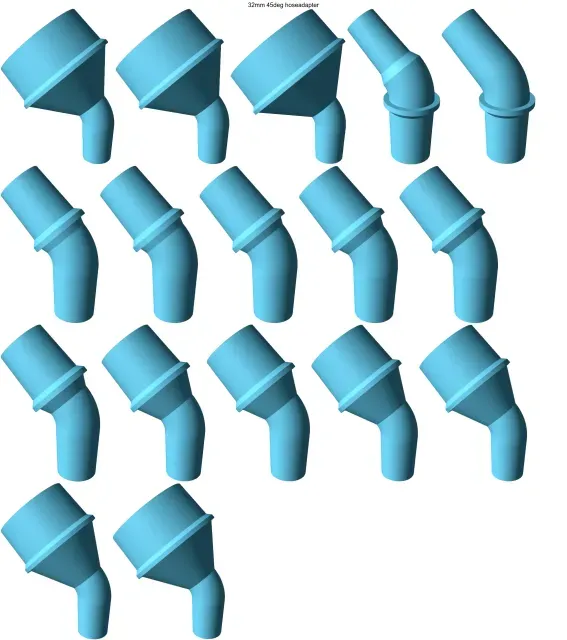

45° elbow vacuum hose adapters for all common sizes — Image 5 of 20
45° elbow vacuum hose adapters for all common sizes — Image 6 of 20
45° elbow vacuum hose adapters for all common sizes — Image 7 of 20
45° elbow vacuum hose adapters for all common sizes — Image 8 of 20

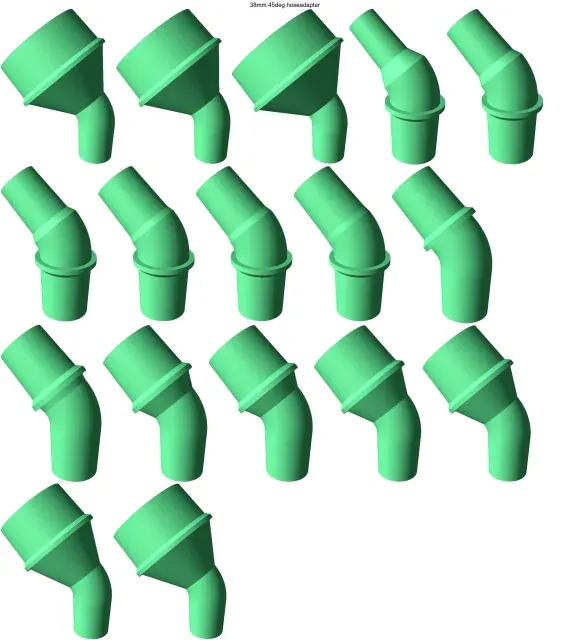

45° elbow vacuum hose adapters for all common sizes — Image 9 of 20
45° elbow vacuum hose adapters for all common sizes — Image 10 of 20
45° elbow vacuum hose adapters for all common sizes — Image 11 of 20
45° elbow vacuum hose adapters for all common sizes — Image 12 of 20

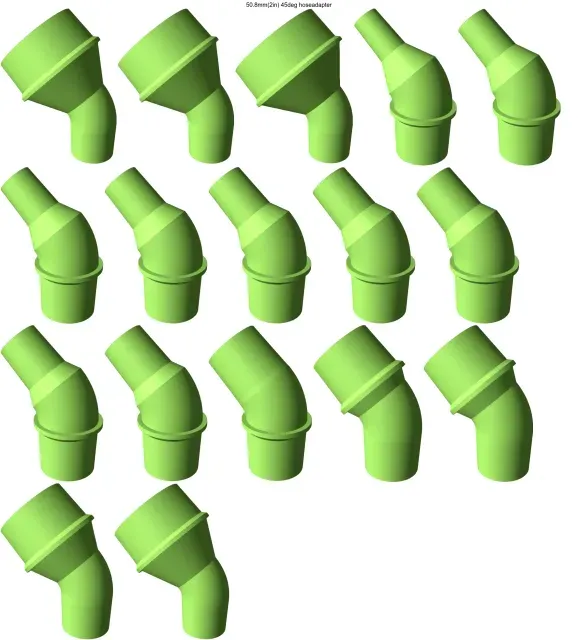

45° elbow vacuum hose adapters for all common sizes — Image 13 of 20
45° elbow vacuum hose adapters for all common sizes — Image 14 of 20

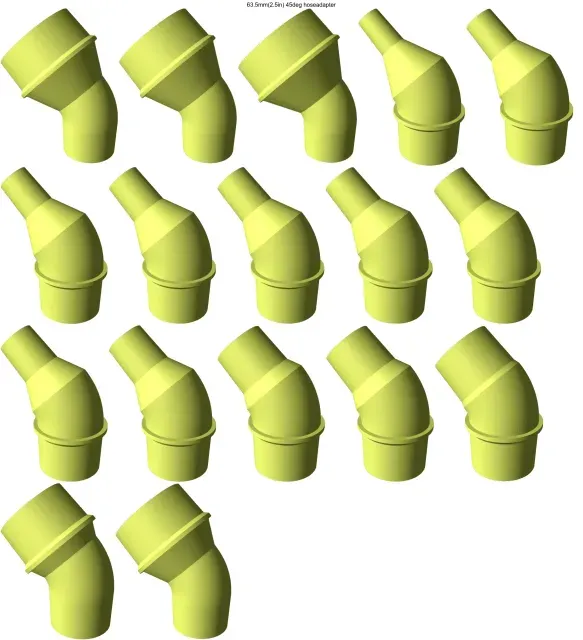

45° elbow vacuum hose adapters for all common sizes — Image 15 of 20

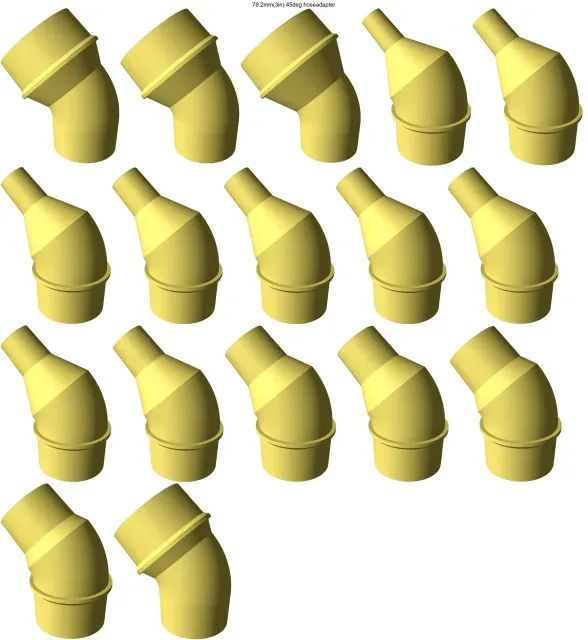

45° elbow vacuum hose adapters for all common sizes — Image 16 of 20

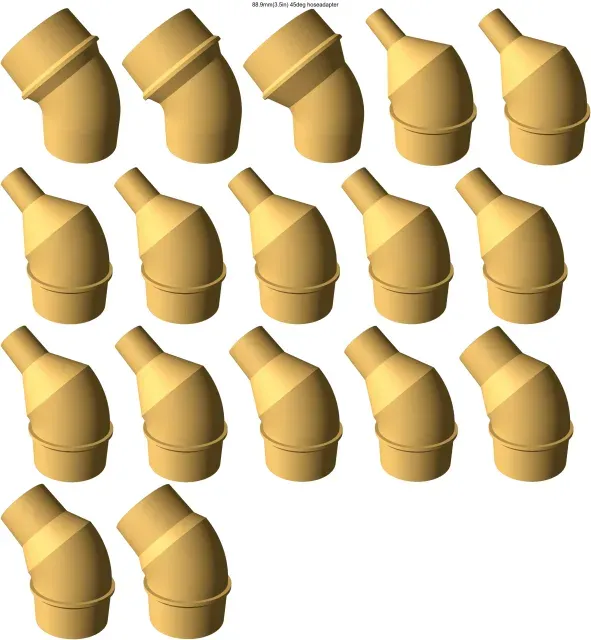

45° elbow vacuum hose adapters for all common sizes — Image 17 of 20
45° elbow vacuum hose adapters for all common sizes — Image 18 of 20
45° elbow vacuum hose adapters for all common sizes — Image 19 of 20

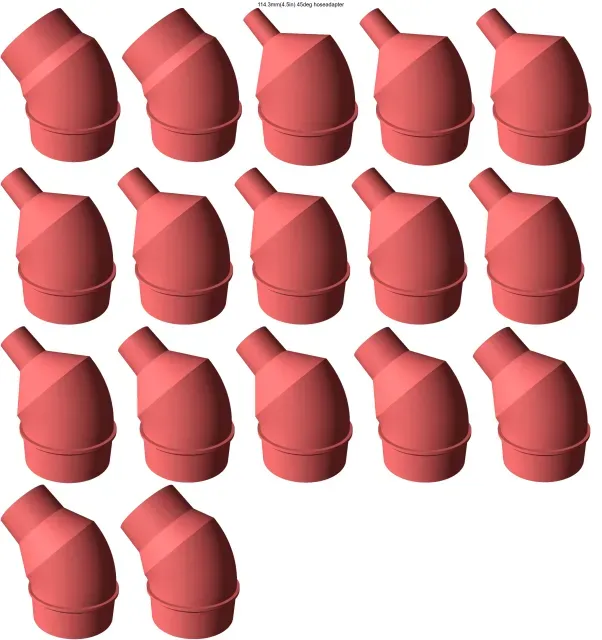

45° elbow vacuum hose adapters for all common sizes — Image 20 of 20
3D model · Printables

45° elbow vacuum hose adapters for all common sizes

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL
  • 139 Likes
  • 770 Downloads
  • 3 Makes
  • 3 Comments
  • 3 054 Views

Author:Max

Published

Download on Printables

Description

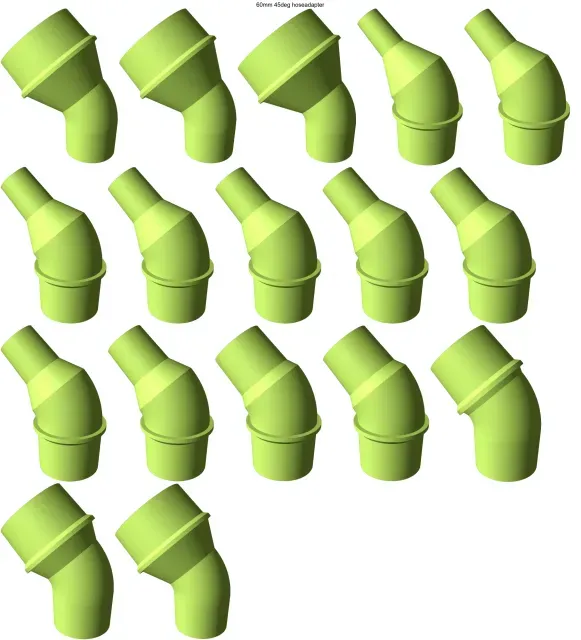

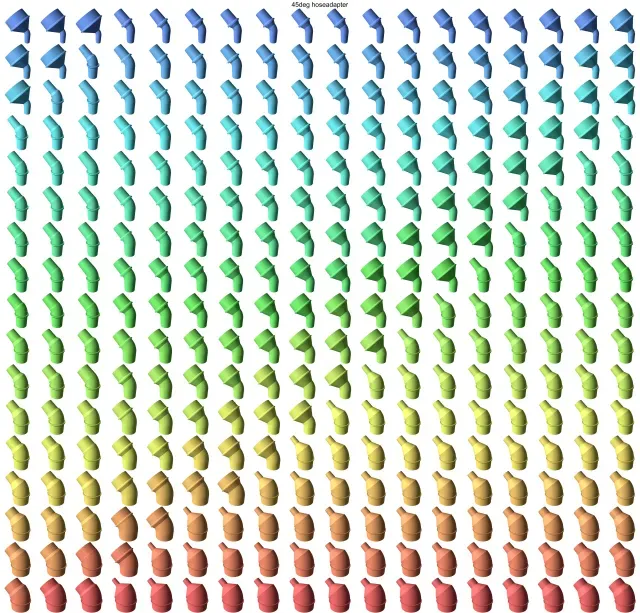

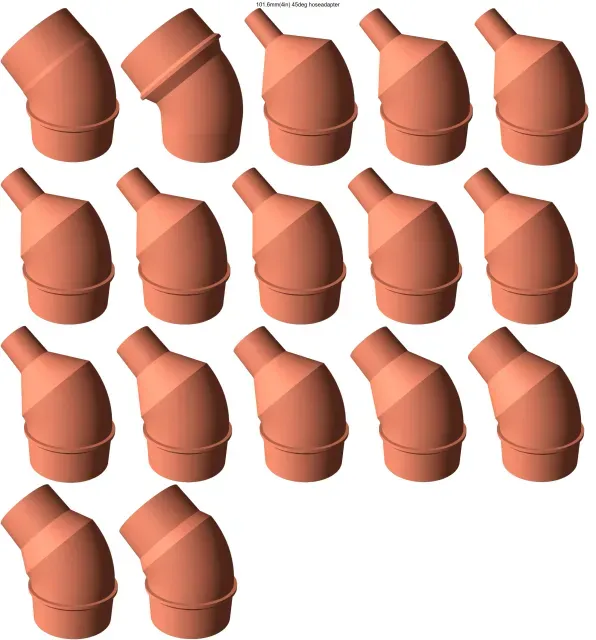

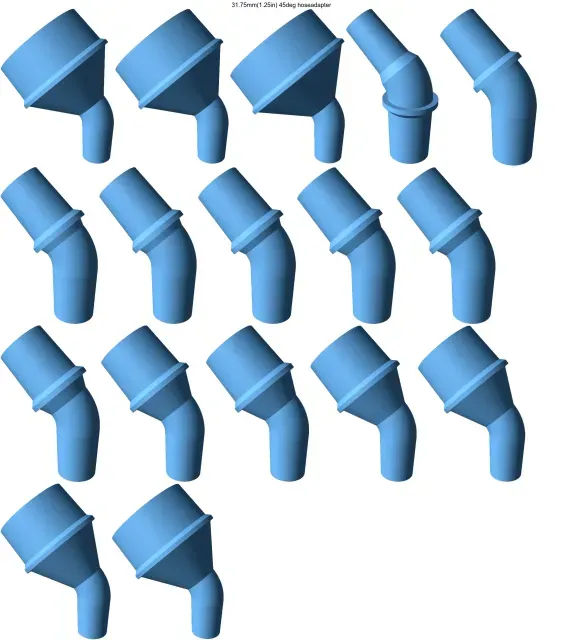

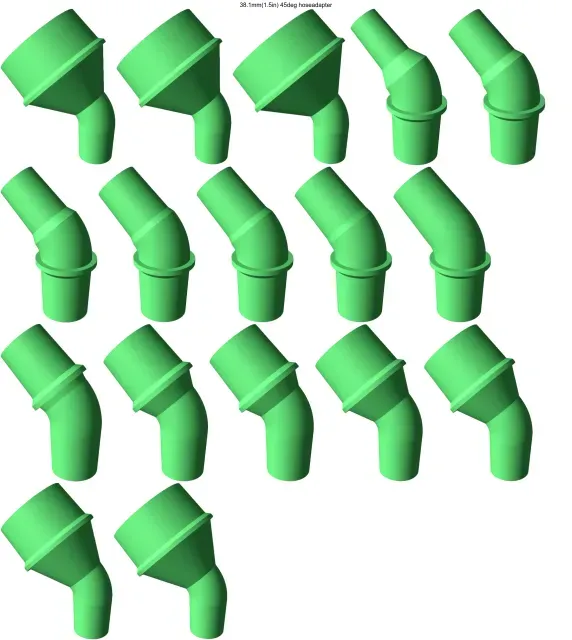

Hose adapters with a 45deg bend for all common (at least what I could find online) hose sizes.

All adapters have:

- Sizes are for the inside of the hose (outside of the adapter) - 40mm long connector at each end - 3mm taper on each connector, from -1.5 to +1.5 - Wall thickness of 2mm - A hose stop on the large end Also generated are:

- Straight hose adapters - 30° elbow hose adapters - 30° tapered elbow hose adapters - 45° elbow hose adapters - 45° tapered elbow hose adapters - 90° elbow hose adapters - 90° tapered elbow hose adapters - 100mm magnetic hose connectors - 50mm magnetic hose connectors These were generated to make it easier to consume, if they don't suit however you can use the Parametric model to customise your own, or let me know and I can generate it.

Project homepage https://github.com/ostat/vacuum-hose-adapter-openscad
