LED Strip Mount Angle Brackets and Join Plate for use with upper Gantry Printers like the AO-10x, Mendelmax or the TAZ

Be sure and take a look at the latest version of these lightbars here: http://www.thingiverse.com/thing:1803781

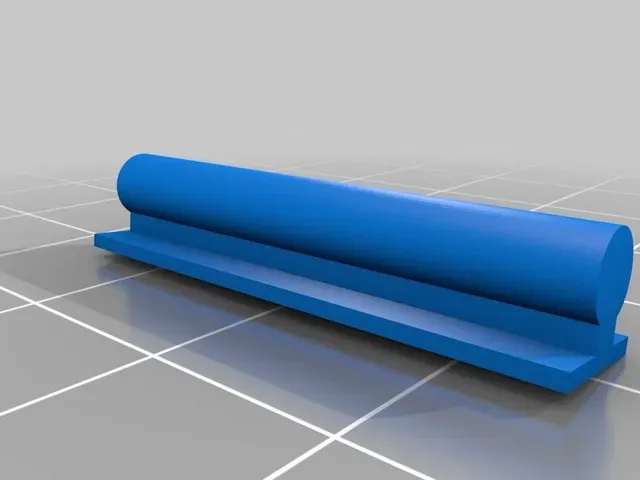

This is a simple re-angle of the existing LED mount clips by Flurin, to allow the LED strip to point down towards the heated bed. It could be used for a side gantry mount as well. The join post allows for two LED strip mounts to be joined for a longer overall strip.

You will need the LED strip holders themselves from Flurin's project.

Print instructions

Category: 3D Printer Parts Summary

Be sure and take a look at the latest version of these lightbars here: http://www.thingiverse.com/thing:1803781

This is a simple re-angle of the existing LED mount clips by Flurin, to allow the LED strip to point down towards the heated bed. It could be used for a side gantry mount as well. The join post allows for two LED strip mounts to be joined for a longer overall strip.

You will need the LED strip holders themselves from Flurin's project.

Instructions

Prints just fine with a .5mm nozzle. You will need 2 of the LED strip mount pieces from Flurin's project as well. The clips are designed to allow you to zip tie the cable to the lighting mounts and then run it through the actual clip piece into the T-slot for cleaner routing. The LED strips just stick directly on. I recommend purchasing the waterproof ones even if you are not worried about water exposure, as they give the final part amore finished look and only cost a few pennies more.
