Z Ballscrews and TAZ X Carriage for AO-10x and Mendelmax Printers

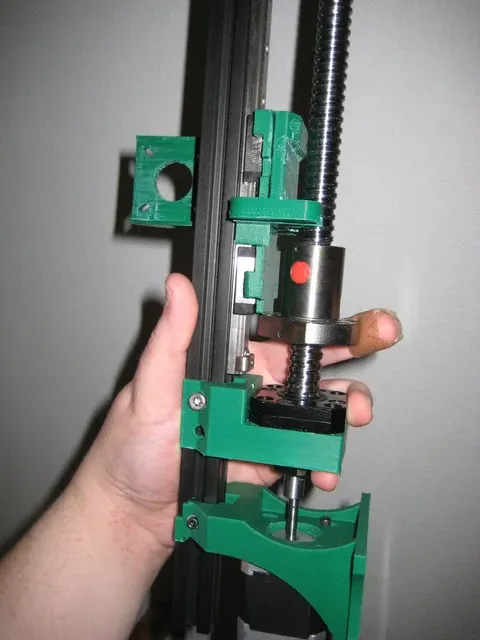

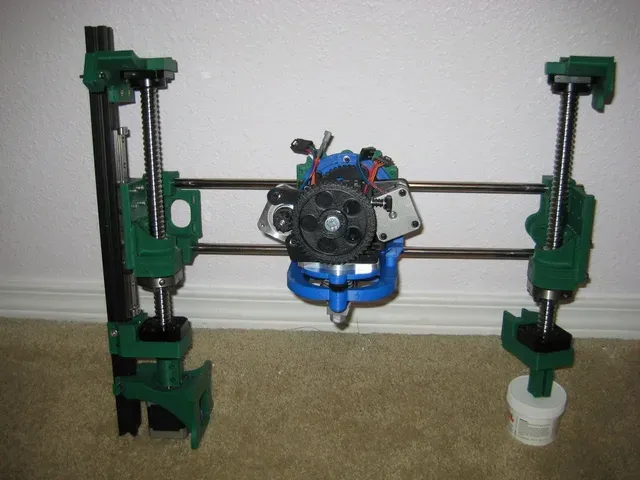

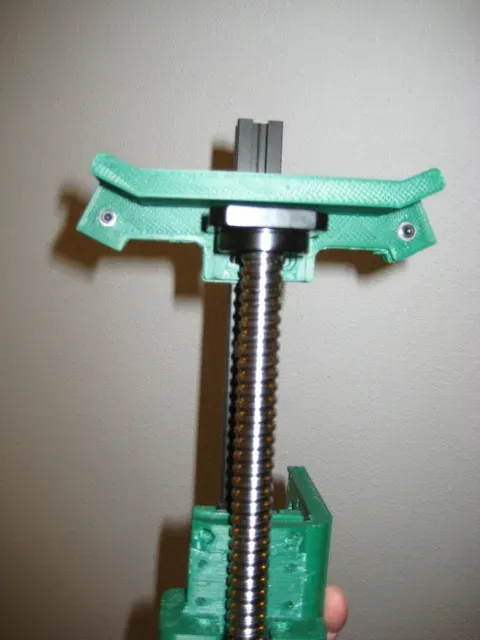

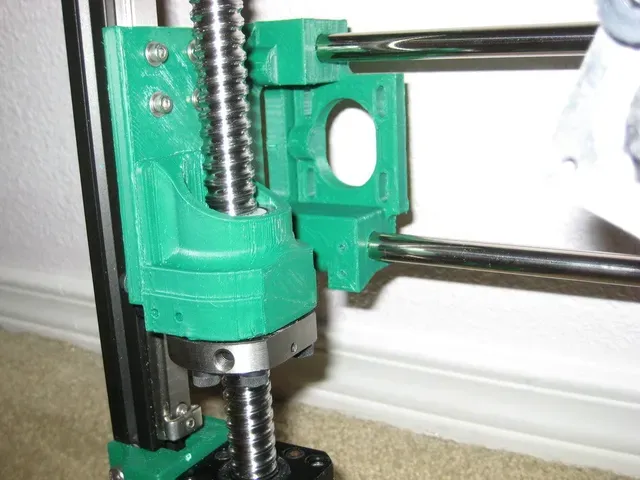

This project expands on my previous Linear Z Rail for AO-10x project to incorporate a pair of Z Ballscrews, 10mm X rods, and the Taz 4 X Carriage assembly, allowing the AO-10x Series printers to utilize newer toolheads, up to and including the dual extruder. Before starting this, please ensure you have all the prerequisites of the AO-10x Linear Z rail project completed. You will reuse the Z motor mounts, and portions of the top Z railmount assemblies in this project. Those files have been included for convenience, but the instructions assume you have already completed that project.

You will also need several Aelph Objects / Lulzbot files which are not mine. I have linked to those open source files for convenience but I cannot upload them here. Those files may be found at:m http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/TAZ\_printers/ with specific links on the instructions page.

Ballscrews are not inexpensive, but this should be the ultimate in precision upgrades for your printer. She may not print a whole basketball, but you’ll be able to print a really detailed softball!

Development thread is here: https://forum.lulzbot.com/viewtopic.php?f=16&t=654&p=6754#p6754

Print instructions

Category: 3D Printer Parts Summary

This project expands on my previous Linear Z Rail for AO-10x project to incorporate a pair of Z Ballscrews, 10mm X rods, and the Taz 4 X Carriage assembly, allowing the AO-10x Series printers to utilize newer toolheads, up to and including the dual extruder. Before starting this, please ensure you have all the prerequisites of the AO-10x Linear Z rail project completed. You will reuse the Z motor mounts, and portions of the top Z railmount assemblies in this project. Those files have been included for convenience, but the instructions assume you have already completed that project.

You will also need several Aelph Objects / Lulzbot files which are not mine. I have linked to those open source files for convenience but I cannot upload them here. Those files may be found at:m http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/TAZ\_printers/ with specific links on the instructions page.

Ballscrews are not inexpensive, but this should be the ultimate in precision upgrades for your printer. She may not print a whole basketball, but you’ll be able to print a really detailed softball!

Development thread is here: https://forum.lulzbot.com/viewtopic.php?f=16&t=654&p=6754#p6754

Instructions

Parts needed:

One Micrometer Head http://ecatalog.mitutoyo.com/Micrometer-Heads-Series-148-Fine-Spindle-Feeding-of-01mmrev-C1548.aspx

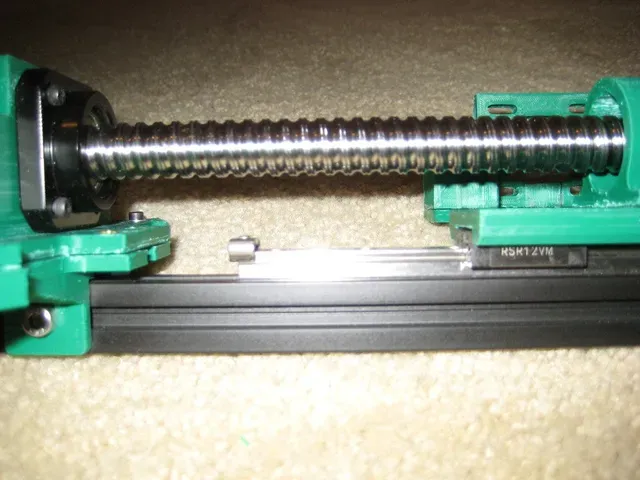

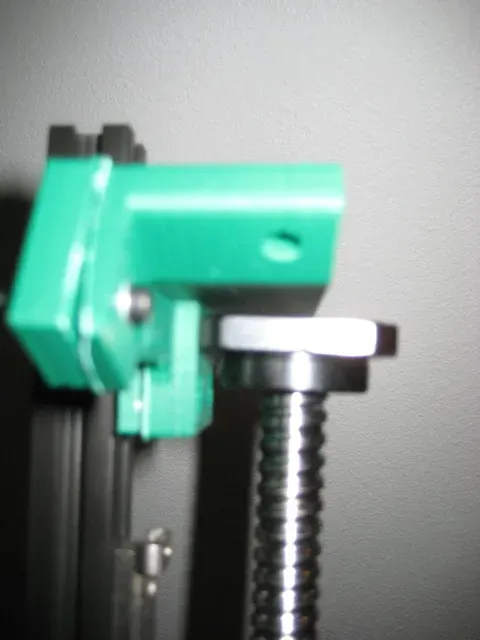

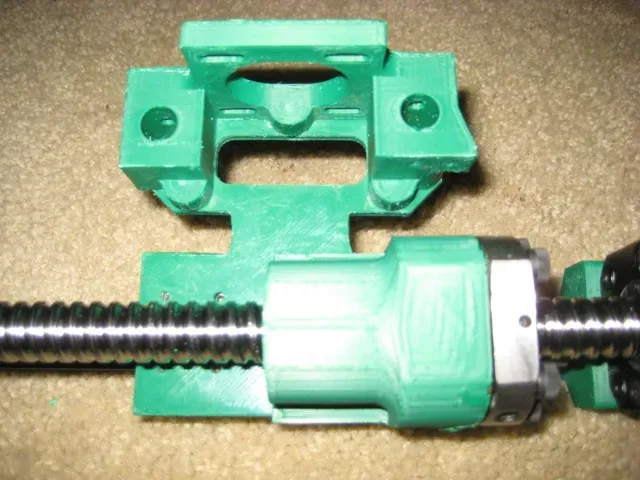

300mm SFU1605 ballscrew with BK12 and BF12 pillow blocks (as found on Ebay)

Assorted heat set inserts for M3 and M5 threads (Mcmaster carr)

Assorted M3 and M5 bolts and washers.

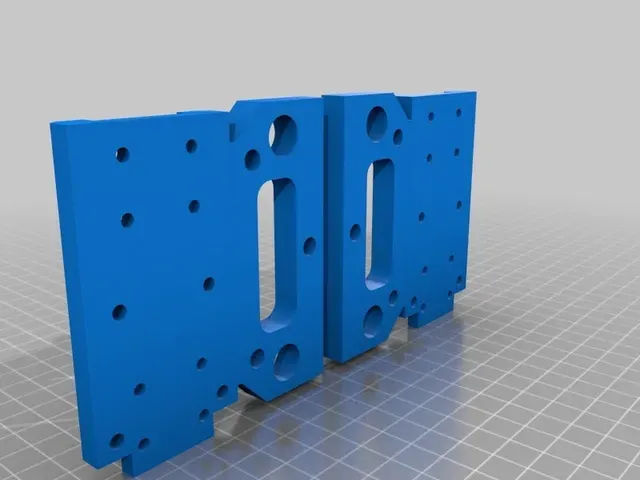

Additional printed parts needed:

http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/TAZ\_printers/

http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/TAZ\_printers/x\_ilder/x\_idler\_v2.3.stl

http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/AO\_printers/bearing\_holder/bearing\_holder\_v1.1.b.stl

http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/AO\_printers/double\_bearing\_holder/double\_bearing\_holder-2.0.stl

http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/AO\_printers/extruder\_mount/extruder\_mount-1.1.1.stl

http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/AO\_printers/x\_carriage\_guide/x\_carriage\_guide-1.0.stl

http://download.lulzbot.com/TAZ/4.0/production\_parts/printed\_parts/TAZ\_printers/x\_carriage/x\_carriage\_v2.0.STL

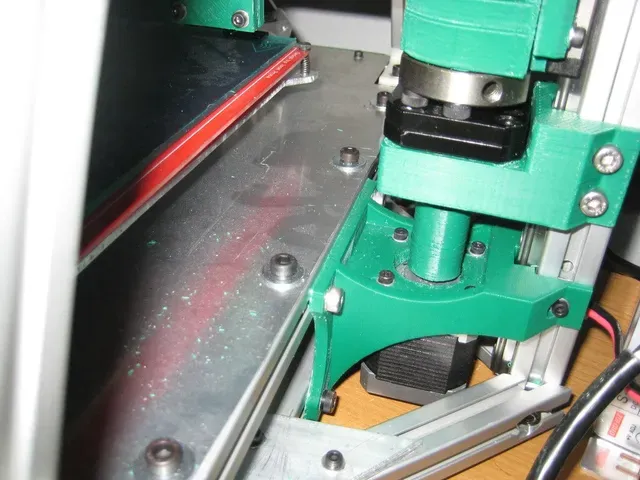

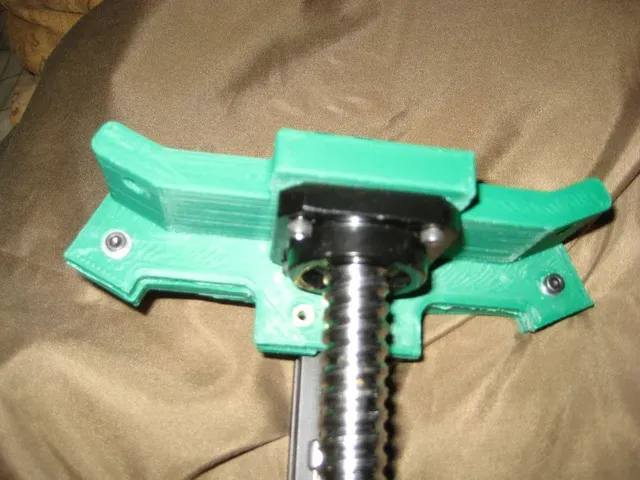

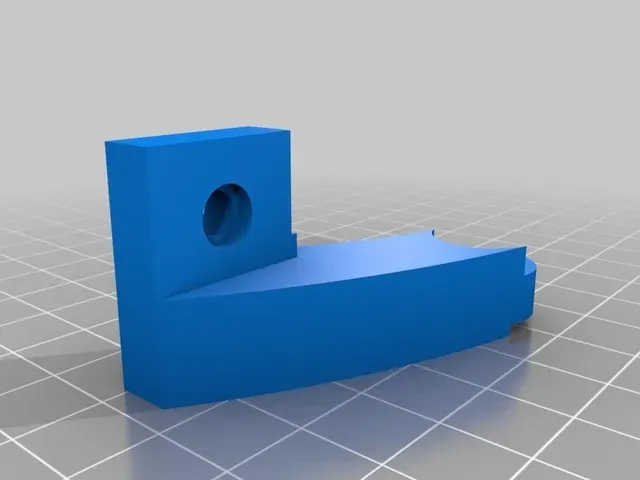

This is a very intensive modification. Please only attempt this if you are very experienced in 3d printer frame upgrades and modifications. Everything except the Z endstop will print without support. Add heatset inserts to the ballscrew mounts and X motor and idler pieces as needed, also the X carriage.
