140mm Fan To 100mm Pipe Adaptors

🟩 🟦 🟦 🟪 🟥 🟧 🟨

Design

These items are made to fit to standard 140mm fans commonly made by computer, chassis and rack fan manufacturers to connect to a 100mm flexible ventilation pipe with a clamp.

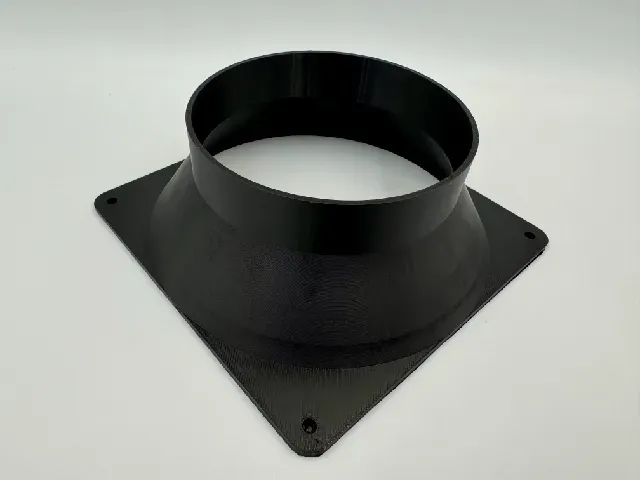

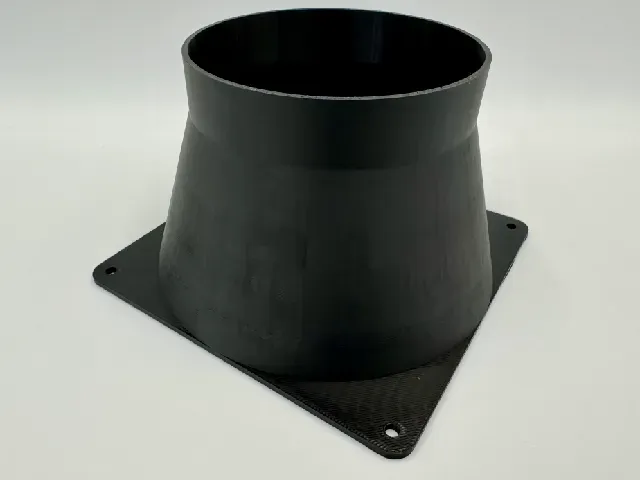

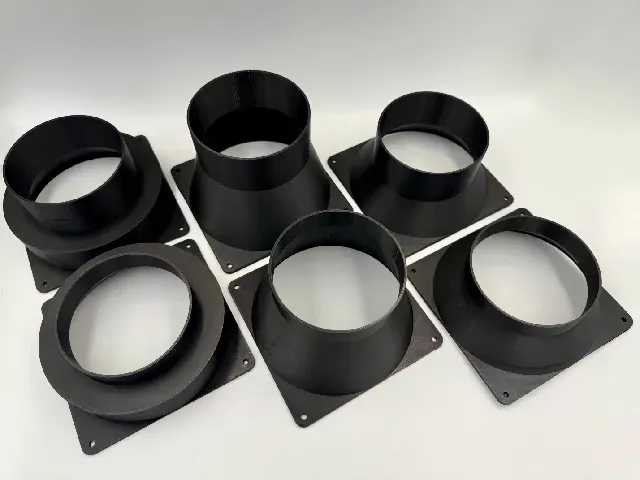

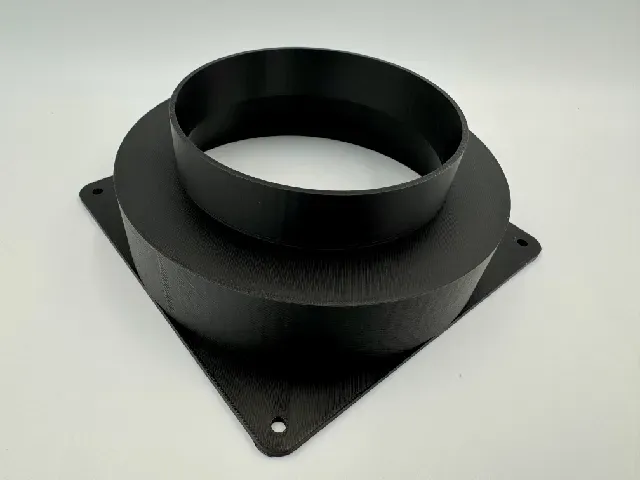

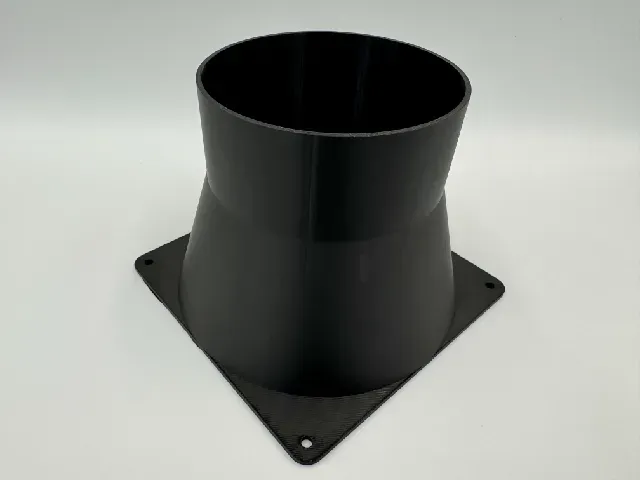

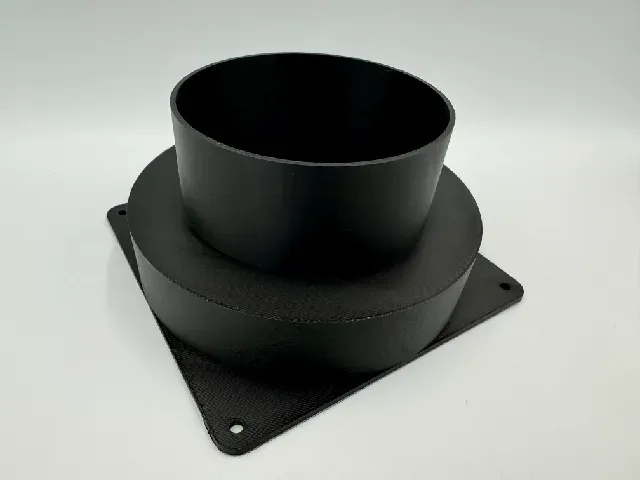

There are two different looks available. The basic versions use much less plastic. The extended version provides a longer graduation from 140 to 100mm which may or may not be better air flow wise.

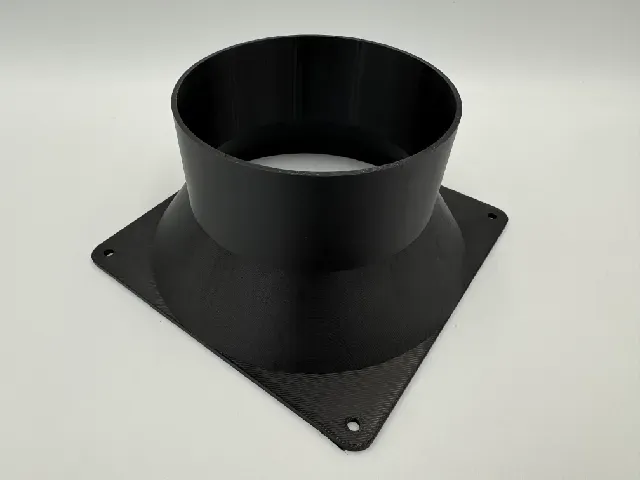

There are also two sizes of each design available. The short variant has a 20mm section to clamp the pipe, the long version has a 40mm section for clamping which is easier especially if you do not cut your pipe exactly evenly, but uses a bit more plastic.

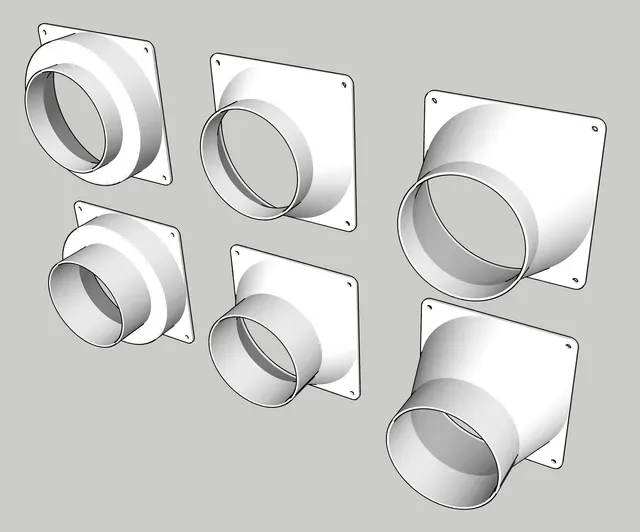

The SketchUp design file for these models is now also available to download!

Printing

These models are designed to be printed with the side that connects to the fan flat on the print bed with no supports. I used PLA which worked fine.

Related Items

There are 1mm and 2mm gasket models available designed match the back of these adaptors to 140mm fans available in this model.

There are also a growing number of related items in a collection for 140mm fans and another for 100mm pipe parts and generally in my list of models and collections.
