120mm Fan To 100mm Pipe 90 Degree Adaptor

🟩 🟦 🟦 🟪 🟥 🟧 🟨

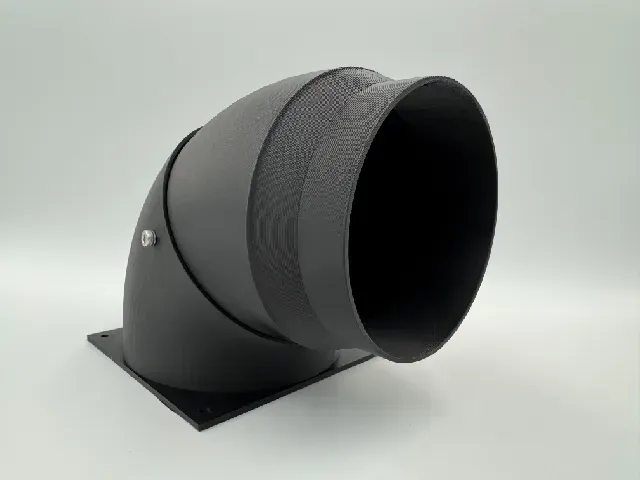

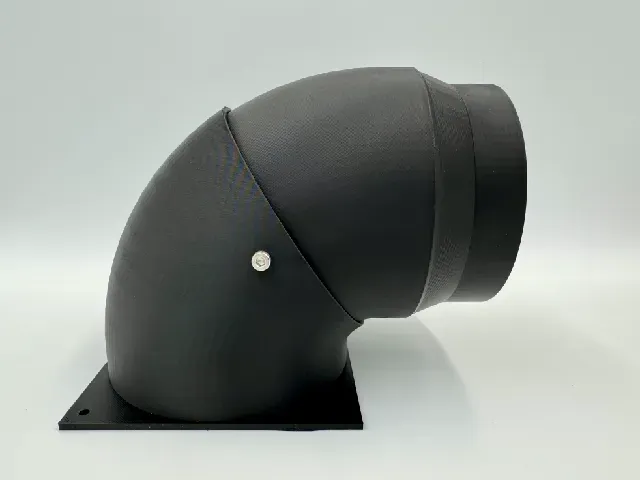

This model has been designed to fit standard 120mm fans supplied by computer/chassis/rack fan manufacturers to feed into a 100mm flexible ventilation pipe with a clamp.

Printing

The two parts have been designed to be printed directly on the print bed with no supports. In the case of the part that attaches to the pipe the 100mm end should be on the print bed. PLA worked fine for me.

Assembly & Mounting

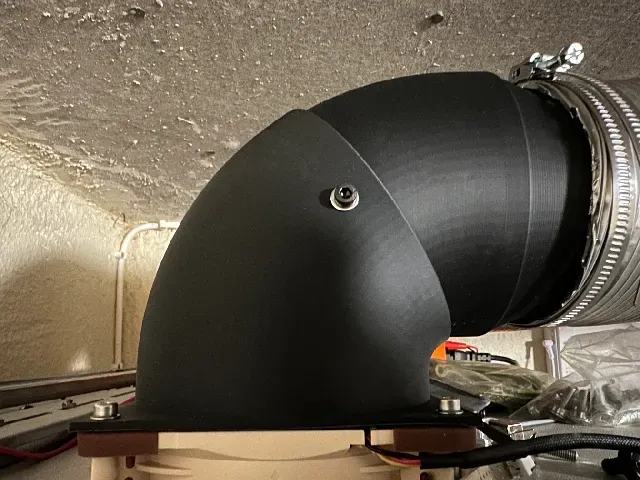

You will need two M4x8 screws and nuts and 4 M4 washers to connect the two parts.

It will not be completely air tight unless you run some sealant around where the two parts connect.

Related Items

There are 1mm and 2mm gasket models available designed match the back of this adaptor to 120mm fans available in this model .

There are also a growing number of related items in a collection for 120mm fans and another for 100mm pipe parts and generally in my list of models and collections.
