Arduino Uno No Screws Snap-fit Case

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STL
  • 165 Likes
  • 1 381 Downloads
  • 25 Makes
  • 37 Comments
  • 4 536 Views

Author:morozgrafix

Published

Download on Printables

Description

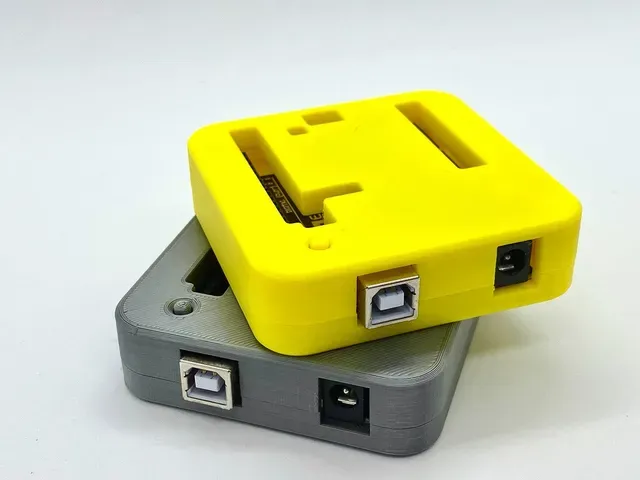

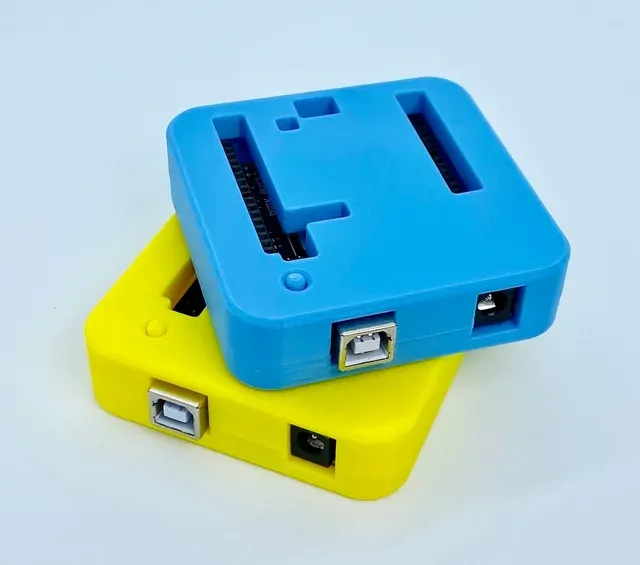

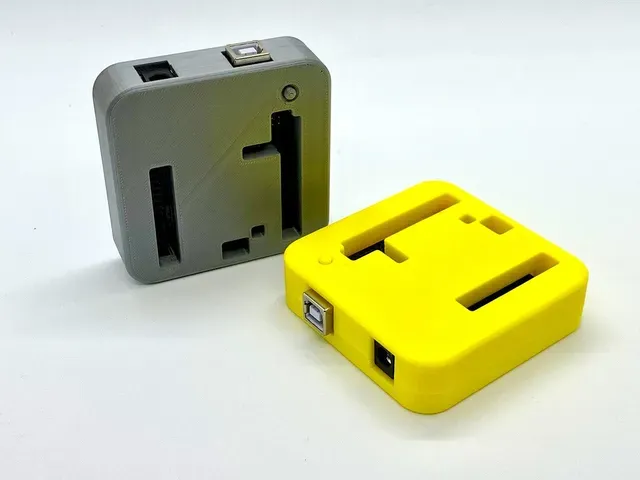

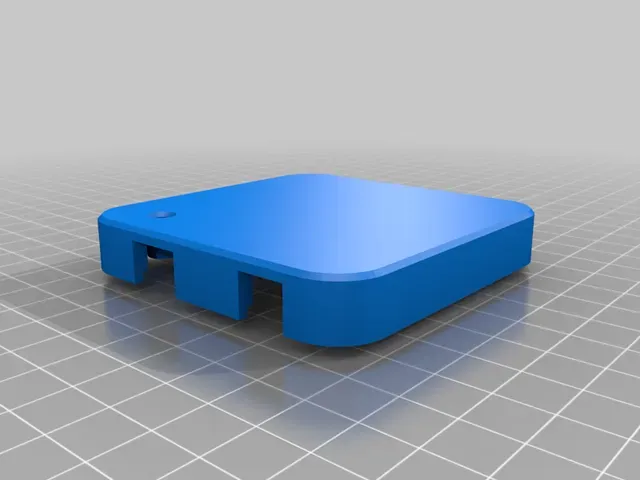

Arduino UNO Snap-fit Case

Based on 3D Printed Case for Arduino by ZygmuntW .

Fully remodeled in Fusion 360 with following changes:

- removed need for self tapping screws

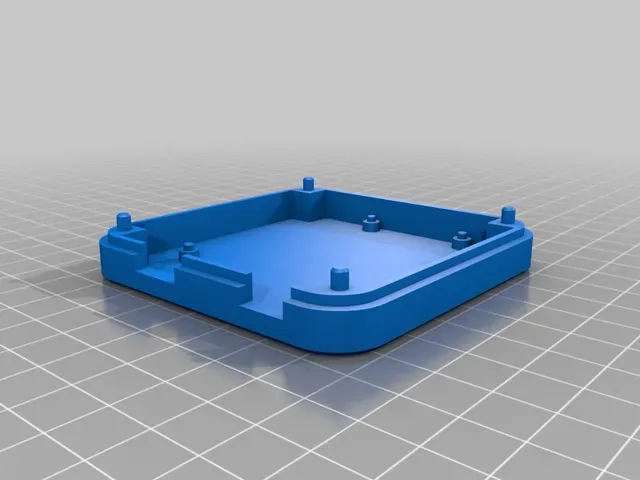

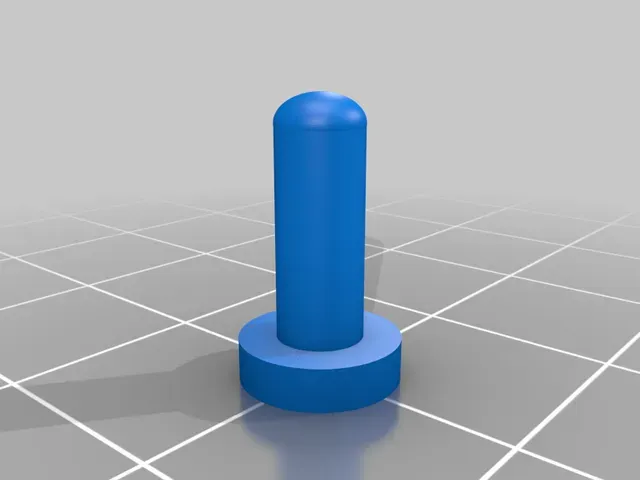

- added snap-fit stands at 4 corners

- added 1mm bevel on the bottom and top of the case (45º no supports needed)

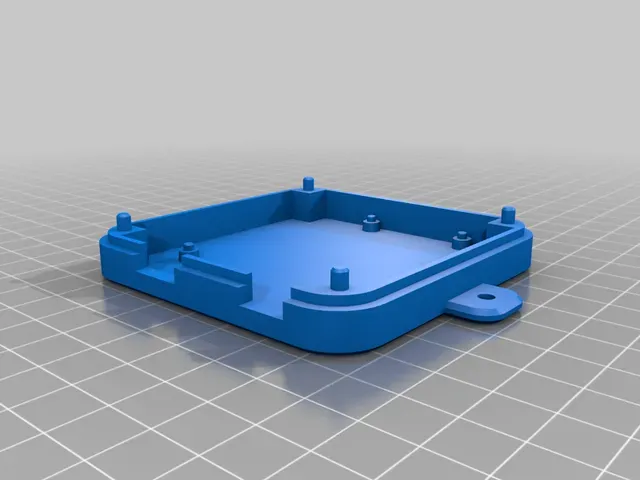

- added a base with mounting option

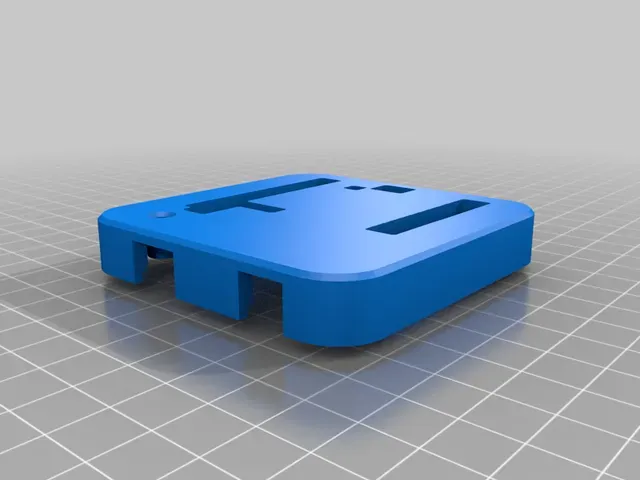

- added solid lid Case fits snuggly without any need for adhesive, if your print is too lose you can add a drop of superglue or other glue appropriate for your print material.

Print Settings

Printer Brand:

Prusa

Printer: i3 MK3

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 15%

Filament:

Prusament PLA Silver

Category: Electronics

Tags

casearduinosnapfitarduinocasethingiversearduinounoarduinobox
