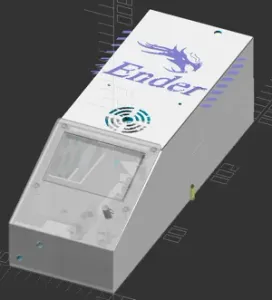

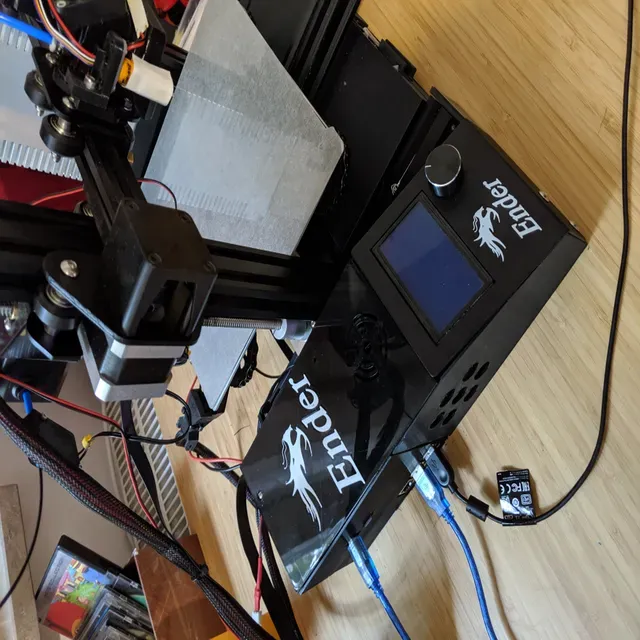

This is a 3D printable control box to replace the mainboard enclosure. This enclosure contains:

- A Raspberry Pi 3B for running OctoPrint, - A BigTreeTech SKR 1.3 main board , - (optional) A Google AIY Audio Hat with Speaker and microphone, - 2 LM2596 Step down converter for providing 12V for the lights and 5V for the raspberry Pi, - 3 5V relay switch modules controlling the printer, the lights and a fan for the raspberry Pi. This installation is controlled using an OctoPrint plugin available at https://github.com/damienmg/OctoPrint-ControlBox . Cooling

Cooling is done with http://www.thingiverse.com/thing:3576392 .

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

15%

Filament: SUNLU PLA+ Black grey

Notes:

Supports are integrated, no need to add them. If you wish to print with your own support, use the "\_NO\_SUPPORT" variation of the files.

Source

Sources

This is totally opensource, with the source file available on GitHub .
