LCD Display Mount for Creality CR-10

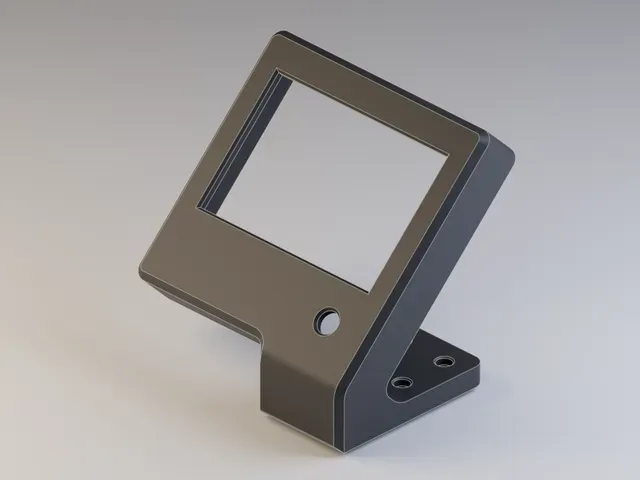

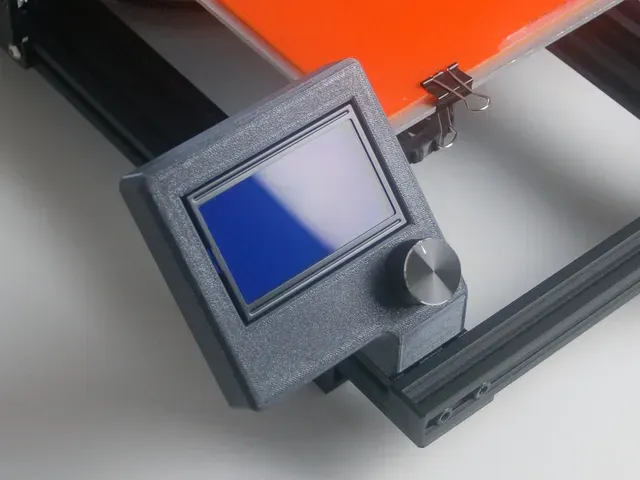

This display mount attaches directly to the 2020 extrusion profiles of the Creality CR-10. It holds the usual 12864-type LCD, if you want to convert the classic CR-10 into a boxless version.

Parts needed:

- 4x M3x10 hex socket screw - 4x M3 T-Slot nut for 2020 extrusion profiles - 4x M3x8 hex socket screw (you can use the original mounting screws) - 4x M3x4x5 threaded inserts (use of a soldering iron required)

Print Settings

Rafts:

No

Supports:

No

Resolution:

0.3 mm

Infill:

15%

Filament:

Generic PETG

Notes:

A brim might help with adhesion/warping.

Post-Printing

Threaded inserts

Use a soldering iron (~200 °C) to press the threaded inserts into the back of the mount.

Assembly

It is recommended to mount the holder first to the extrusion profiles in the front of the CR-10 and add the display afterwards (the screws are much easier to reach this way).
