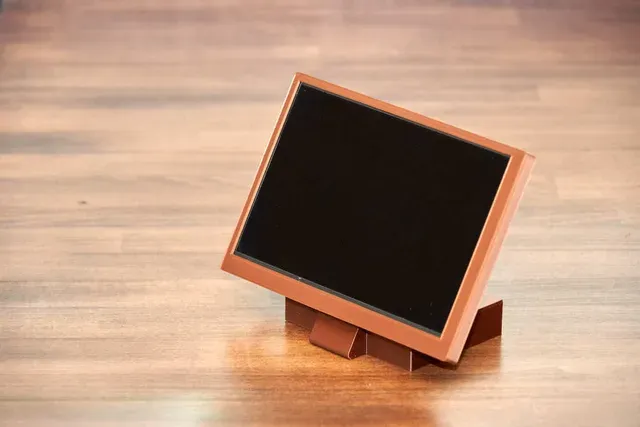

7" HDMI LCD Desktop Case with Pi mount

This is a quick snap-on style 60-degree case for 7-inch HDMI/VGA LCD module that can take up to 1920x1080 resolution (with auto scaling - the native resolution is 1280x800).

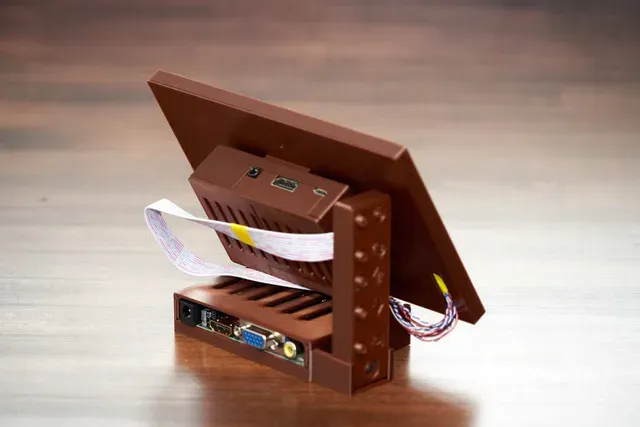

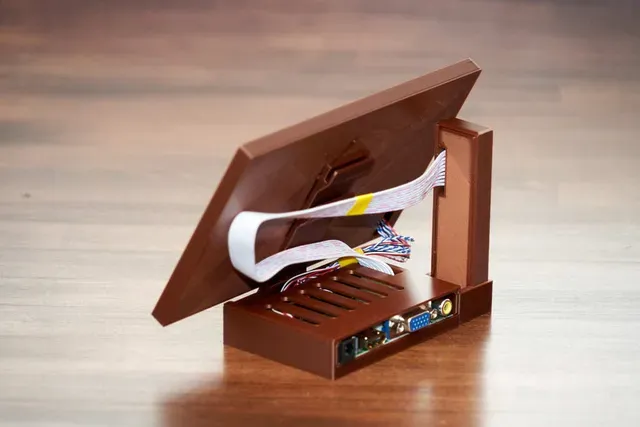

You can attach a compatible Pi case on the back side as shown in the photo. It is the same case posted here.

Desktop Pi mounts for HDMI LCD (45-degree/60-degree)

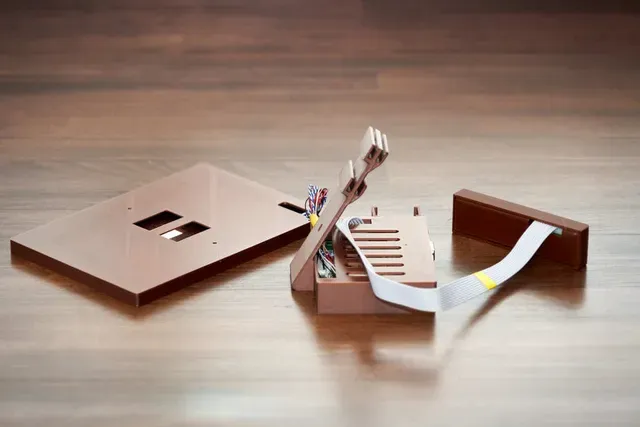

No screw is needed for assembly, but there are screw holes just in case you want them.

- 4x M2 4mm (or #2 1/4") wood screws for the driver board - 2x M2 4mm (or #2 1/4") wood screws for the button board 1x M3 6mm machine screw to secure the mount and the panel

### My similar HDMI LCD cases:

Waveshare 7inch HDMI LCD (H) Case

Waveshare 7inch HDMI LCD (C) Case

EYEWINK 7inch HDMI Display-C Case

Elecrow 5inch HDMI Display-B Case

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

20%

Filament: Hatchbox/Amazon PLA

Category: Computer
