Desktop Pi3B/4B/5B mount for HDMI LCD

(Update 3/27/2024) Added Pi5B Bottom/Lid.

(Update 11/14/2019) Added Pi4B Lid.

(Update 4/12/2019) Uploaded IGES model files for easier remix.

(UPDATE 3.28.2019) Pi3B Case: improved structural strength by slightly thicker walls.

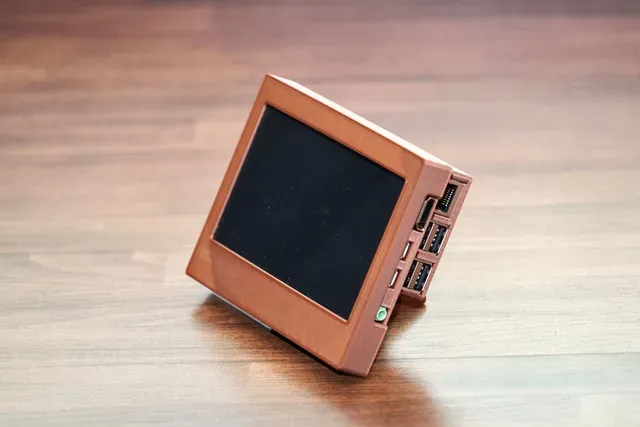

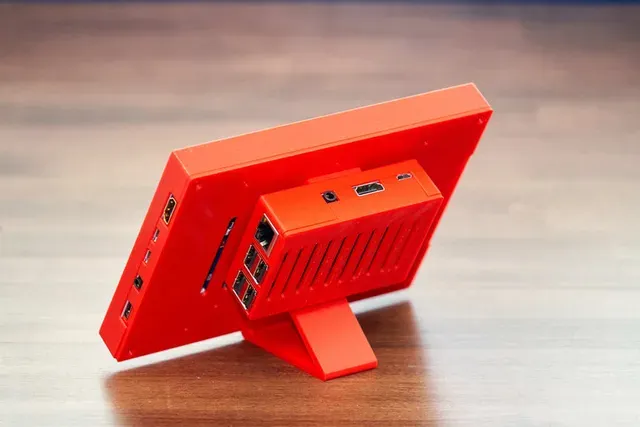

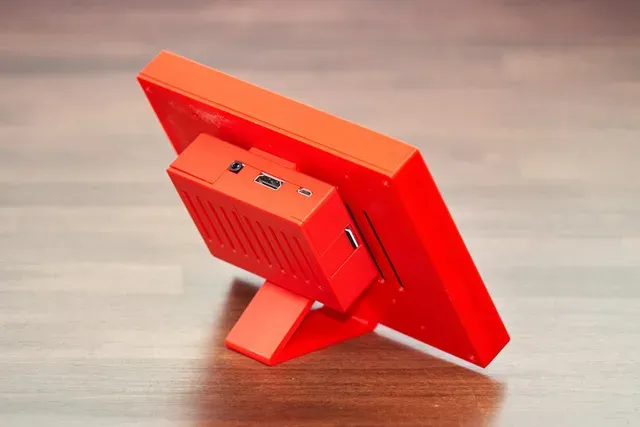

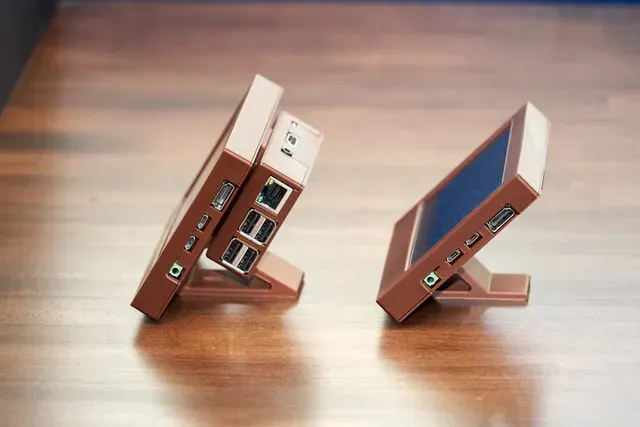

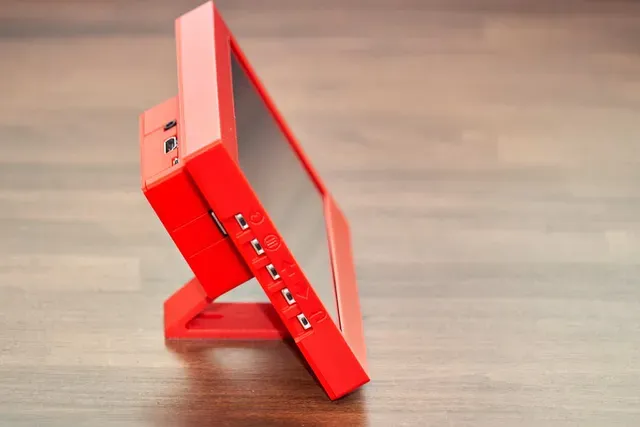

Desktop mounts designed for my 7-inch/5-inch HDMI LCD cases (see below) and Raspberry Pi 3B/4B/5B.

No screw is needed for assembly. If you want to secure the mount to the panel, 1x M3 6mm machine screw works fine.

Compatible HDMI LCD cases:

Waveshare 7inch HDMI LCD (H) Case

Waveshare 7inch HDMI LCD (C) Case

EYEWINK 7inch HDMI Display-C Case

Elecrow 5inch HDMI Display-B Case

Model Files

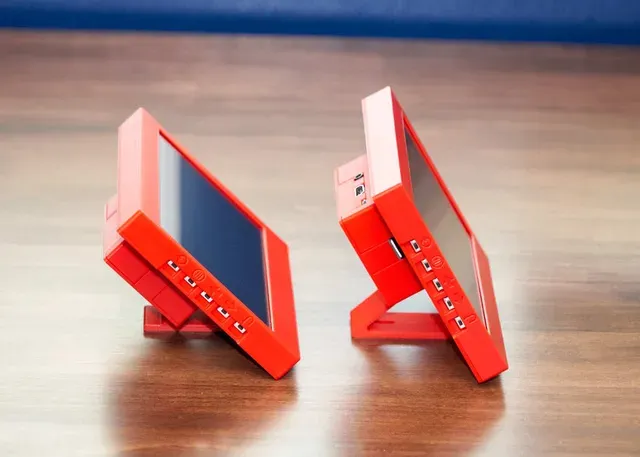

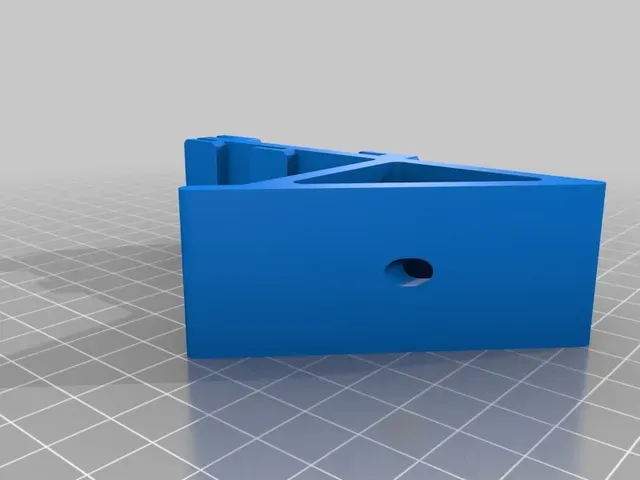

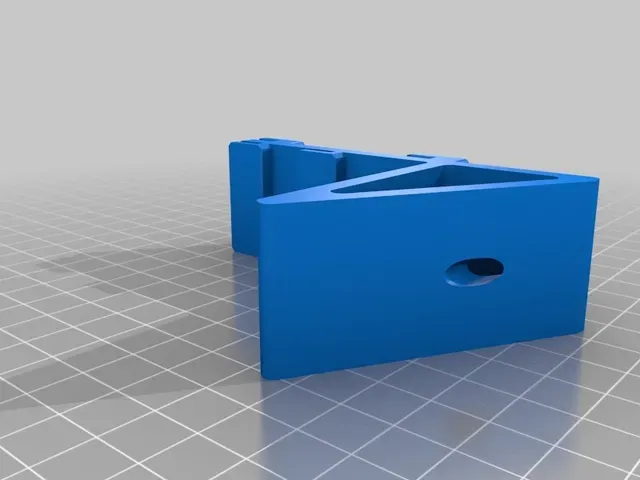

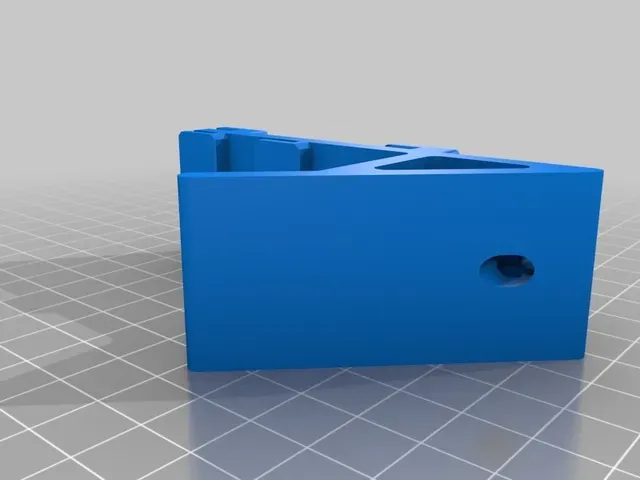

There are 45-degree and 60-degree versions as follows. Please print one of them depending on your preference.

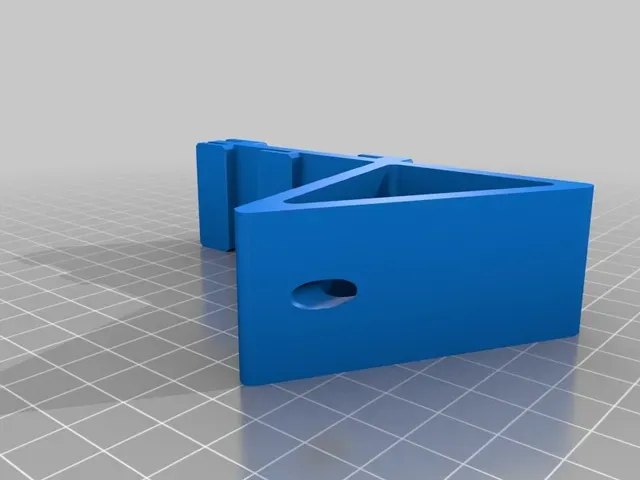

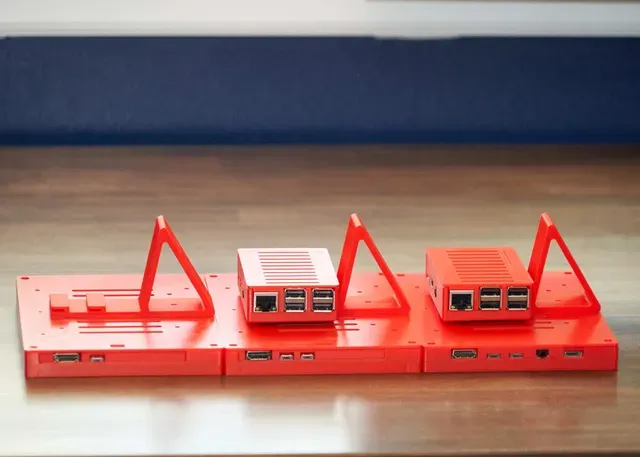

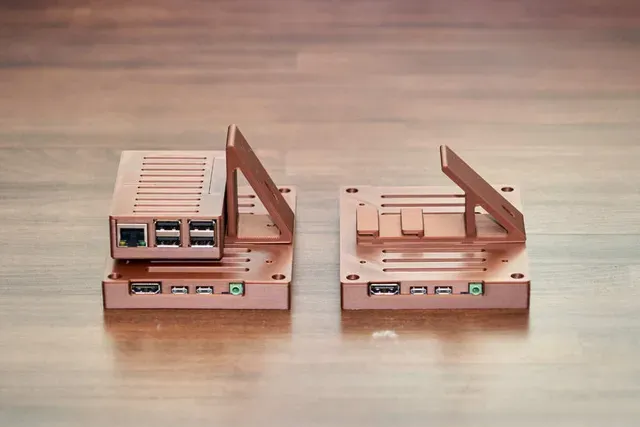

- HDMI7andPiDualHook45: For 7-inch HDMI (C)/(H)/-C, 45-degree - HDMI7andPiDualHook60: For 7-inch HDMI (C)/(H)/-C, 60-degree - HDMI5andPiDualHook45: For 5-inch HDMI -B, 45-degree - HDMI5andPiDualHook60: For 5-inch HDMI -B, 60-degree A Pi case consists of following 2 pieces. Please print both.

For Pi5B:

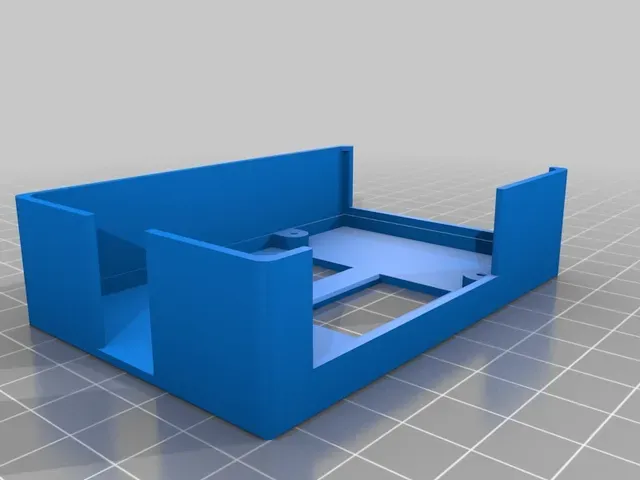

- Pi5B Bottom LCD : (bottom part) - Pi5B Lid: (lid part) For Pi4B:

- Pi3B LCD1: (bottom part - same as Pi3B one) - Pi4B Lid: (lid part) For Pi3B:

- Pi3B LCD1: (bottom part) - Pi3B Lid: (lid part) Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

20%

Filament: Hatchbox/Amazon PLA
