Ramps for Custom Hot Wheels Track System

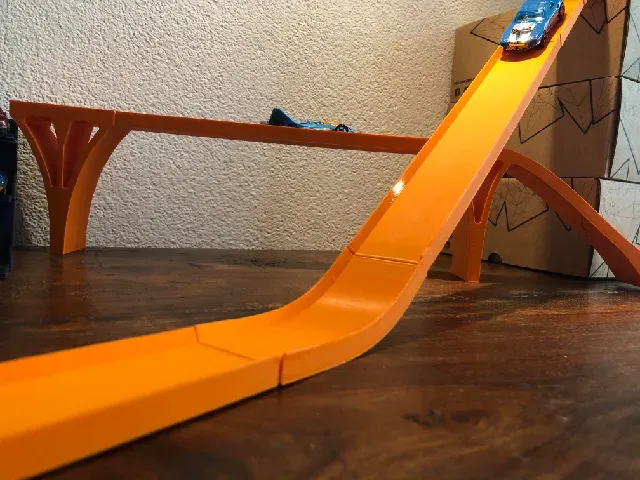

These pieces of road curve your track up or down by 40 degrees. This is ideal for building large drops for your cars you pick up a lot of speed. These parts have the same footprint as the step-250-100 when combined with a 75 mm straight track.

Both parts can be printed sideways at 0.1 mm layer height, but the versions with support can be printed flat as well.

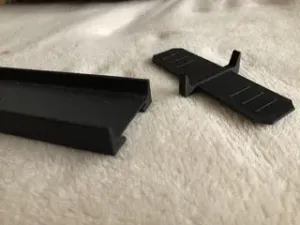

Connector:

PLA works well enough with some trial and error, but PETG is way more durable and easier to use.

Insert them into the slots by putting one corner in the slot, and then pushing the other corner inwards. (see pictures)

You can remove them by pulling straight, but off-center.

It is easier to remove connectors by inserting a screwdriver through the hole and pulling, but this is only necessary when printed in PLA.

To connect two pieces of track together simply insert the connector in one of them, and then fit the other onto it at an angle.

Straight Tracks:

Can be printed flat at 0.2 mm layer height, or sideways at 0.1 mm.

I recommend adding mouse ears or brim to avoid warping.

Slicing settings (Prusaslicer, optional):

0.1 mm layer height

0.2 mm first layer

2 perimeters

10% support cubic infill

Combine infill every 3 layers
