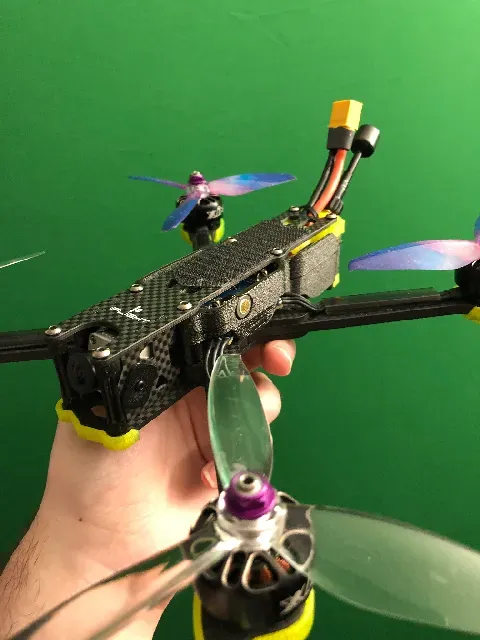

iFlight Nazgul V5 Side Plates — Image 2 of 4

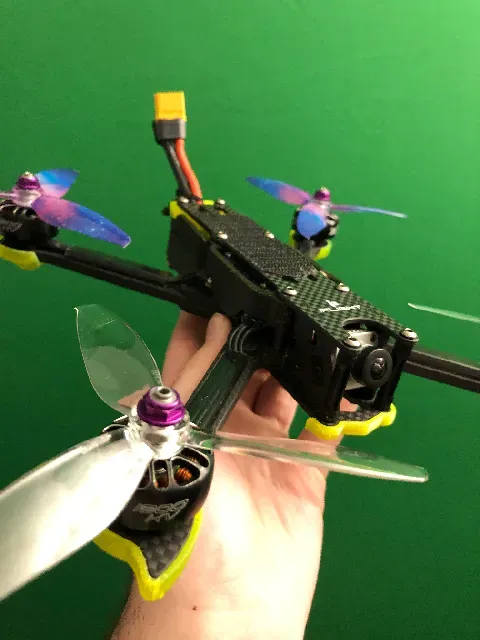

iFlight Nazgul V5 Side Plates — Image 3 of 4

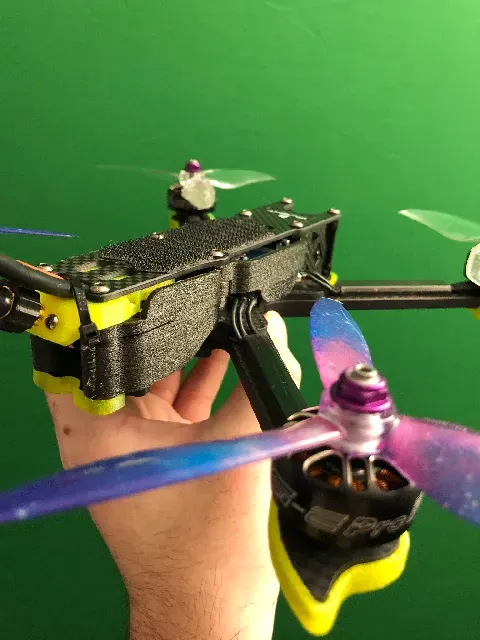

iFlight Nazgul V5 Side Plates — Image 4 of 4
3D model · Printables

iFlight Nazgul V5 Side Plates

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLGCODE
  • 30 Likes
  • 168 Downloads
  • 1 Makes
  • 2 Comments
  • 2 415 Views

Author:Coded

Published

Download on Printables

Description

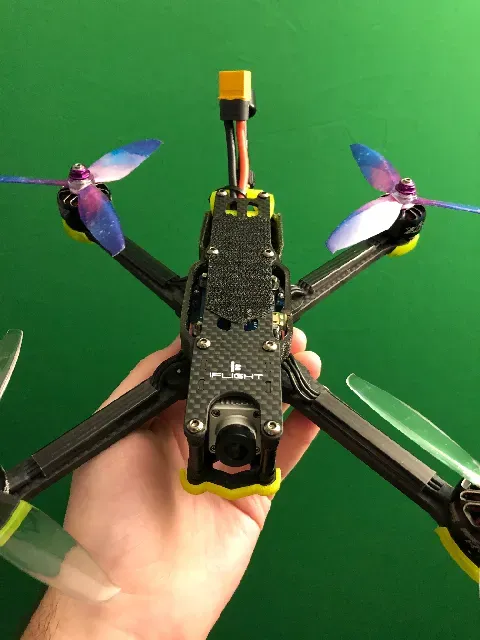

Side plates for the iFlight Nazgul V5. Provides a bit more protection to the electronics without adding much weight.

Provides a port to easily insert a magnetic USB cable such as this one: https://www.amazon.com/NetDot-Magnetic-Charging-Transfer-Compatible/dp/B07QDS1WR7/ref=sr_1_10?keywords=magnetic+usb+c+charging+cable+netdot&qid=1639128498&sr=8-10

I highly recommend using some form of flexible filament. I am not sure if the pieces are accurate enough to be printed with PLA or other hard plastics.

To print the right side of the quad print the VTX protector top and bottom, and the FC protector with the port.

For the left side print VTX protector top and bottom, mirror on Y axis, and the FC protector without the port also mirrored on the Y axis.

Print all parts on the flat edge, no supports or anything are required.
