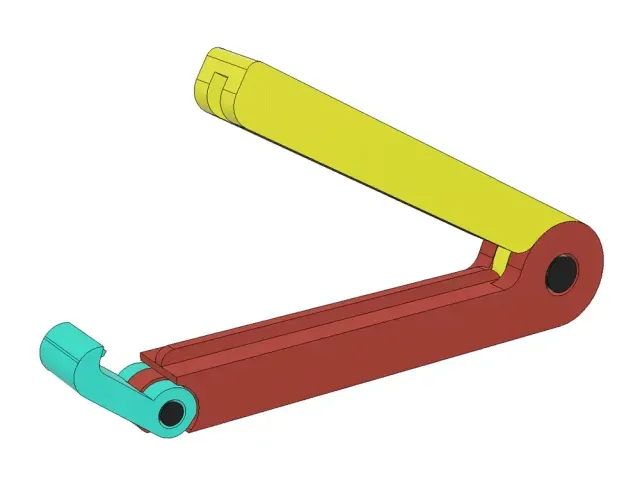

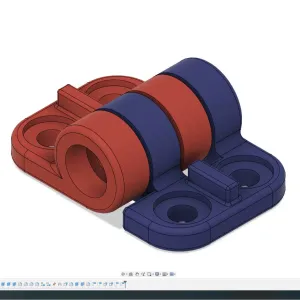

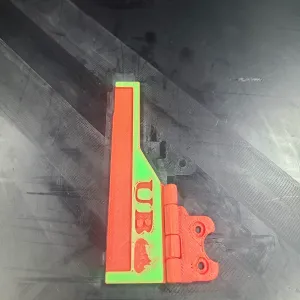

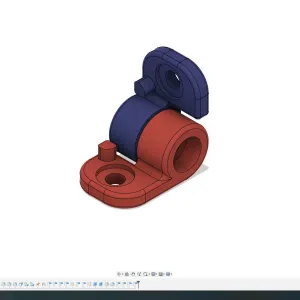

Hinge models range from simple pin-and-socket pivots to generated sets with several sizes and to print-in-place designs where the joint is formed during printing. Door and cover hinges usually include mounting plates or screw holes, while figure pivots focus on a single axis and a small profile. Printer-mounted hinges often combine a hinge with a bracket or sensor holder, so the geometry follows the machine's frame.

Before printing, check the listed pin diameter, clearance between moving parts, and the number of separate pieces. Look at the author's photos of real prints to judge how the joint moves and where supports may be needed. Material and settings matter: a stiff filament can make a thin pin brittle, while a more flexible one may wear differently in repeated motion.

To narrow results, try synonyms such as pivot, pin, knuckle, joint, or axis, and combine them with the object they belong to, like door, enclosure, figure, or printer mount. Related topics include print-in-place mechanisms, ball-and-socket joints, and parametric hinge generators. Adding a size, angle range, or mounting type to the query can separate small figure parts from larger door hardware.
